Trekking electric bike

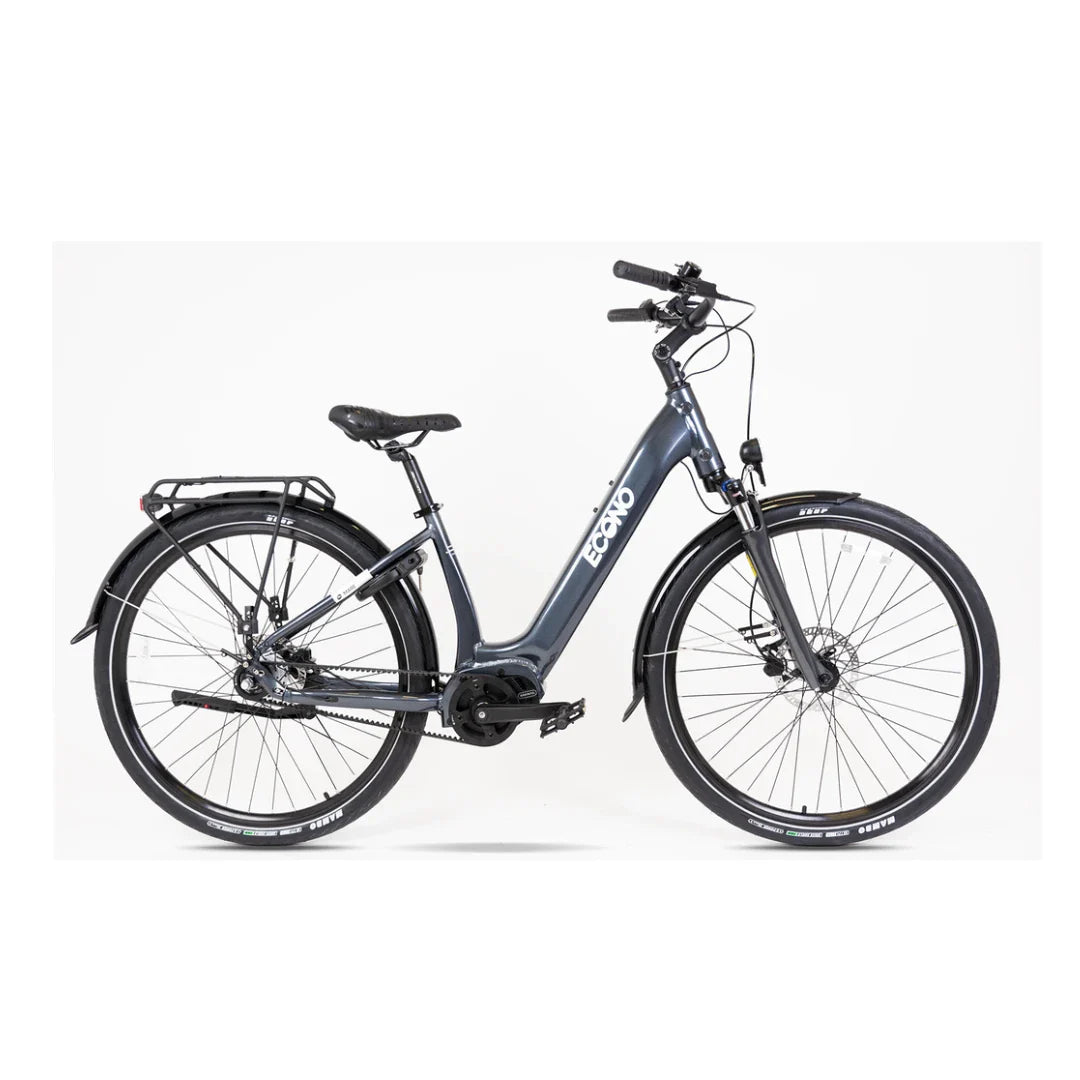

ECONO Mare City EECALK (AUTO)
"Glide through life effortlessly."
Specifications of
ECONO Mare City EECALK (AUTO)
Motor | |
---|---|

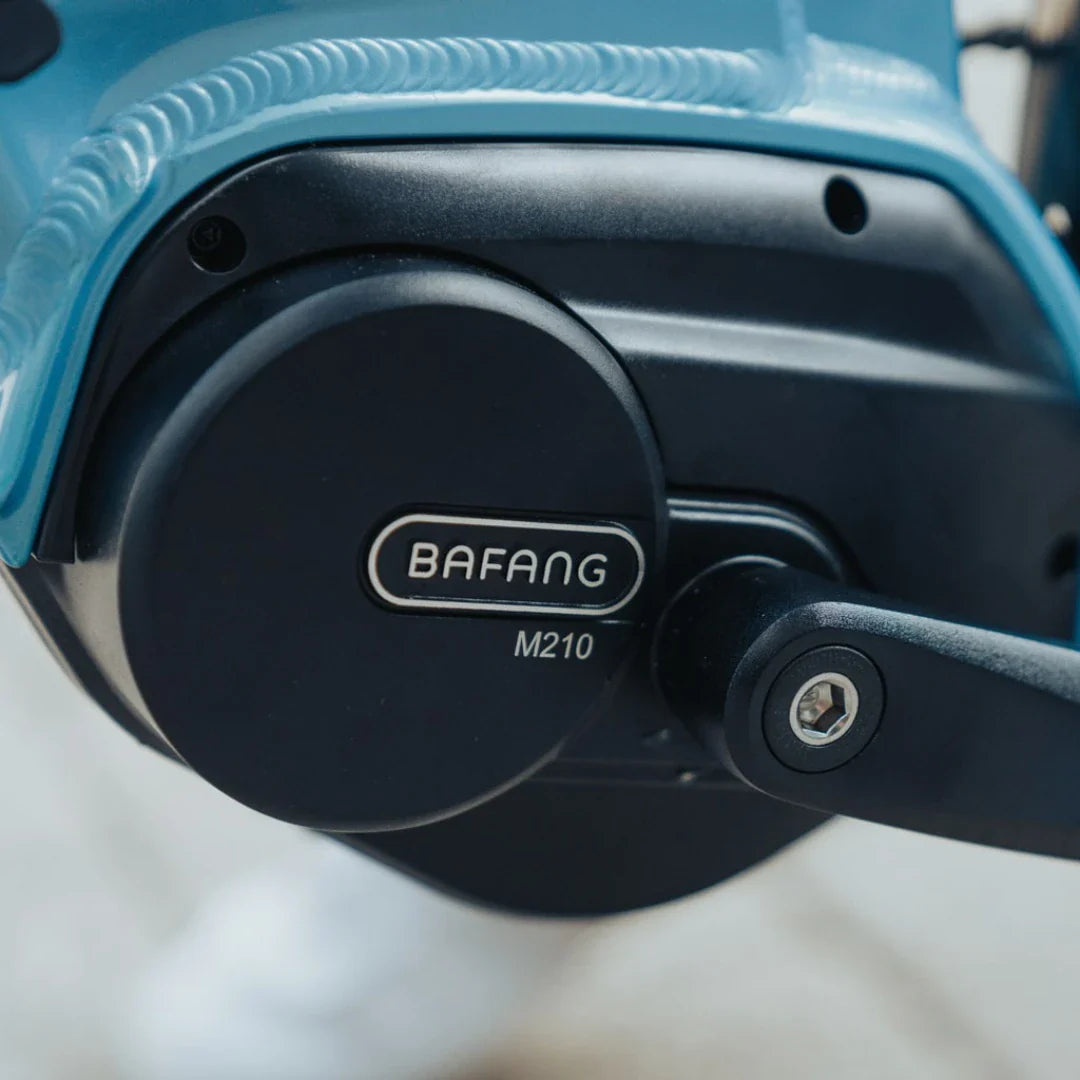

Drivetrain | Central drive |
Nominal Power | 250 W |
Maximum Power | 250 W |
Speed | |
Limited Speed | 25 km/h |
Speed Modes | 3 speed modes |
Maximum Incline Angle | 35° |
Battery | |
Maximum Range | 100 km / 135 km / 160 km |
Battery Capacity | 15 Ah, 20 Ah, 23 Ah |
Battery Voltage | 36 V |
Charging Time | 5-8 hours |
Charger Type | 1x ECONO 36 V 2 A charger (included in 15 Ah version), ECONO 36 V 4 A charger (included in 20 Ah & 23 Ah version) |
Suspension | |
Front Suspension | SR-Suntour 28'' E25 HLO DS, 50mm hydraulic suspension |
Rear Suspension | None |
Brakes | |
Front Brake | Tektro HD-T275 hydraulic disc brakes 180 mm |

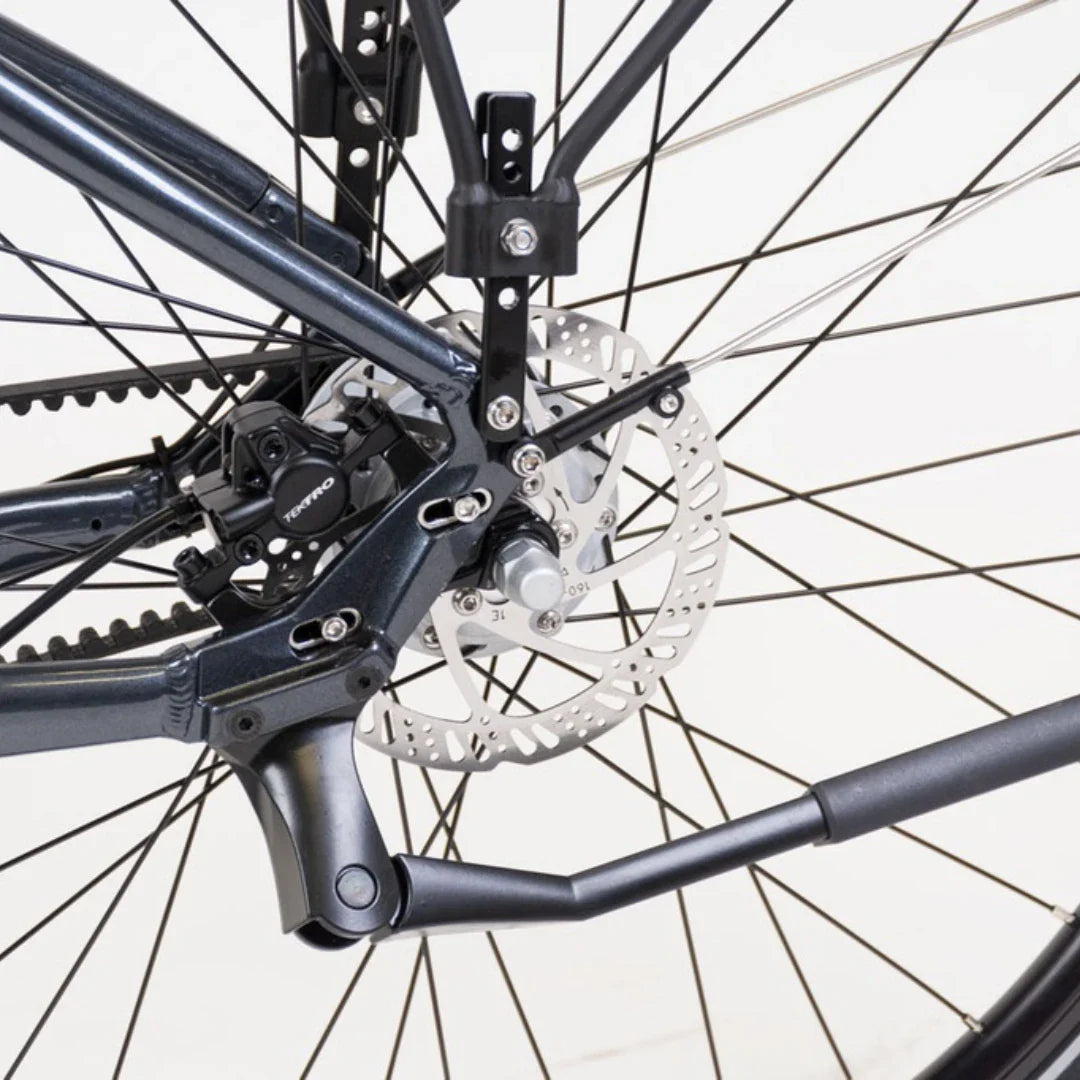

Rear Brake | Tektro HD-T275 hydraulic disc brakes 160 mm |
Tires | |
Tire Type | Air tube |
Front Wheel Size | 28 x 2.0" |
Rear Wheel Size | 28 x 2.0" |
Lighting | |

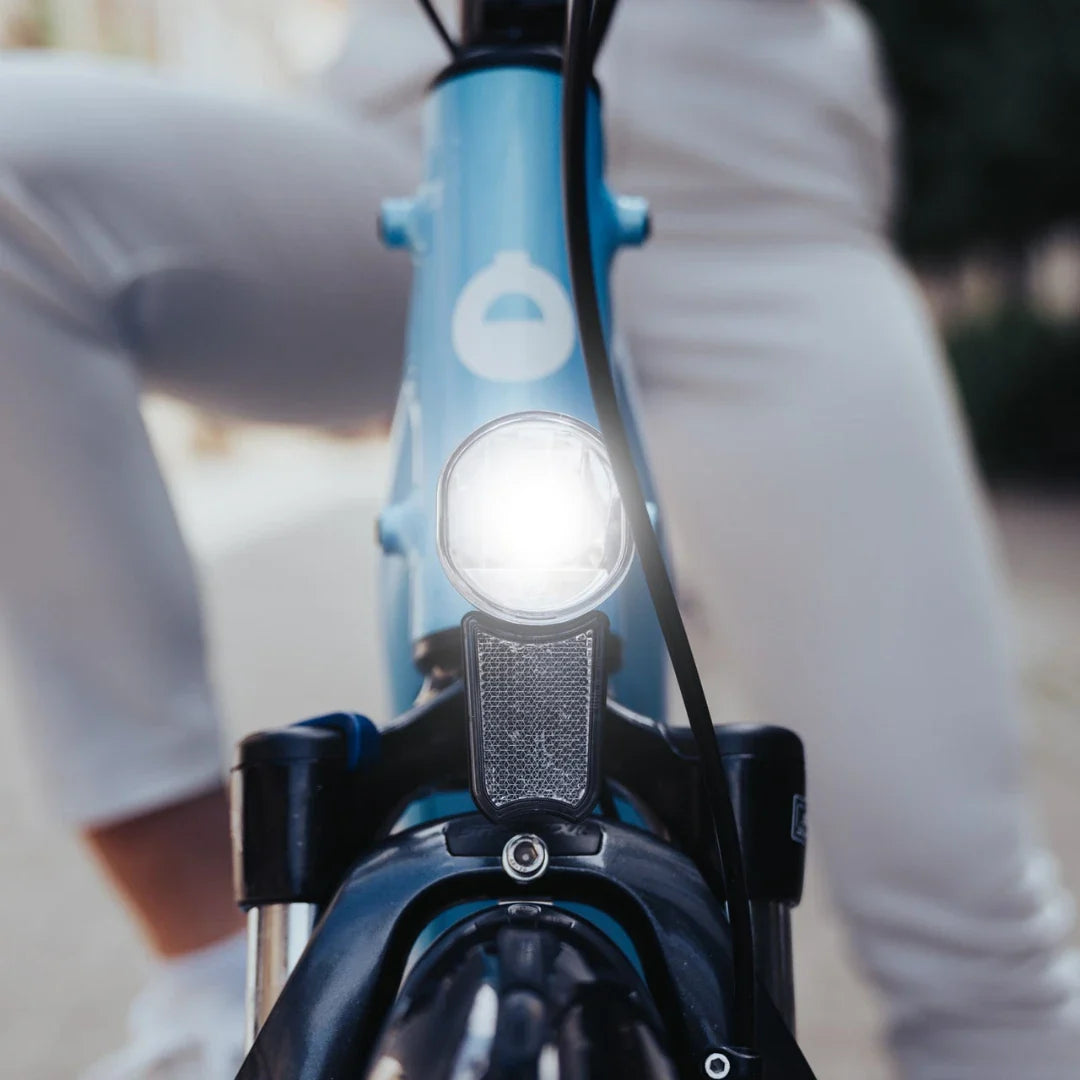

Front and rear LED lights | |
Water Protection | |
IPX5 Water jets (low pressure) | |
Other | |
Recommended Height | 153 - 173 cm (S/M frame), 174 - 185 cm (L frame) |
Net Weight | 26.9 kg |
Load Capacity | 120 kg |
Warranty | 2 years on battery and motor, 3 years on frame, 1 year on non-consumable components |
-
Comfort & Design

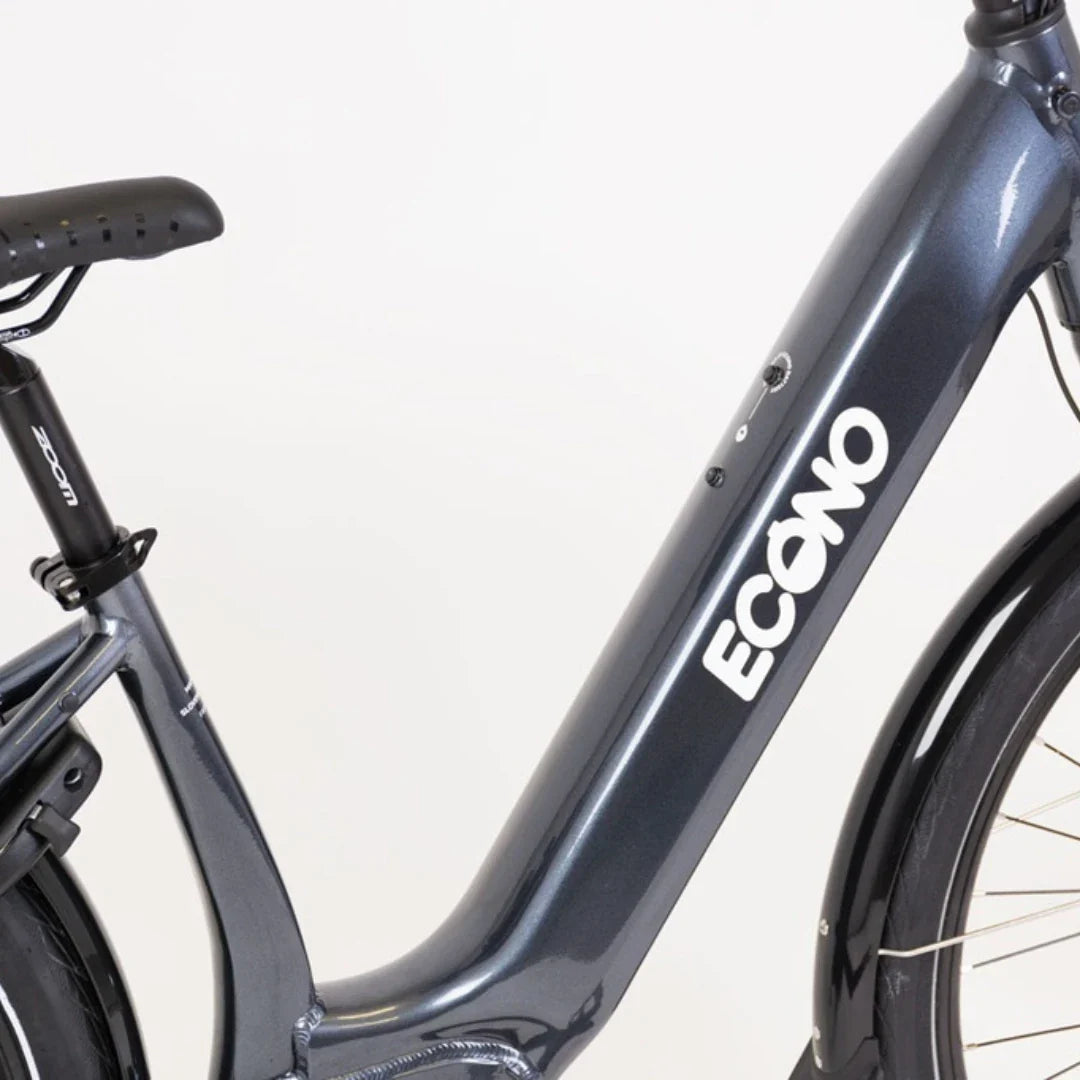

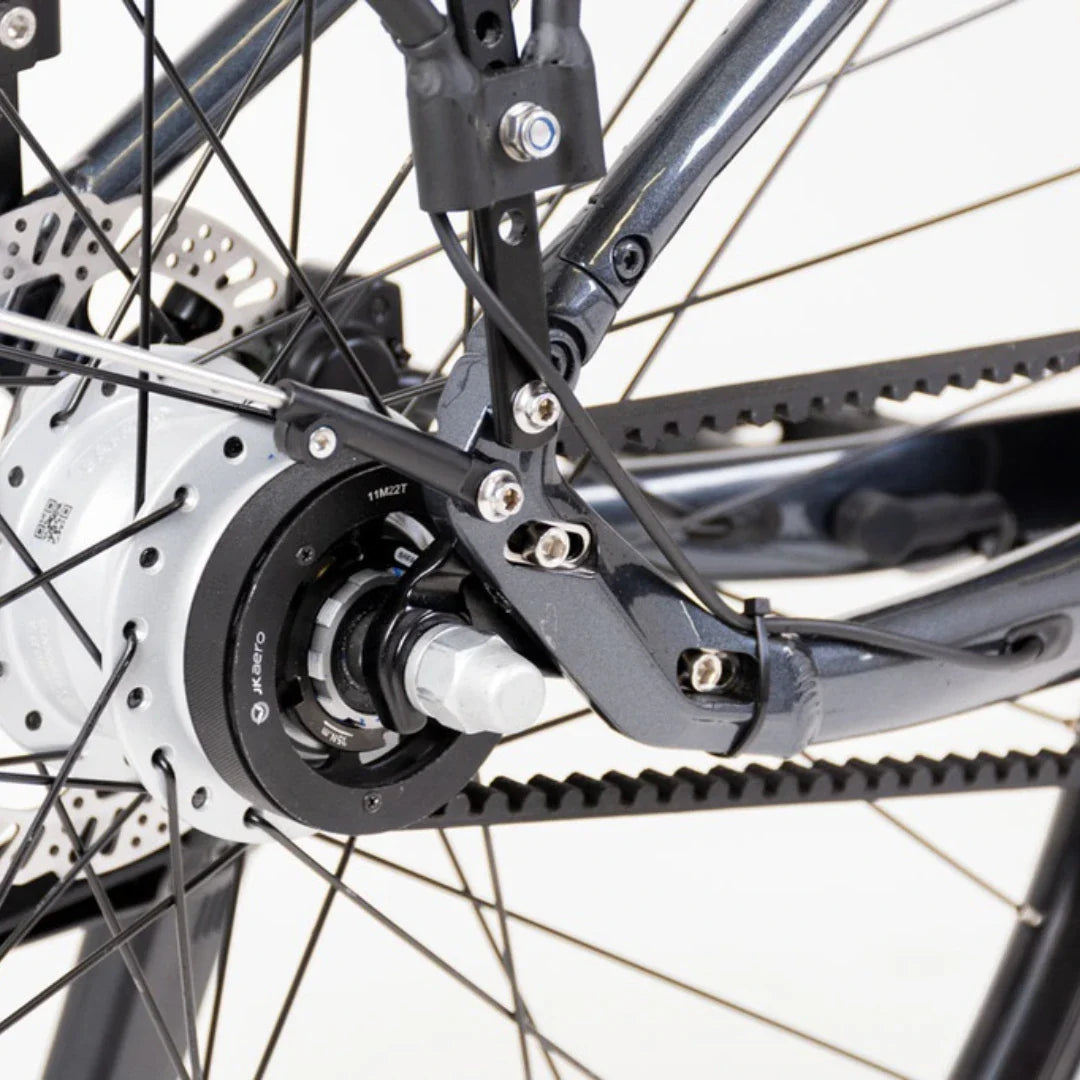

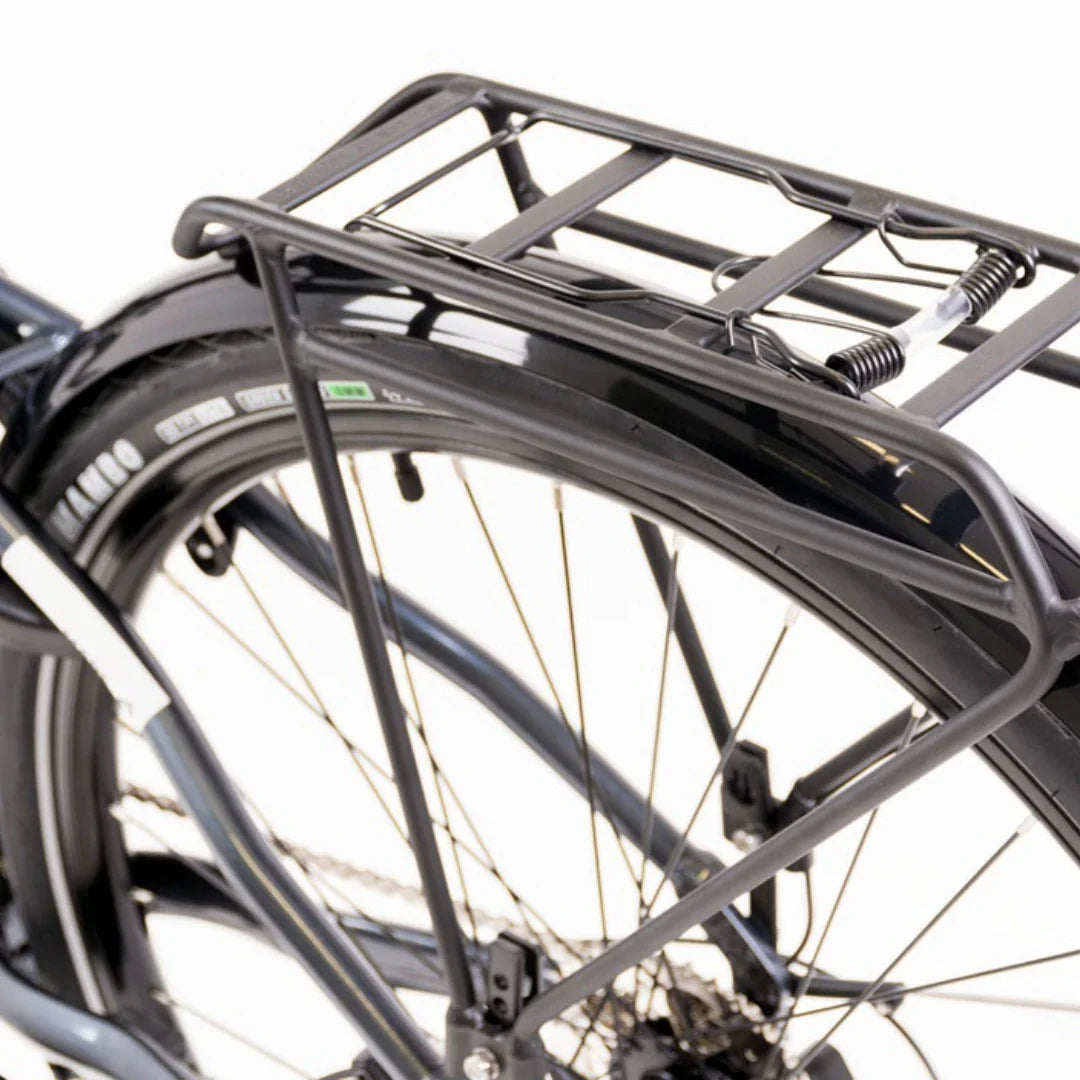

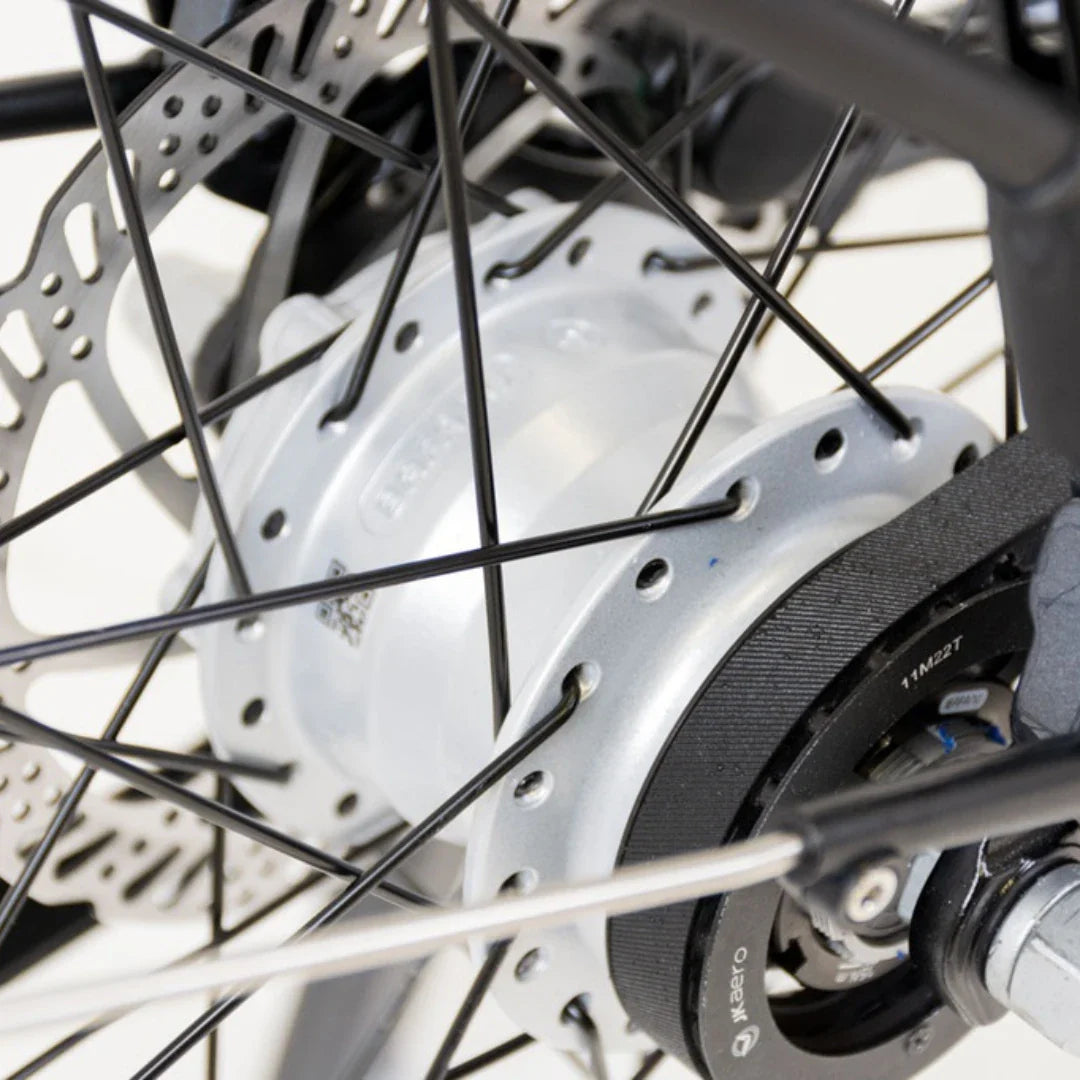

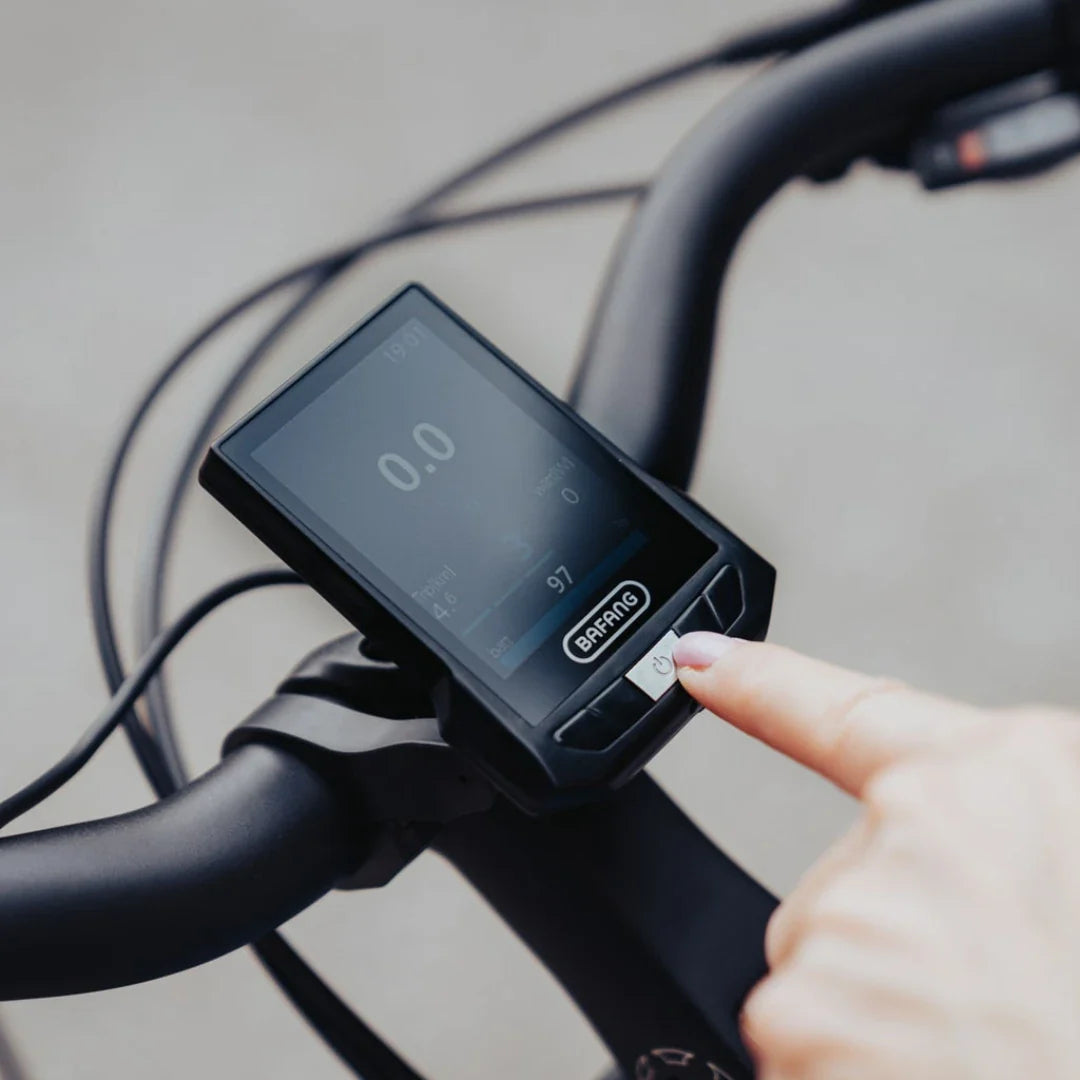

Constructed from 6061 aluminum alloy with advanced hydroforming, the Mare AUTO offers a lightweight yet rigid frame. The belt drive system replaces the conventional chain, providing a silent ride, extended durability, and maintenance-free operation. Its 3-speed automatic gear hub adjusts seamlessly to speed and terrain, ensuring constant pedaling cadence without manual intervention. The M-Wave adjustable stem (0–90°) and ergonomic handlebars support rider-specific fit and posture. The Justek saddle combined with a Zoom seatpost enhances comfort for long rides. A Bafang DP C270 TFT display provides real-time performance metrics with high contrast visibility even in sunlight. Additional features such as a rear rack, kickstand, and integrated lighting increase everyday practicality. Overall, the Mare AUTO combines silent transmission, low-maintenance operation, and ergonomic design for maximum rider comfort.
-
Maintenance
The Mare AUTO reduces regular servicing needs through its belt drive system, which eliminates lubrication and resists stretching compared to traditional chains. The automatic hub gearbox requires minimal attention, though periodic inspection ensures consistent shifting. Tires should be checked for pressure and wear, with replacement intervals guided by mileage and road conditions. Hydraulic brake systems require pad and rotor checks, with fluid replacement as needed to maintain performance. The suspension fork should be cleaned after exposure to dust or moisture, and seals checked for leaks. Electrical connectors, the TFT display, and the ECONO ELK battery should be kept free of dirt and moisture. Battery packs should be stored at 40–60% charge in stable conditions when unused. Routine tightening of axles, stem bolts, and rack fasteners ensures frame integrity. With fewer wear-prone components, the Mare AUTO minimizes service requirements compared to chain-driven counterparts.
