Trekking electric bike
ECONO Apes CITY EER4
"City cruising, redefined elegance."
Specifications of
ECONO Apes CITY EER4
Motor | |
---|---|
Drivetrain | Rear drive |
Nominal Power | 250 W |
Maximum Power | 250 W |
Speed | |
Limited Speed | 25 km/h |
Speed Modes | 5 speed modes |
Maximum Incline Angle | 25° |
Battery | |
Maximum Range | 100 km / 135 km / 160 km |
Battery Capacity | 15 Ah, 20 Ah, 23 Ah |
Battery Voltage | 36 V |
Charging Time | 4.5 - 6 hours (with 4A fast charger for 700Wh/800Wh batteries); approx. 7.2 hours (with 2A charger for 520Wh battery) |
Charger Type | 1x Standard charger 2A (for 15 Ah version), Fast charger 4A (for 20 Ah and 23 Ah) |
Suspension | |
Front Suspension | Suntour NEX-E25-LO-DS, 75mm, tapered |
Rear Suspension | None |
Brakes | |

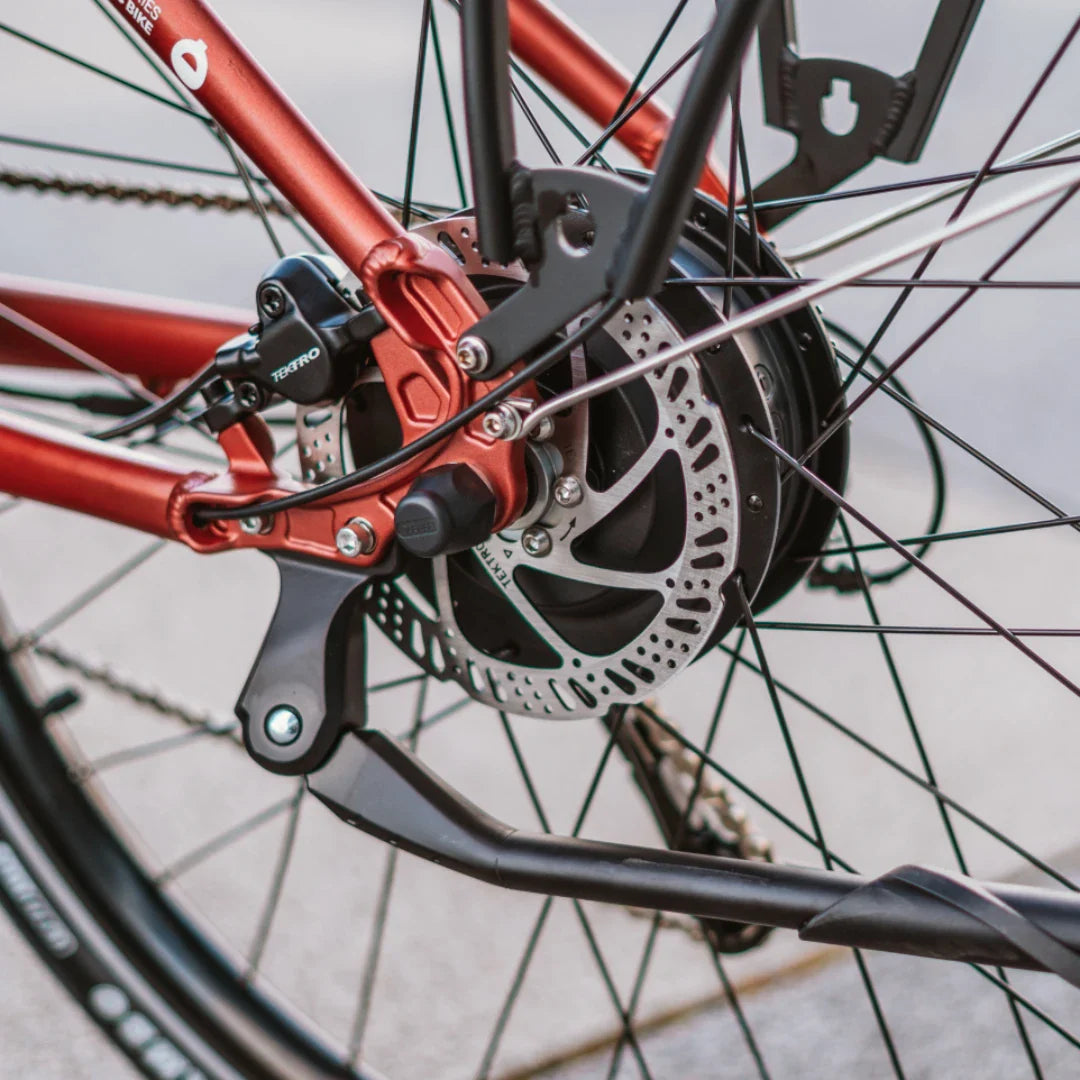

Front Brake | Tektro HD-M280 hydraulic disc brakes 180 mm |
Rear Brake | Tektro HD-M280 hydraulic disc brakes 160 mm |
Tires | |
Tire Type | Air tube |
Front Wheel Size | 28 x 2.0" |
Rear Wheel Size | 28 x 2.0" |
Lighting | |
Front and rear LED lights | |
Water Protection | |
IPX5 Water jets (low pressure) | |
Other | |
Recommended Height | 153-170 cm (S/M frame), 170-187 (L frame) |
Net Weight | 23.2 kg |
Load Capacity | 135 kg |
Warranty | 2 years on battery and motor, 3 years on frame, 1 year on non-consumable components |
-
Comfort & Design
The ECONO Apes EER4 is engineered around a 6061 aluminum alloy frame designed for lightweight strength and corrosion resistance. A city-style geometry with an upright seating position reduces rider fatigue, while the adjustable stem (0–90°) and ergonomic 680 mm handlebars allow a customizable fit. The Velo VL-3644 saddle and 30.9 mm seatpost provide wide, cushioned support for longer rides. At 22.6 kg (without battery), the EER4 maintains easy handling for storage and transport. The Bafang DP C080 side-mounted TFT display provides clear data visualization, including five assistance modes: ECO, TOUR, SPORT, SPORT+, and BOOST. Integrated blatniki (mudguards), kickstand, and MIK-compatible rear rack add everyday convenience. With its clean design and functional ergonomics, the Apes EER4 balances comfort, utility, and performance for daily commuting and relaxed leisure rides.
-
Maintenance

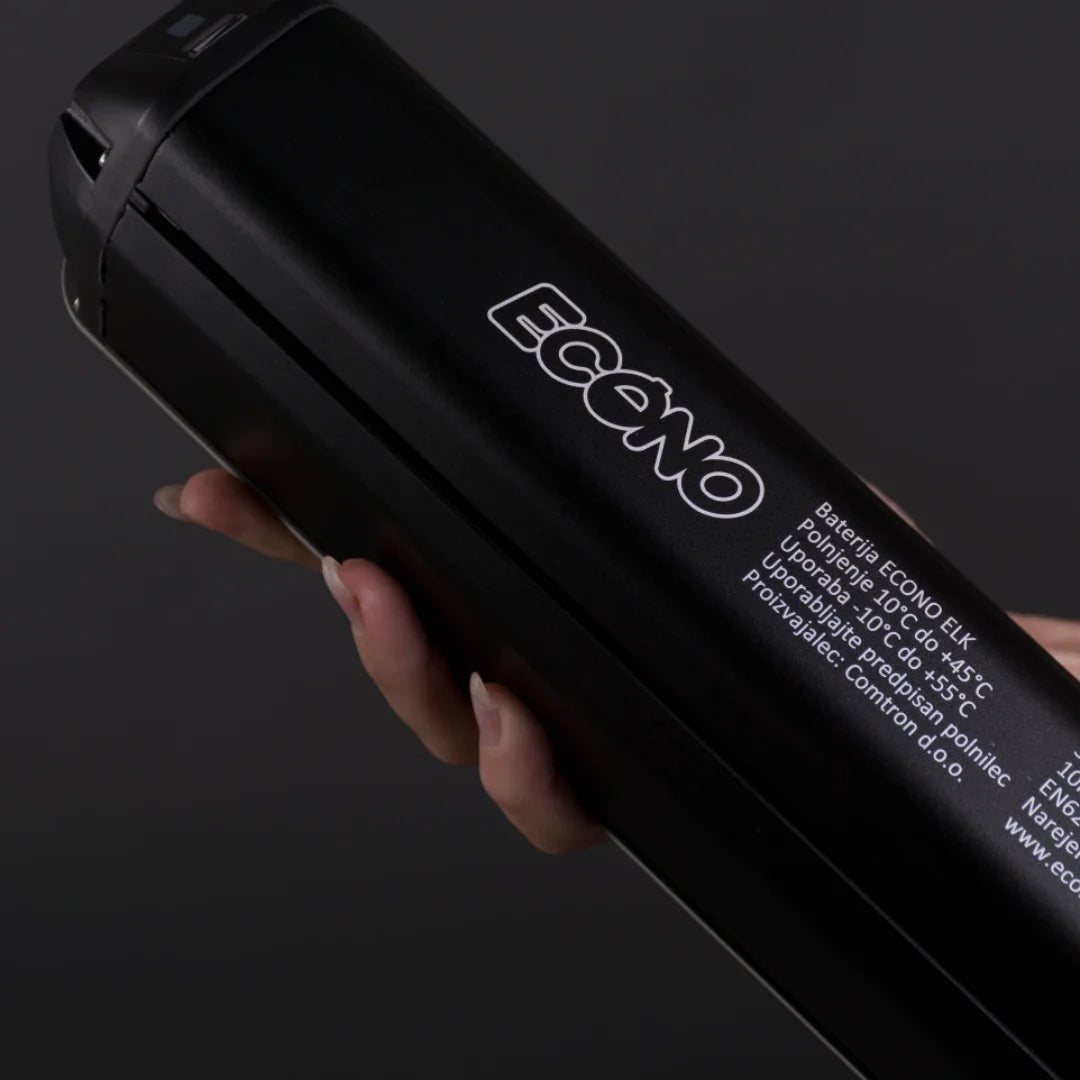

Routine maintenance of the ECONO Apes EER4 ensures reliable long-term operation. Tires should be checked regularly for pressure and tread wear, with replacement intervals guided by mileage. The hydraulic braking system requires inspection of pads, rotors, and fluid levels to maintain stopping performance. The Suntour suspension fork should be cleaned after dusty or wet conditions, with seals inspected for leaks. The Shimano Altus 9-speed drivetrain requires regular cleaning, lubrication, and indexing checks to ensure smooth shifting. Electrical connectors and the Bafang C080 display should be kept free of dirt and moisture. The removable ECONO ELK battery should be stored at 40–60% charge if unused for extended periods, in a cool and dry environment. Regular tightening of wheel axles, stem bolts, and rack fasteners maintains frame stability. With scheduled care, the EER4 remains efficient, comfortable, and durable for years of everyday cycling.
