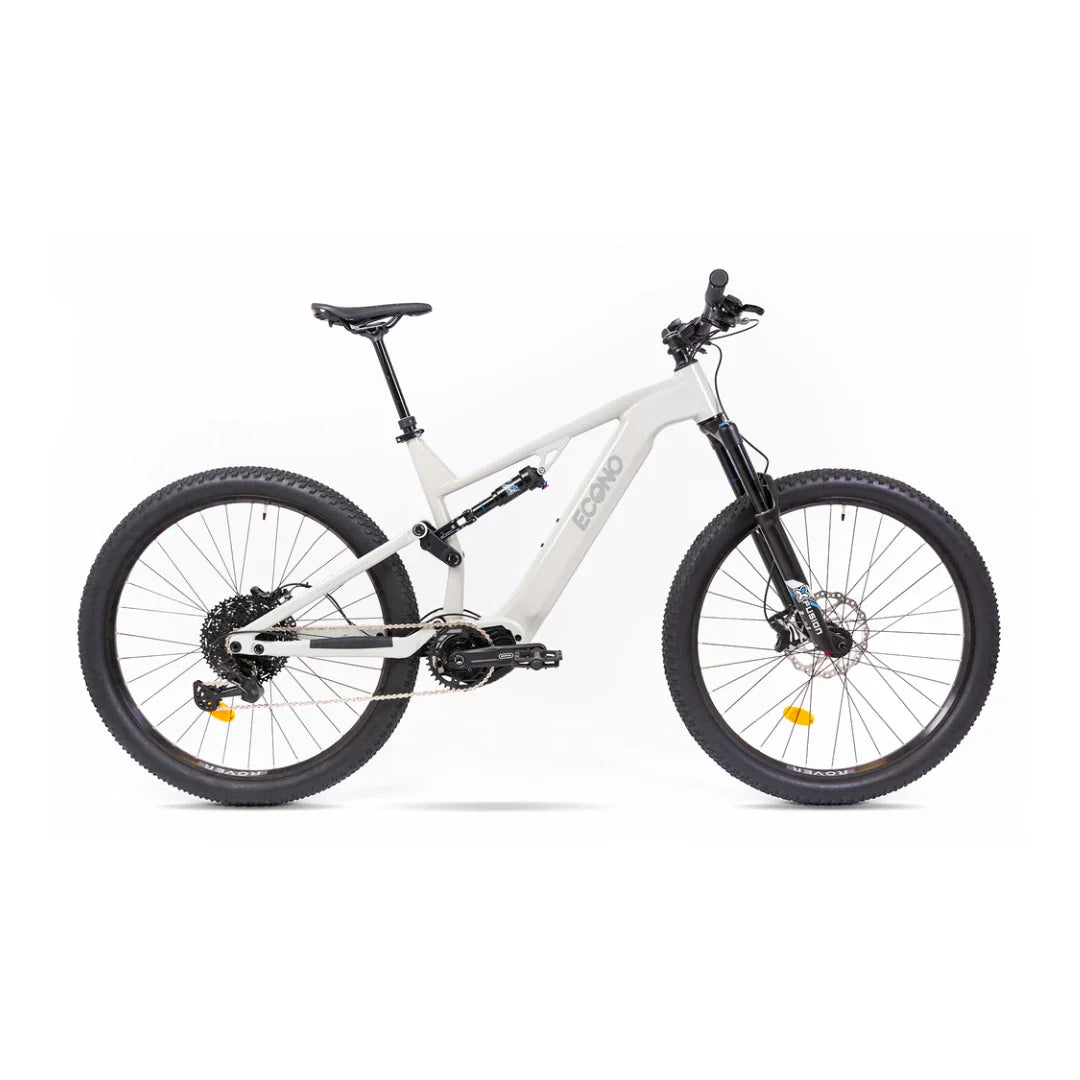

Mountain electric bike
ECONO Pantera C8 140
"Dominate trails, tame mountains."
Specifications of
ECONO Pantera C8 140
Motor | |
---|---|

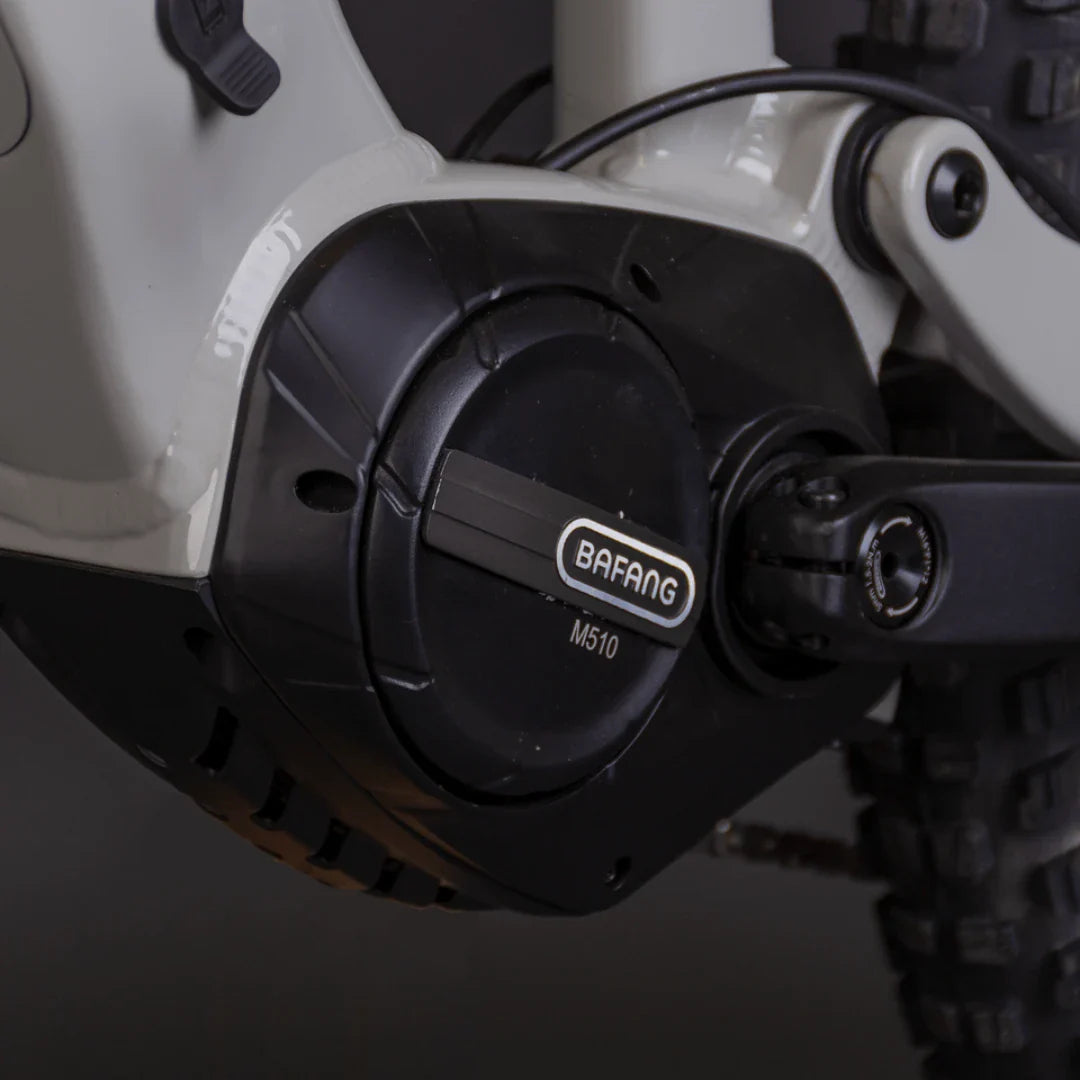

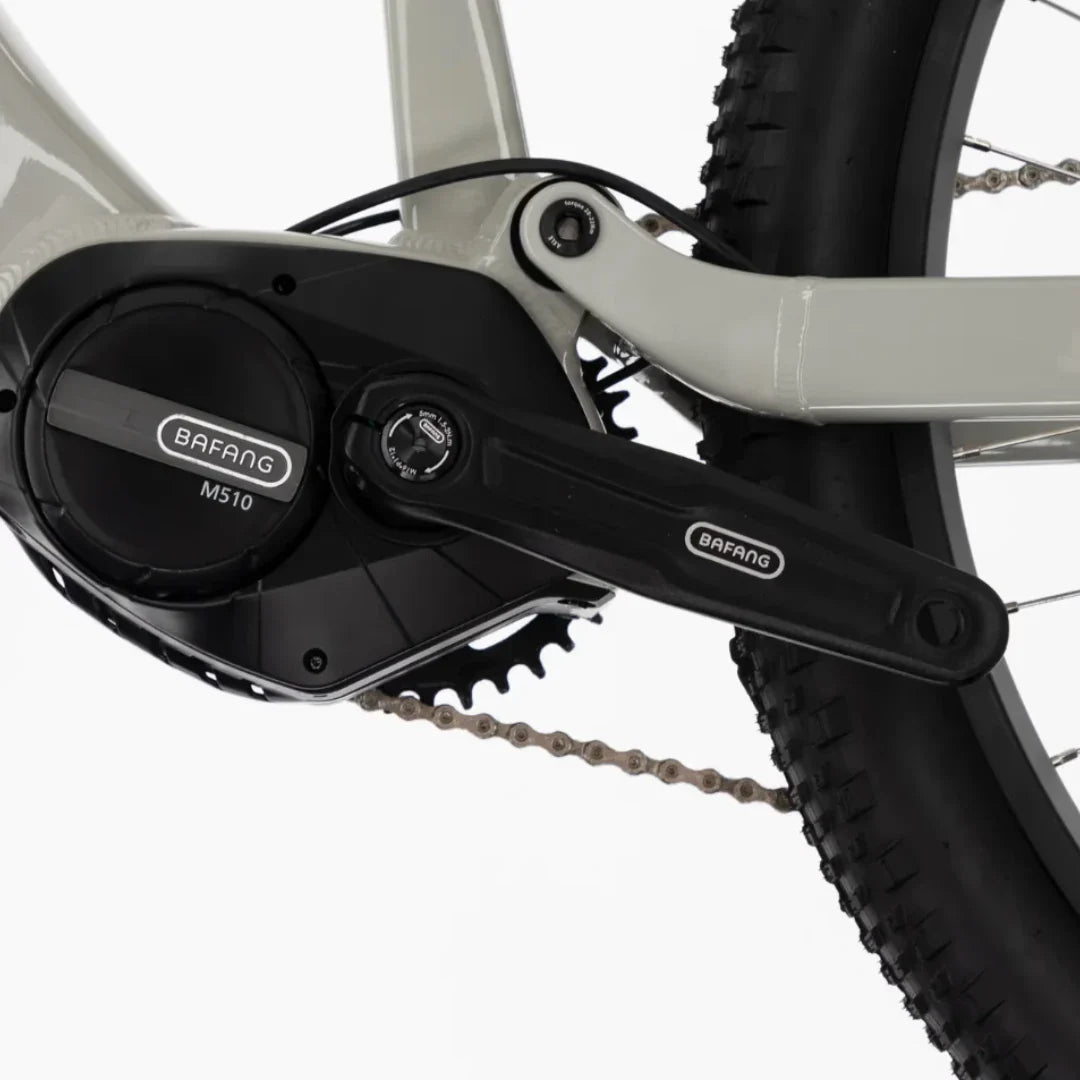

Drivetrain | Central drive |
Nominal Power | 250 W |
Maximum Power | 250 W |
Speed | |
Limited Speed | 25 km/h |
Speed Modes | 5 speed modes |
Maximum Incline Angle | 35° |

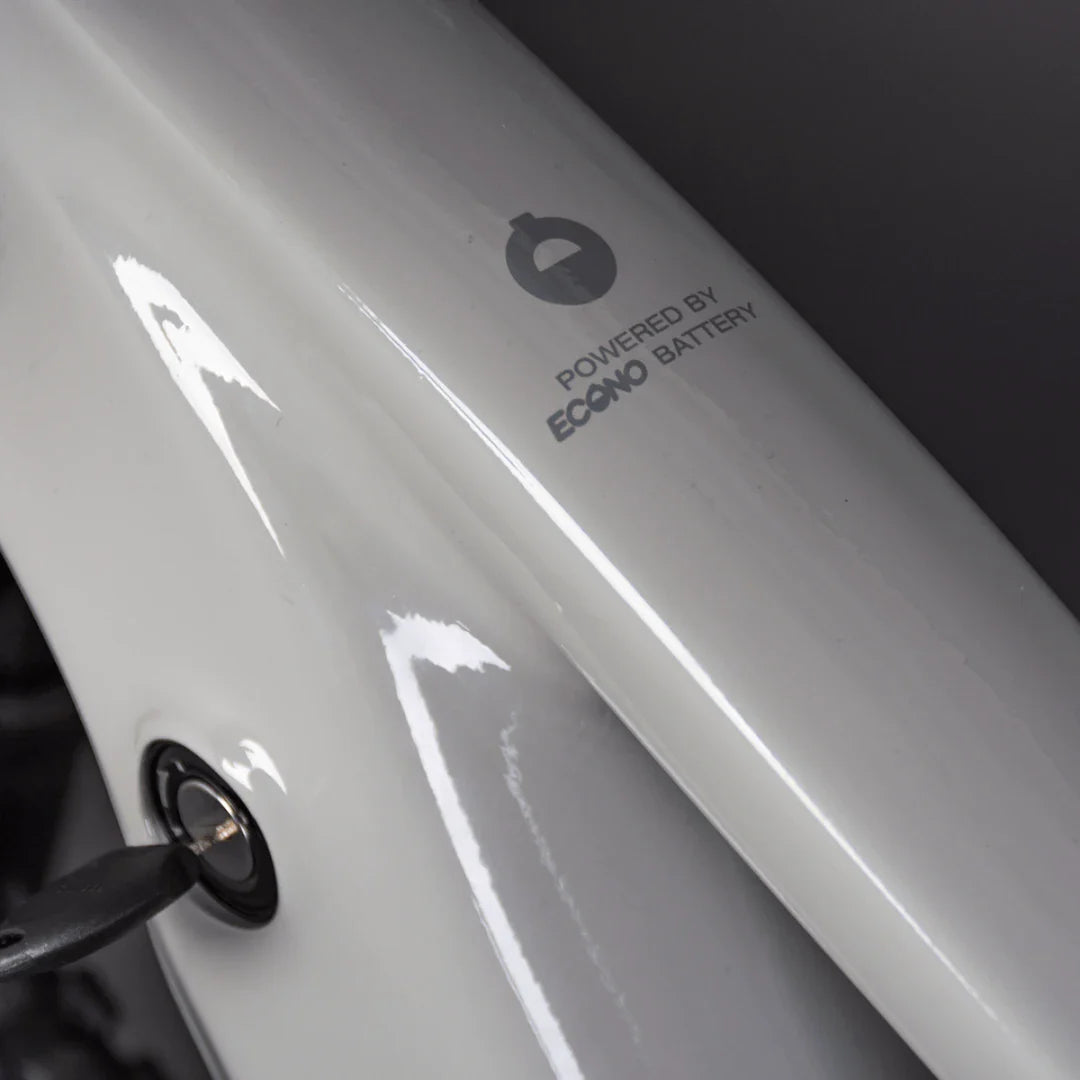

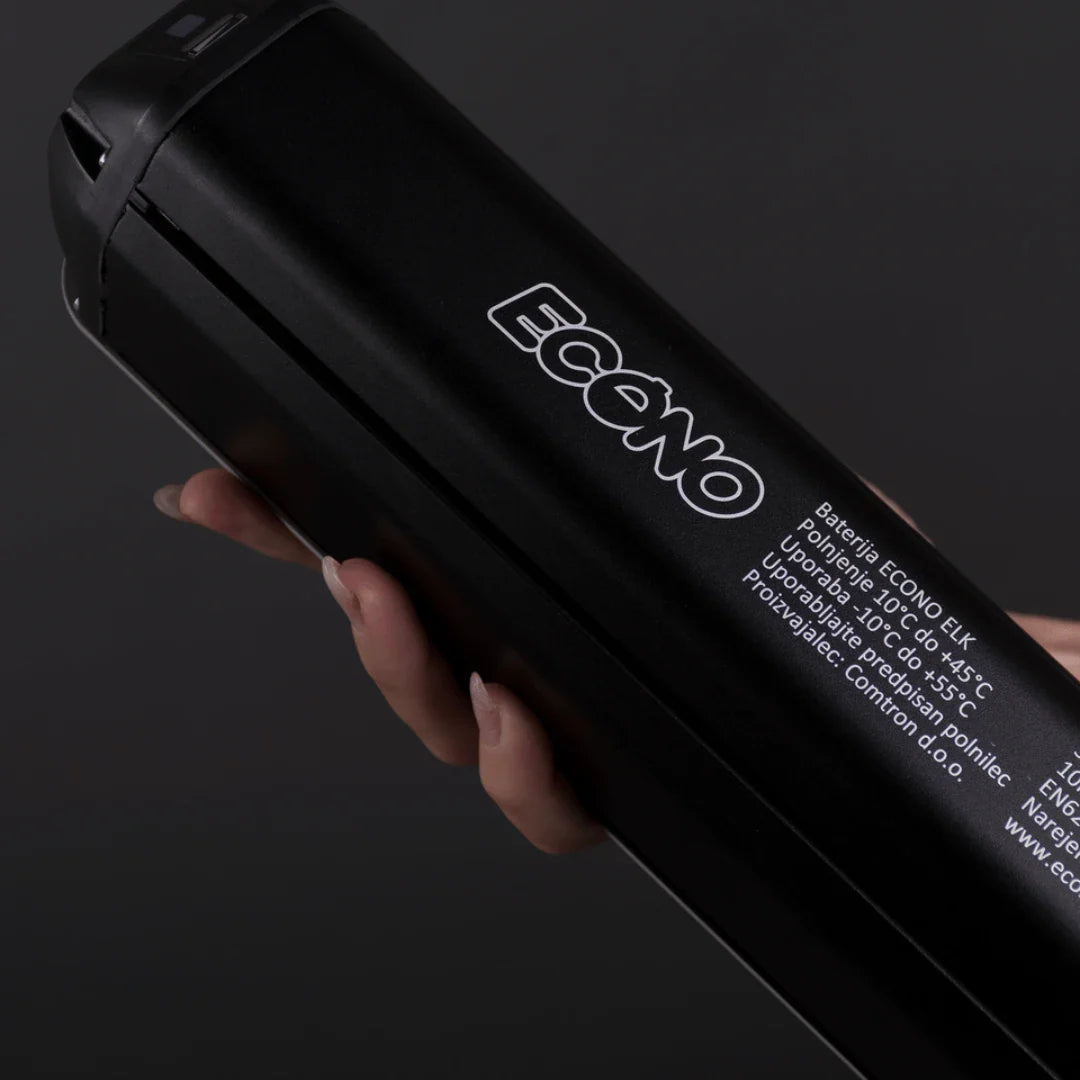

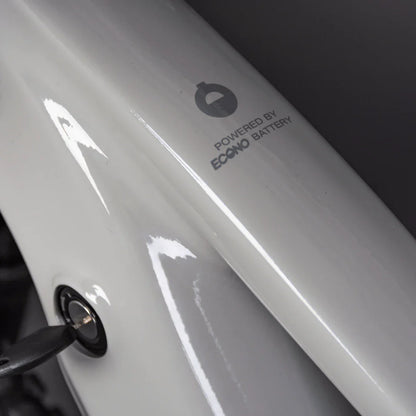

Battery | |
Maximum Range | 70-160 km |
Battery Capacity | 14.4 Ah, 19.4 Ah, 22.2 Ah |
Battery Voltage | 36 V |
Charging Time | 4.5 - 6 hours (with 4A fast charger for 700Wh/800Wh batteries); approx. 7.2 hours (with 2A charger for 520Wh battery) |
Charger Type | 1x Standard charger 2A, Fast charger 4A |
Suspension | |
Front Suspension | X-Fusion air suspension |

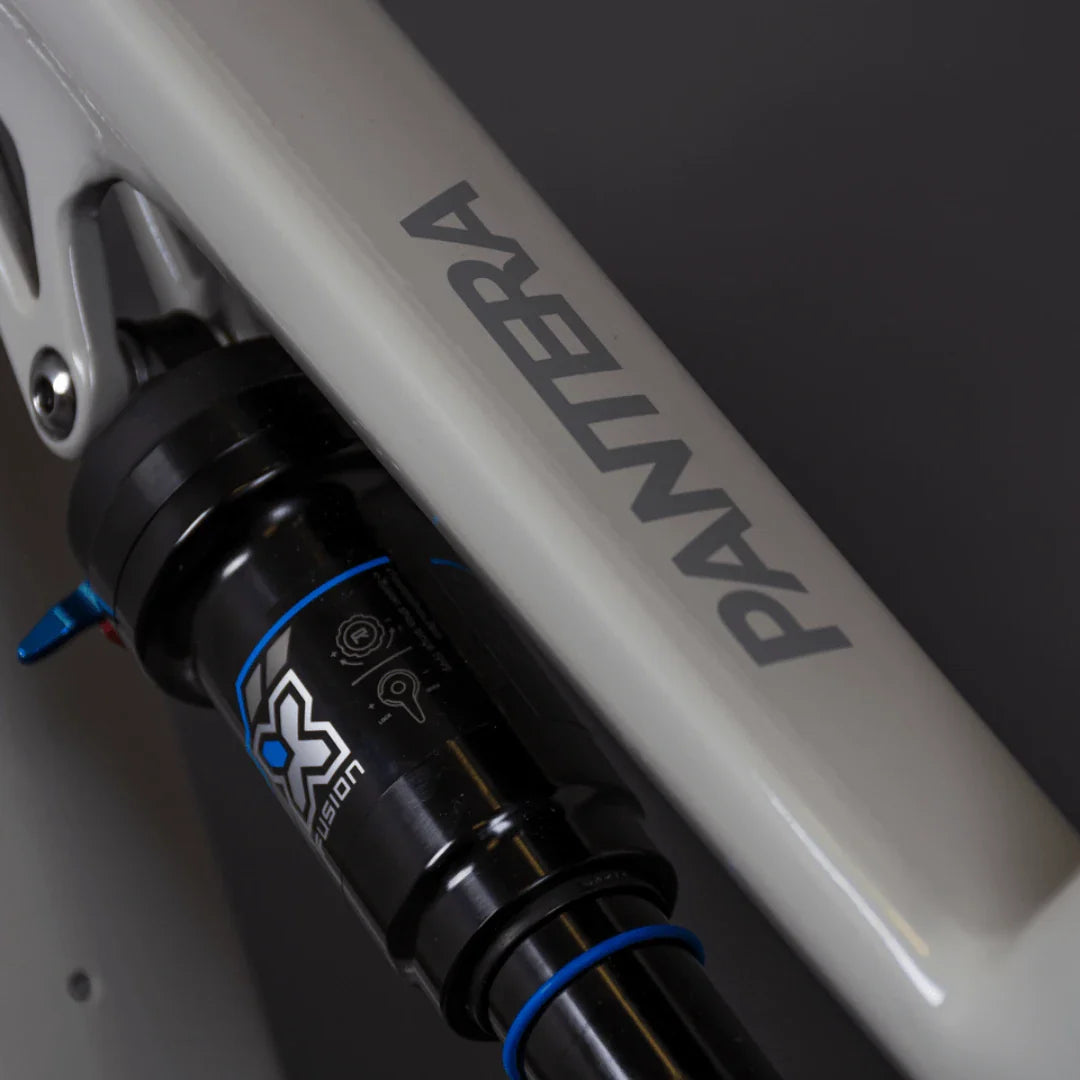

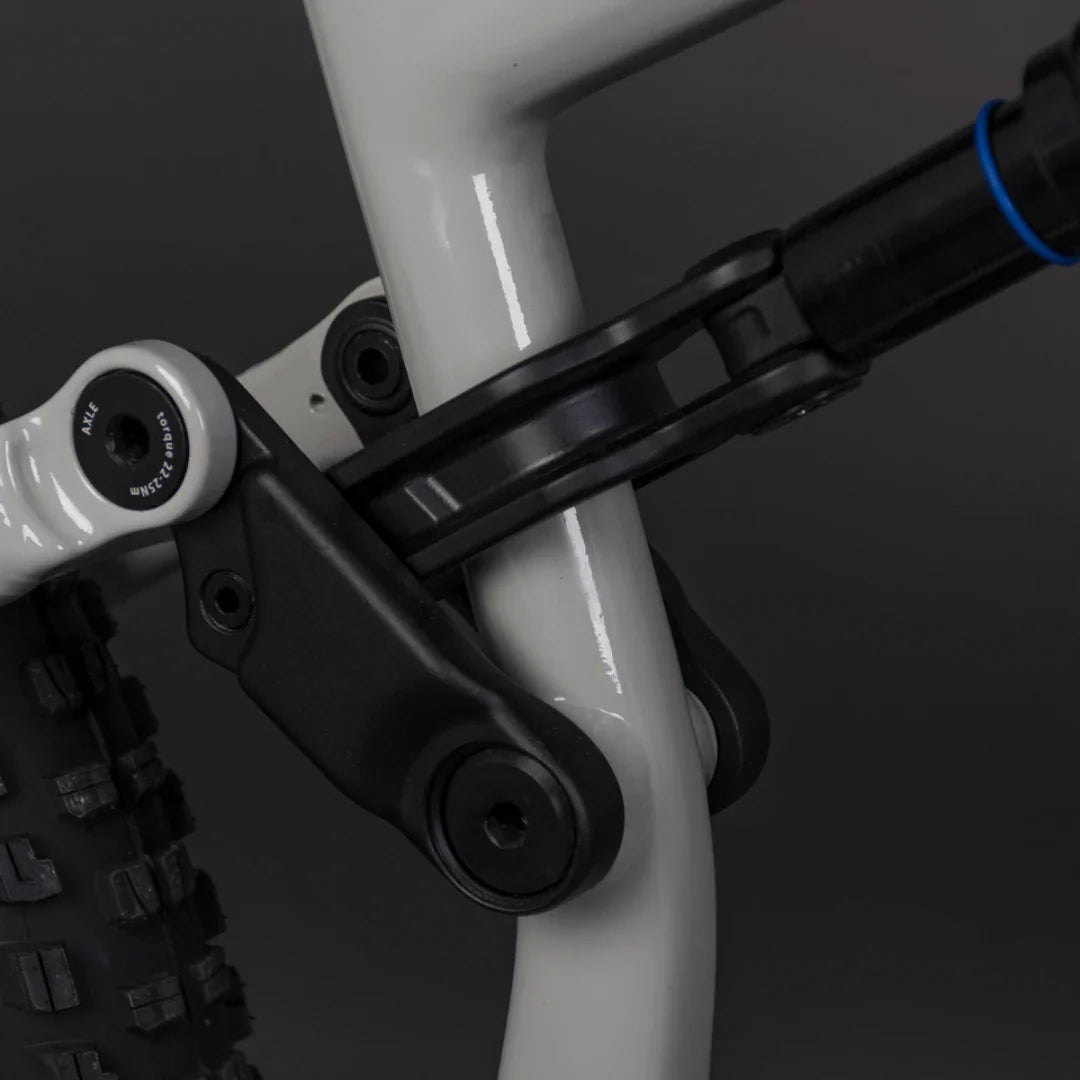

Rear Suspension | X-Fusion air suspension |
Brakes | |

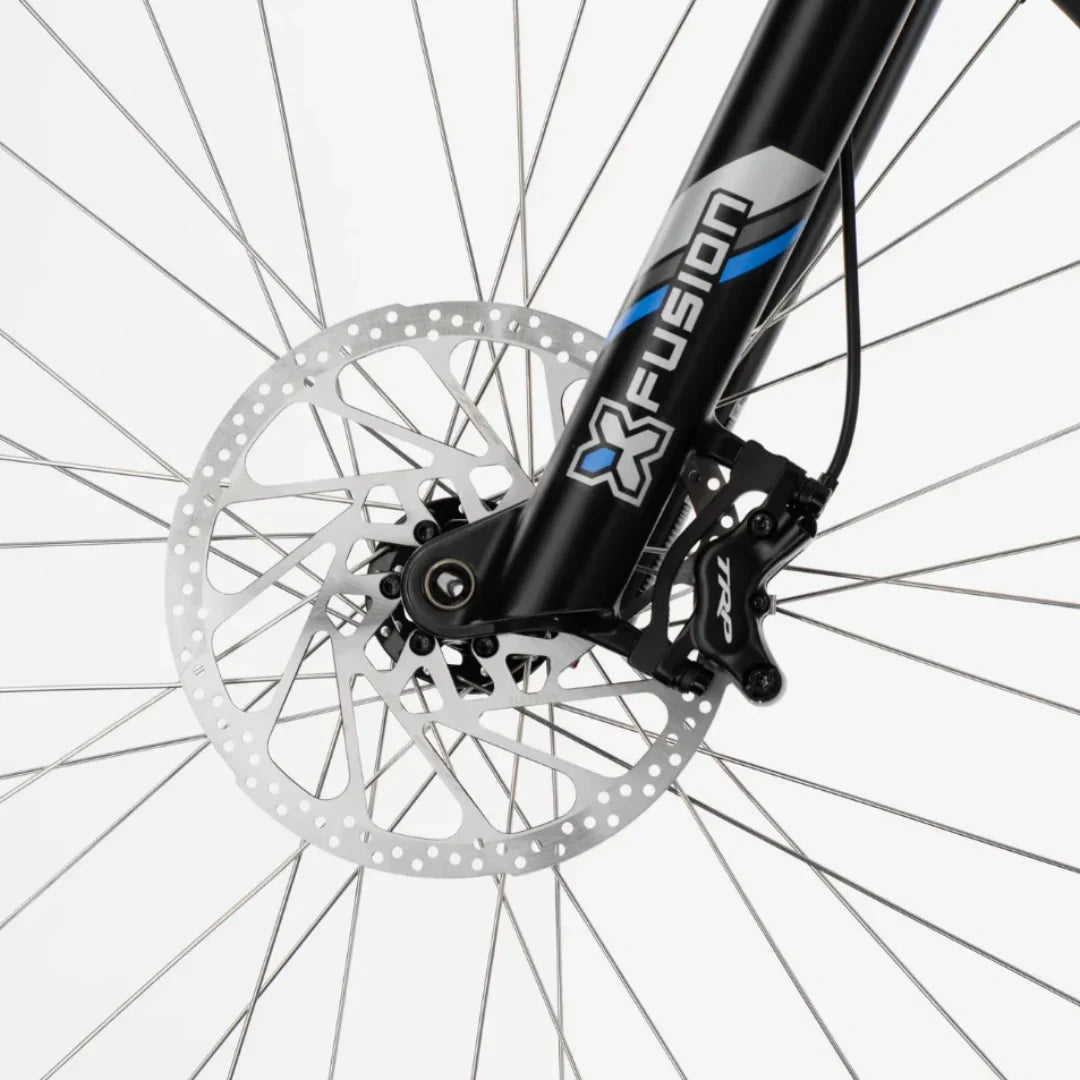

Front Brake | TRP Disc hydraulic 203 mm |
Rear Brake | TRP Disc hydraulic 180 mm |
Tires | |
Tire Type | Air tube |
Front Wheel Size | 29 x 2.60" |
Rear Wheel Size | 29 x 2.60" |
Water Protection | |
IPX5 Water jets (low pressure) | |
Other | |
Recommended Height | 155-175 cm (S frame), 172 - 186 cm (M frame), 185-200 cm (XL frame) |
Net Weight | 21.9 kg |
Load Capacity | 135 kg |
Warranty | 2 years on battery and motor, 3 years on frame, 1 year on non-consumable components |
-
Comfort & Design

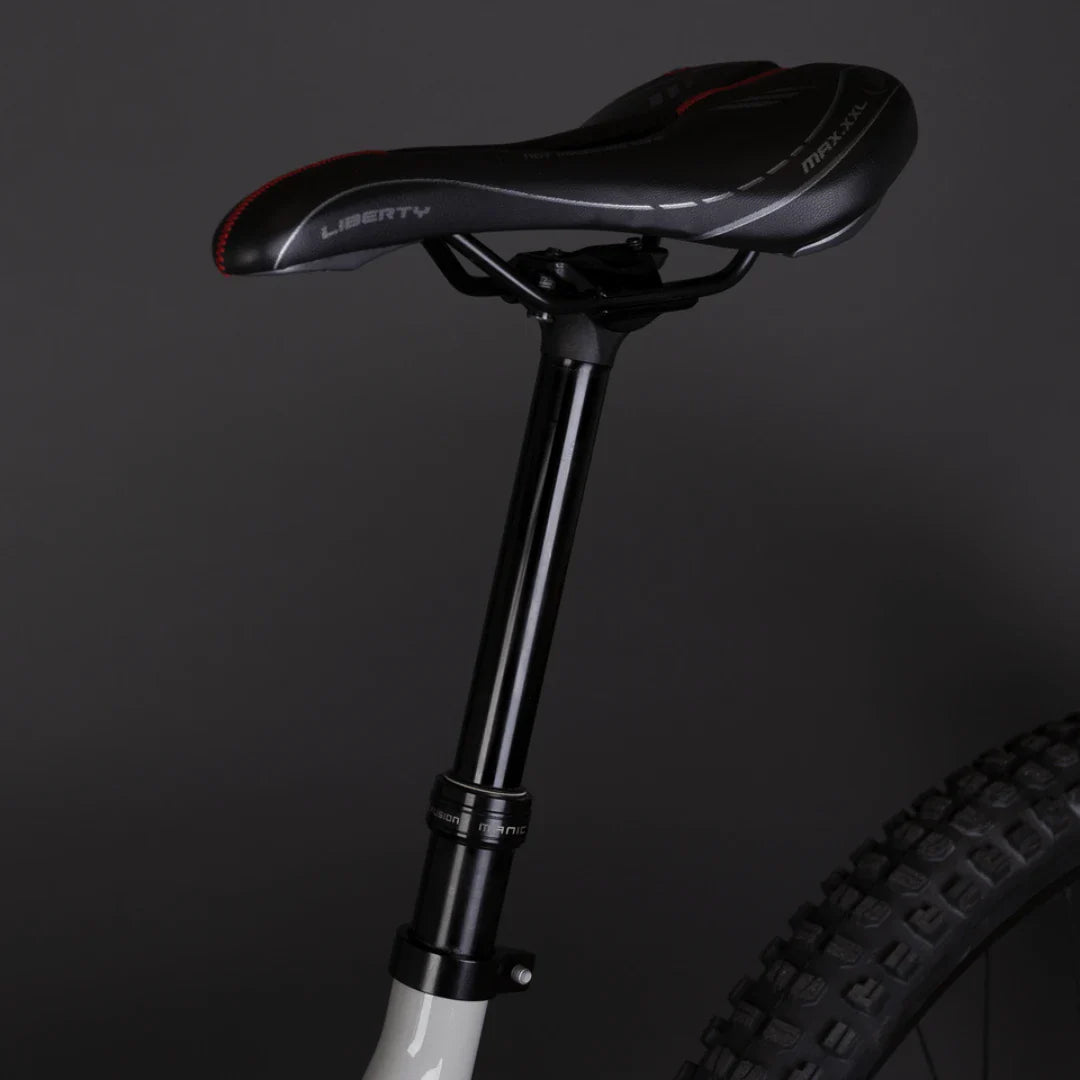

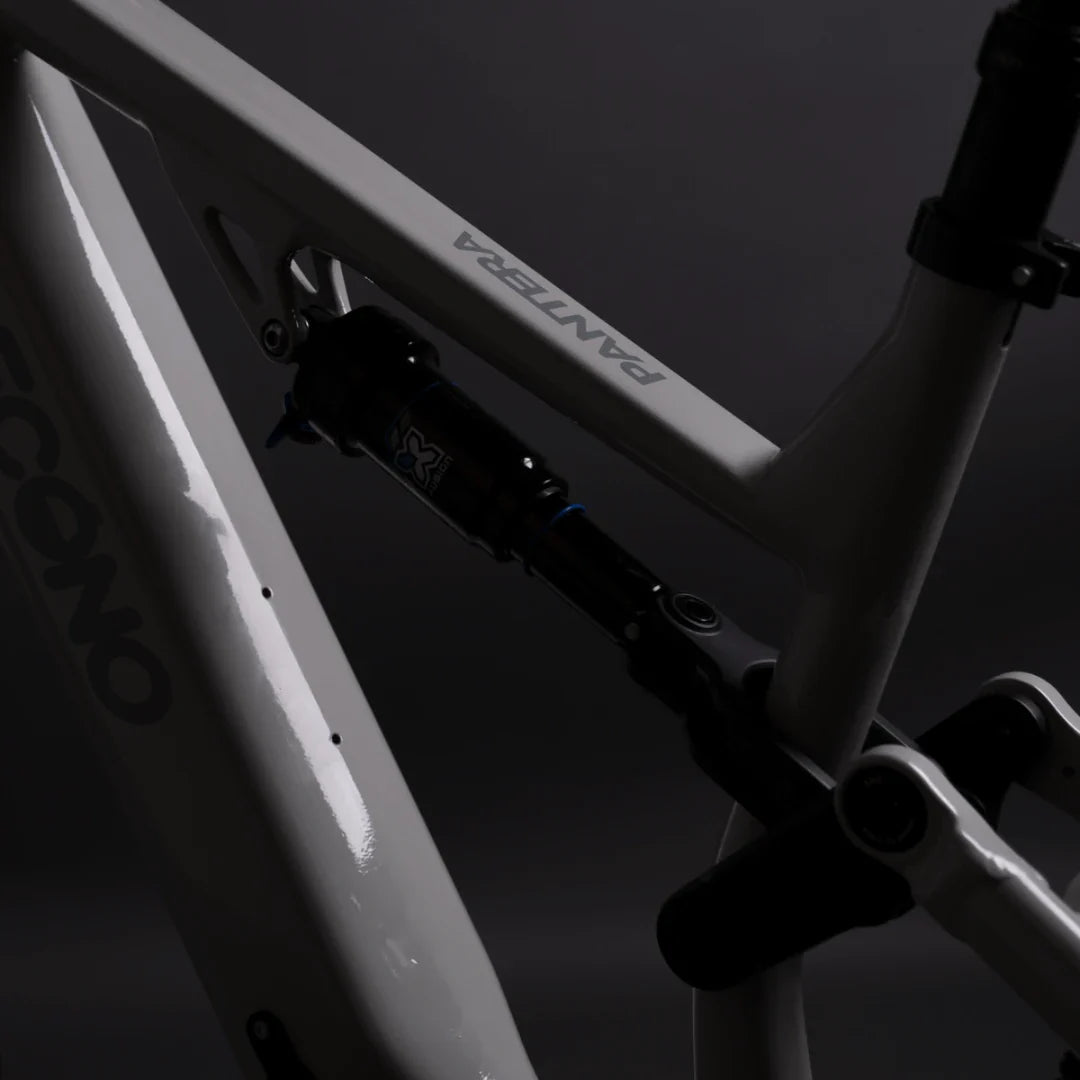

Crafted from lightweight yet robust Aluminum 6061, the ECONO Pantera boasts a sleek, hydroformed frame that screams durability and elegance. Its comfortable geometry ensures long rides without feeling like a punishment, while the X-Fusion air suspension and dropper seat post effortlessly adapt to your needs.
-
Maintenance
Maintenance on the ECONO Pantera C8 140 is surprisingly straightforward for such a high-performance beast. Regularly charge the battery (hint: don’t wait until it’s completely drained), check tire pressure, and wipe off any mud from your adventurous escapades. The hydraulic brakes may need occasional bleeding, but hey, a little professional TLC never hurt anyone. Keep the suspension tuned to your weight and riding style for that buttery-smooth ride. And remember, a clean drivetrain is a happy drivetrain – so show some love to the chain and gears with periodic cleaning and lubrication.
