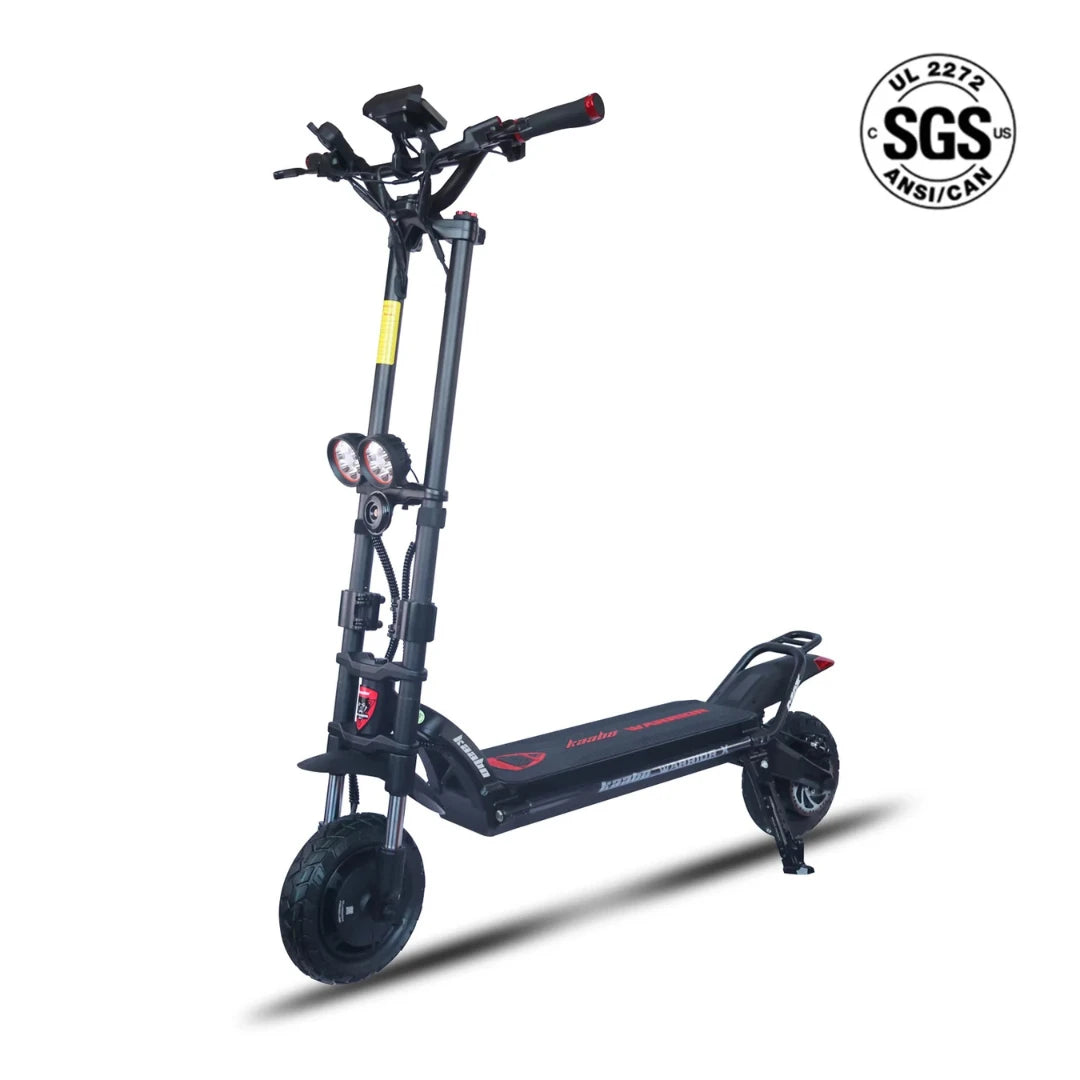

Off-road electric scooter
Kaabo Wolf Warrior X MAX
Conquer Every Terrain.
Specifications of
Kaabo Wolf Warrior X MAX
| Motor | |
|---|---|
| Drivetrain | Dual drive |
| Nominal Power | 2 x 1.100 W |
| Maximum Power | 4.032W |
| Speed | |
| Limited Speed | 25 km/h |
| Speed Modes | Eco / Turbo, Single / Dual |
| Maximum Incline Angle | 35° |
| Battery | |
| Maximum Range | 90 km |
| Battery Capacity | 27 Ah |
| Battery Voltage | 60 V |
| Charging Time | 7.8 hours |
| Charger Type | 2x Standard charger 67.2V 1.75A |
| Suspension | |
| Front Suspension | Patent hydraulic shock absorber |

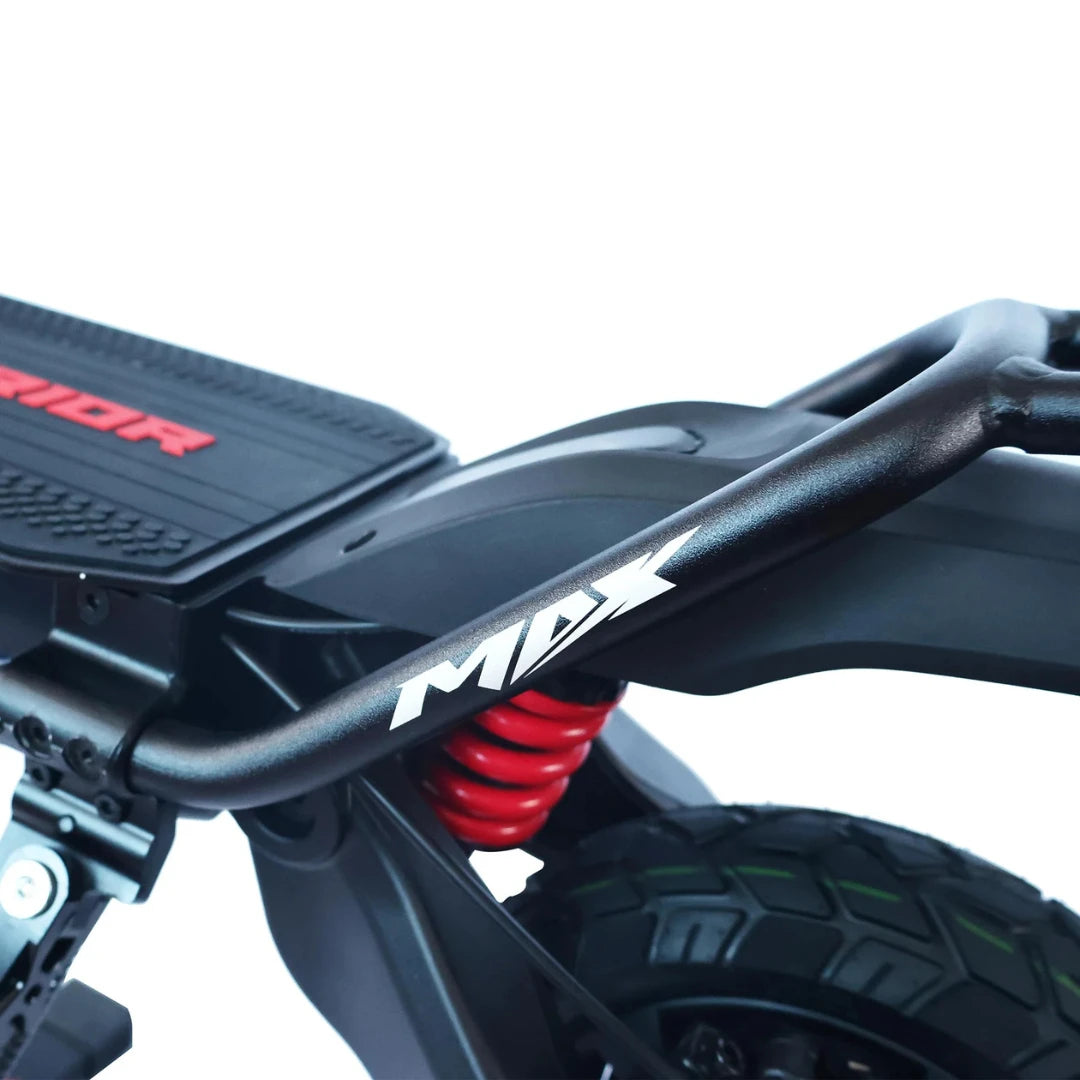

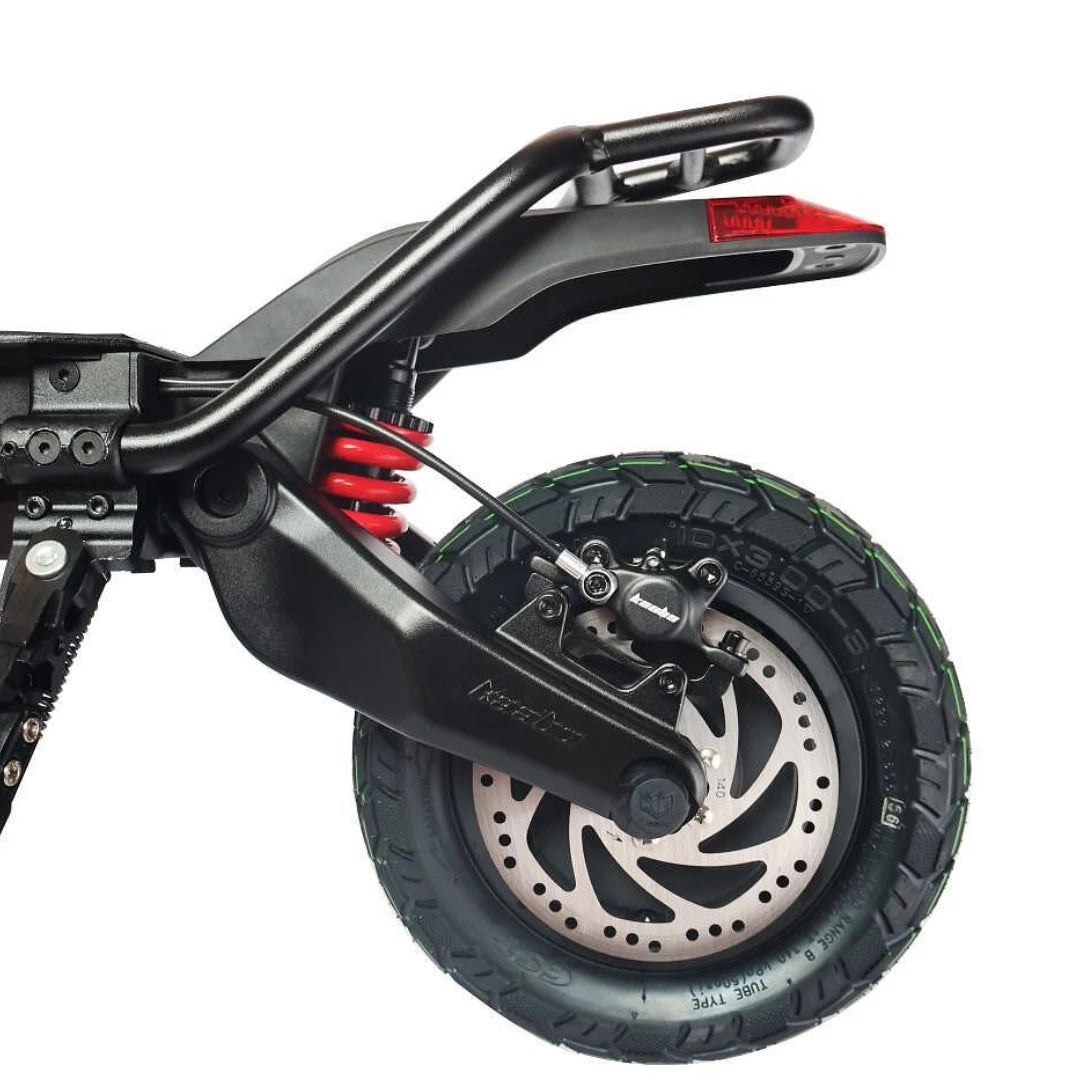

| Rear Suspension | C-type spring shock |
| Brakes | |
| Front Brake | Hydraulic disc brake (140mm) + EABS |
| Rear Brake | Hydraulic disc brake (140mm) + EABS |
| Tires | |
| Tire Type | Pneumatic all-terrain tire |
| Front Wheel Size | 10" |
| Rear Wheel Size | 10" |
| Lighting | |
| LED Pedal lamp (RGB), LED front spotlight, LED turn signals, LED front light | |
| Water Protection | |
| IPX5 - Protected from low-pressure water spray | |
| Dimensions | |
| Length | 1251 mm |
| Height | 1256 mm |
| Width | 650 mm |

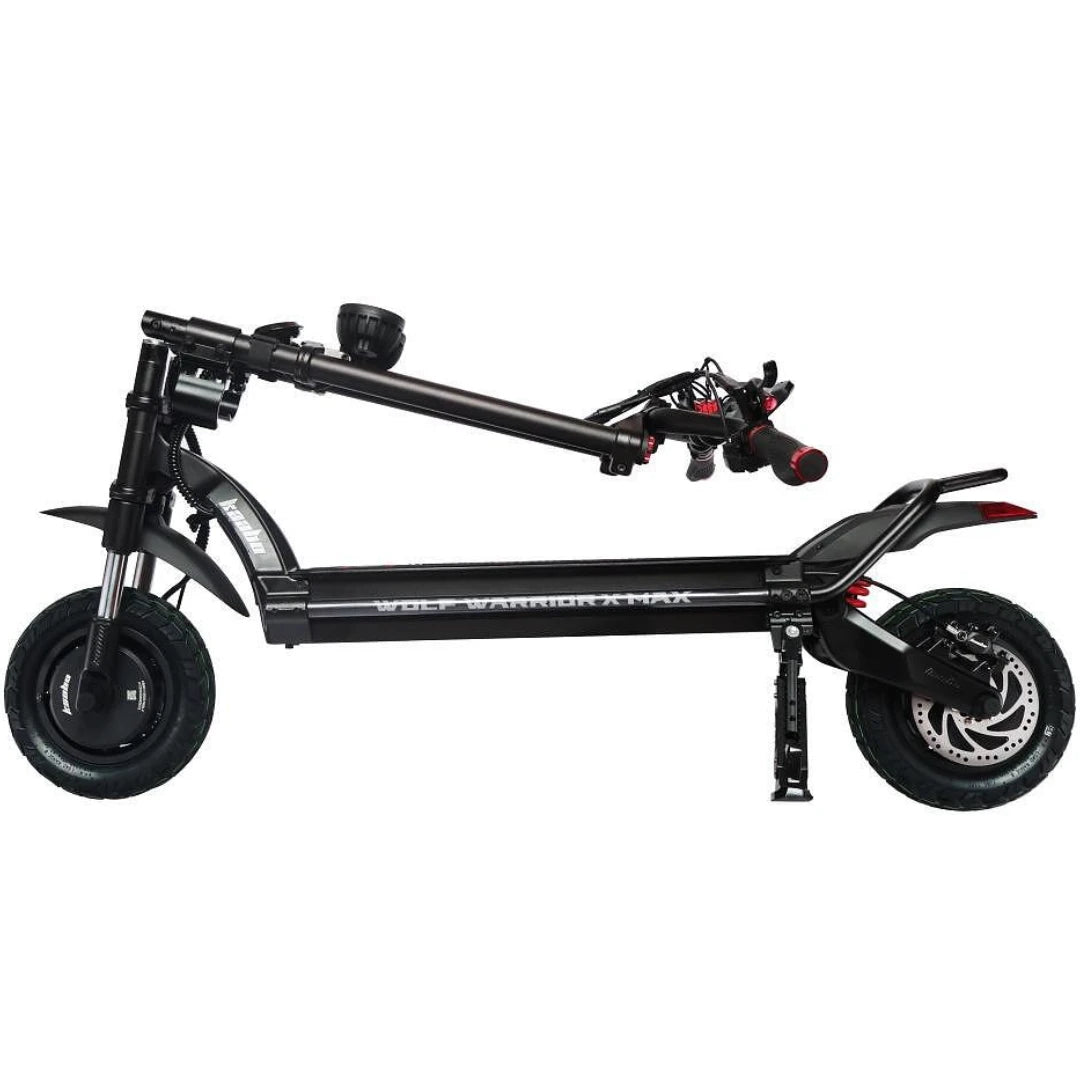

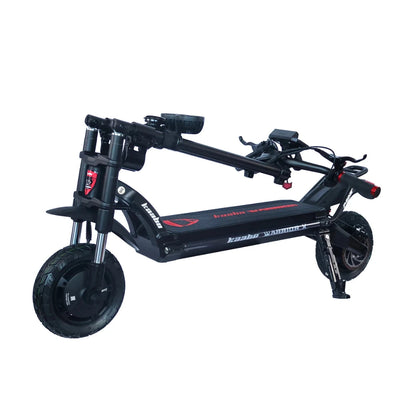

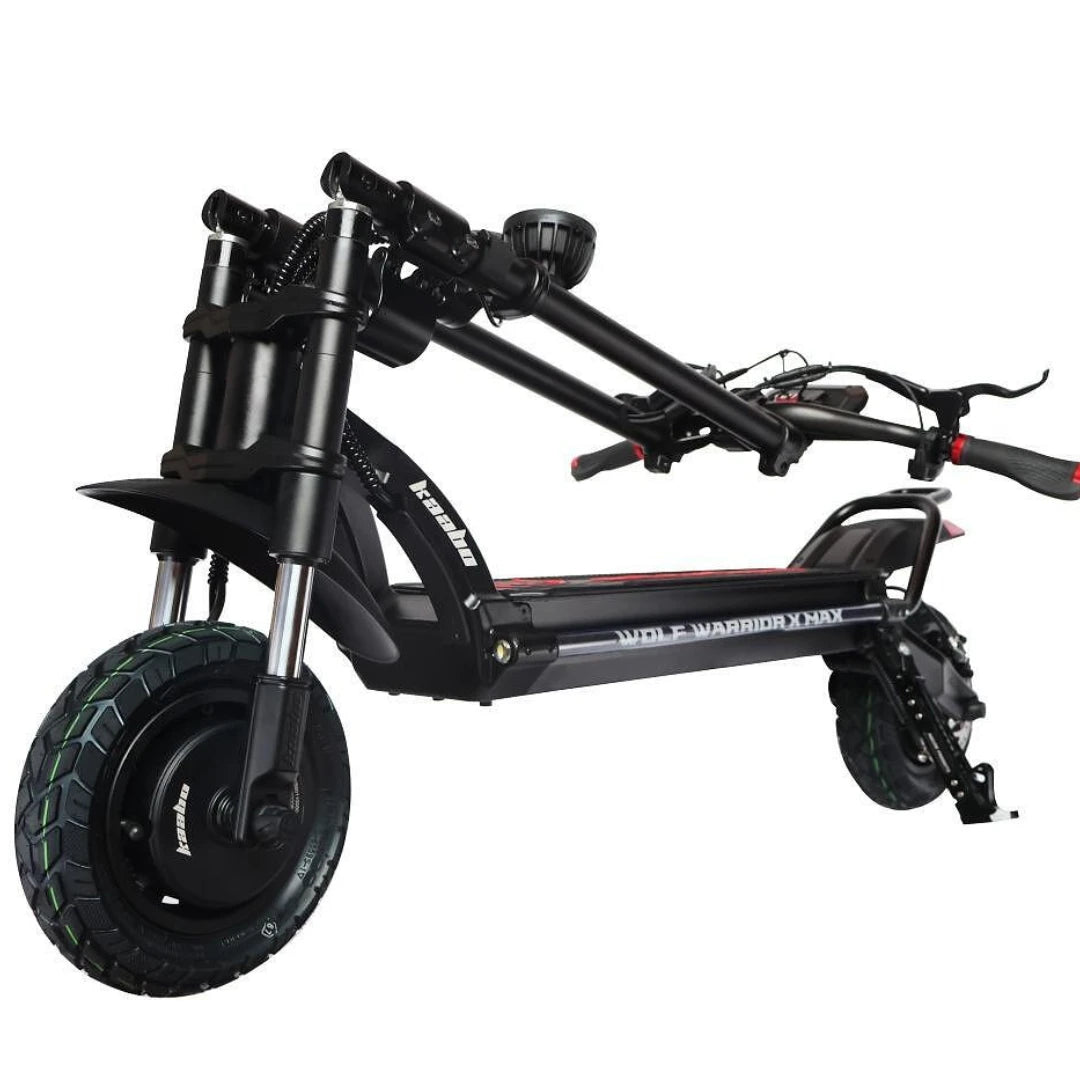

| Folded | |
| Length | 1251 mm |
| Height | 600 mm |
| Width | 650 mm |
| Other | |
| Recommended Height | 160-200 cm |
| Net Weight | 38 kg |
| Load Capacity | 120 kg |
| Warranty | 1 year |
-
Comfort & Design

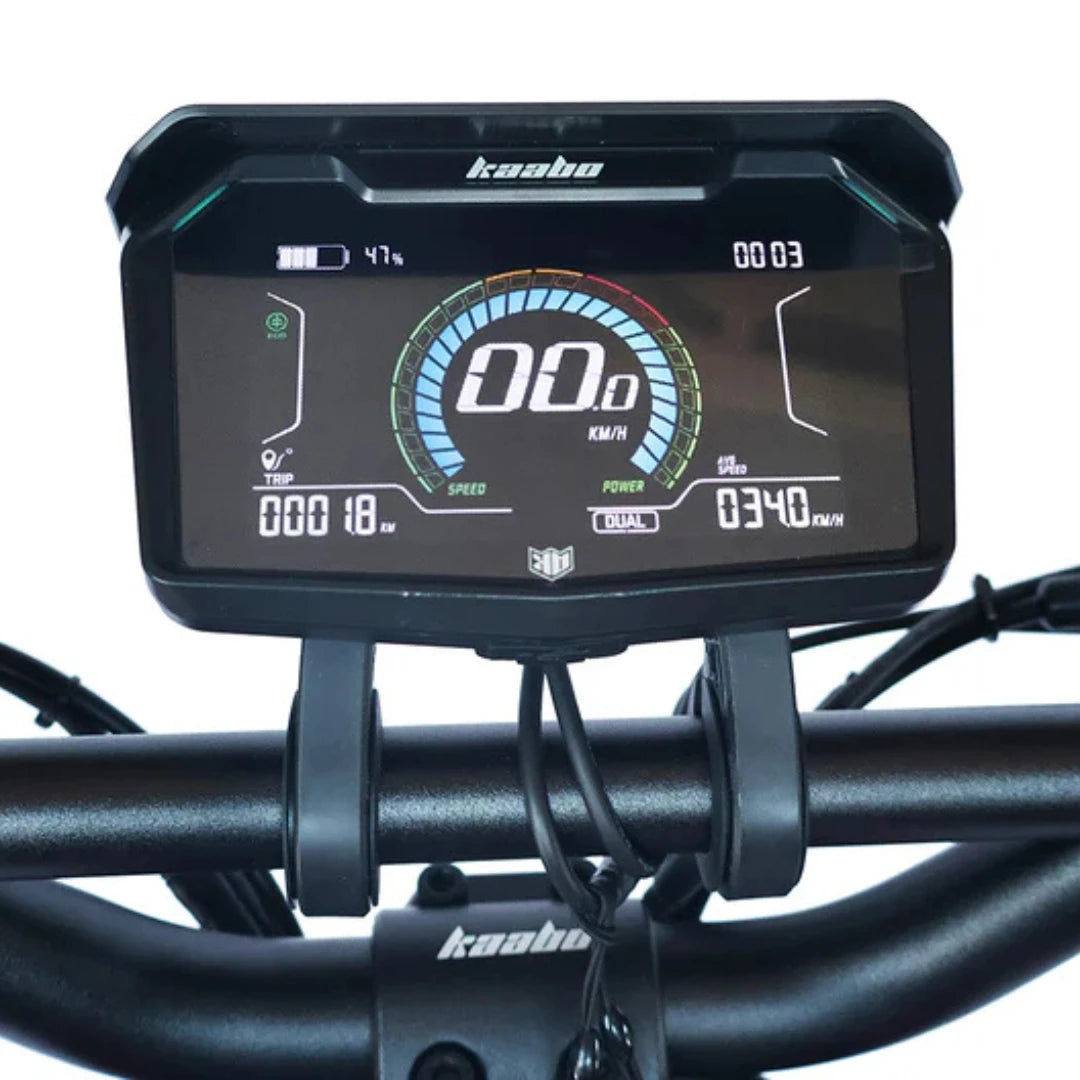

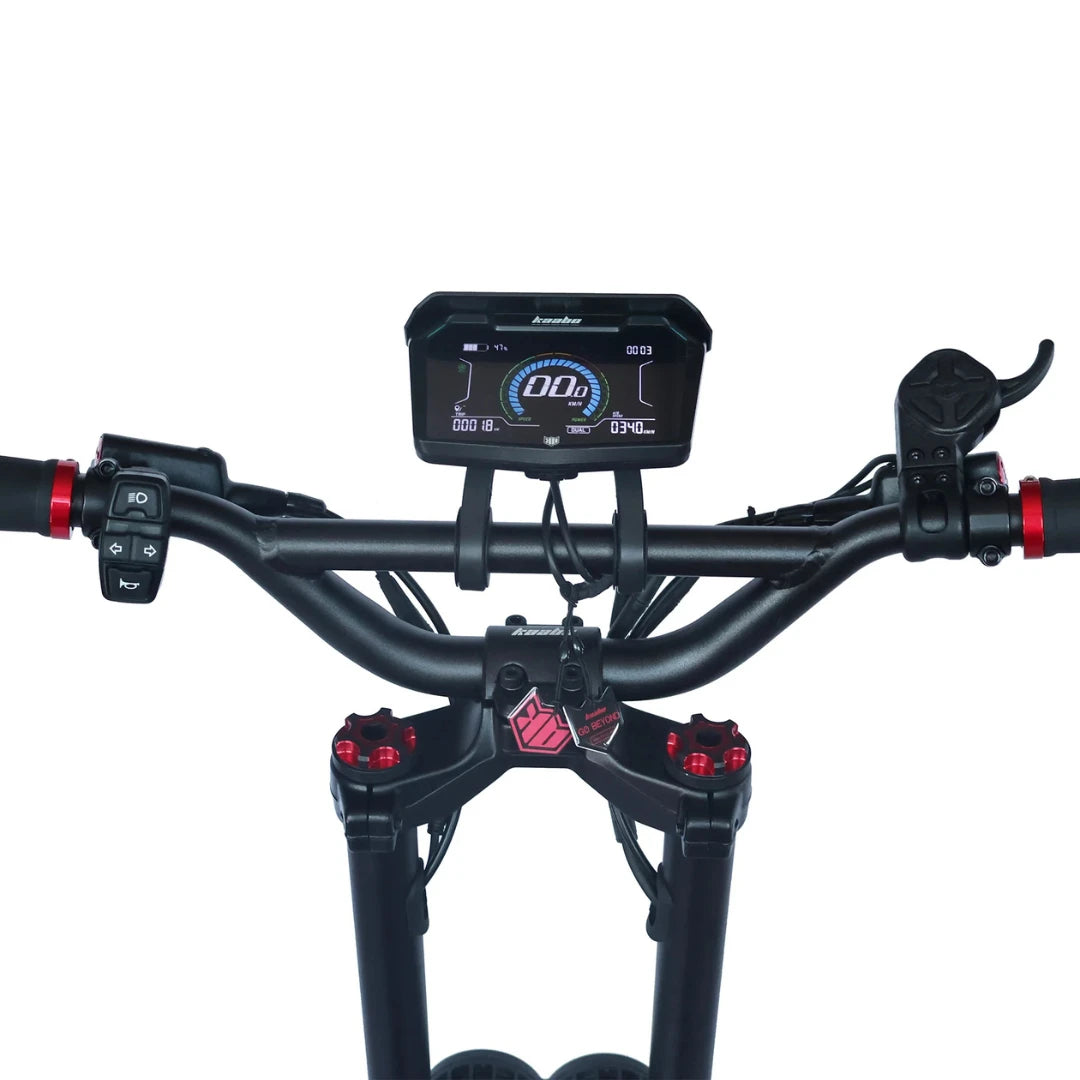

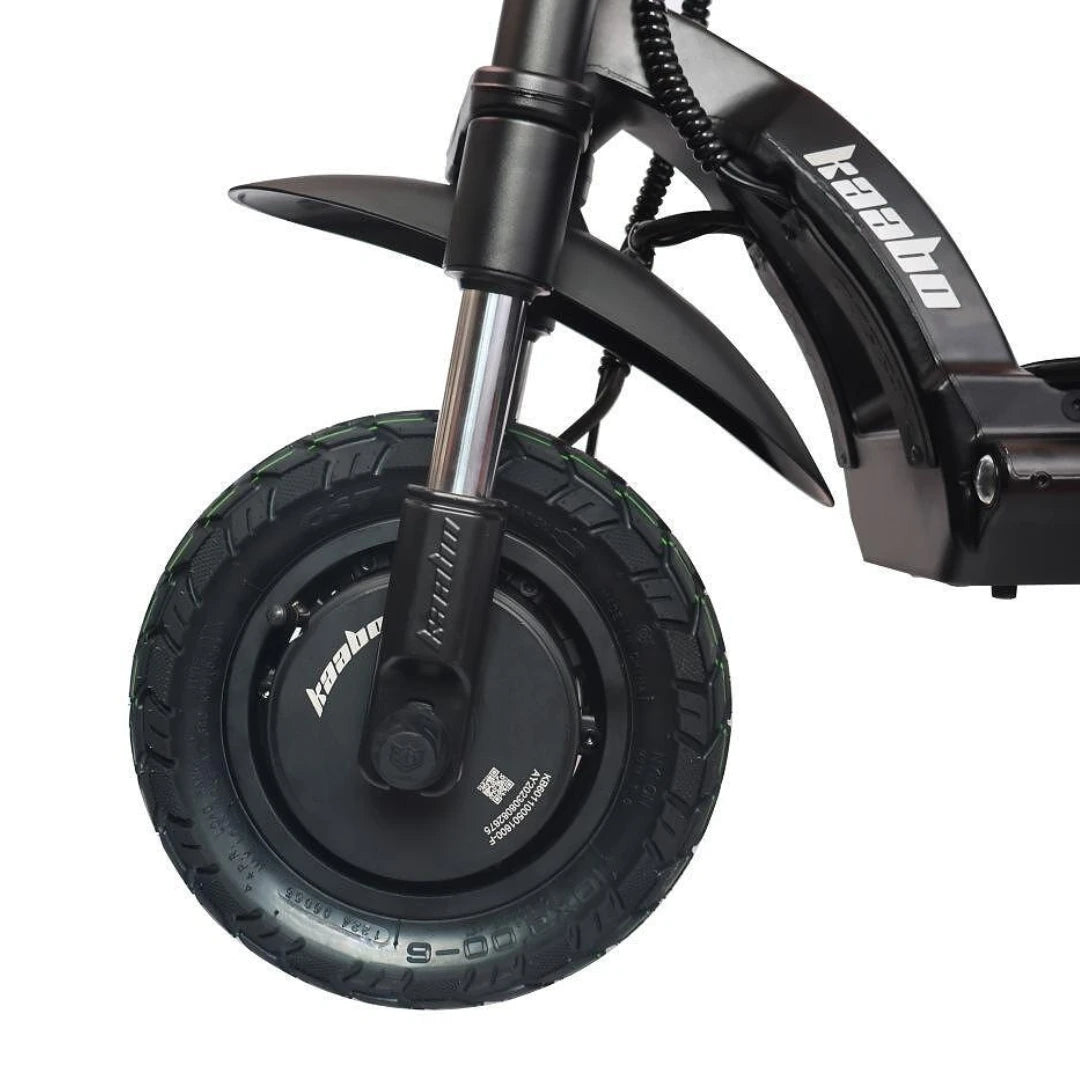

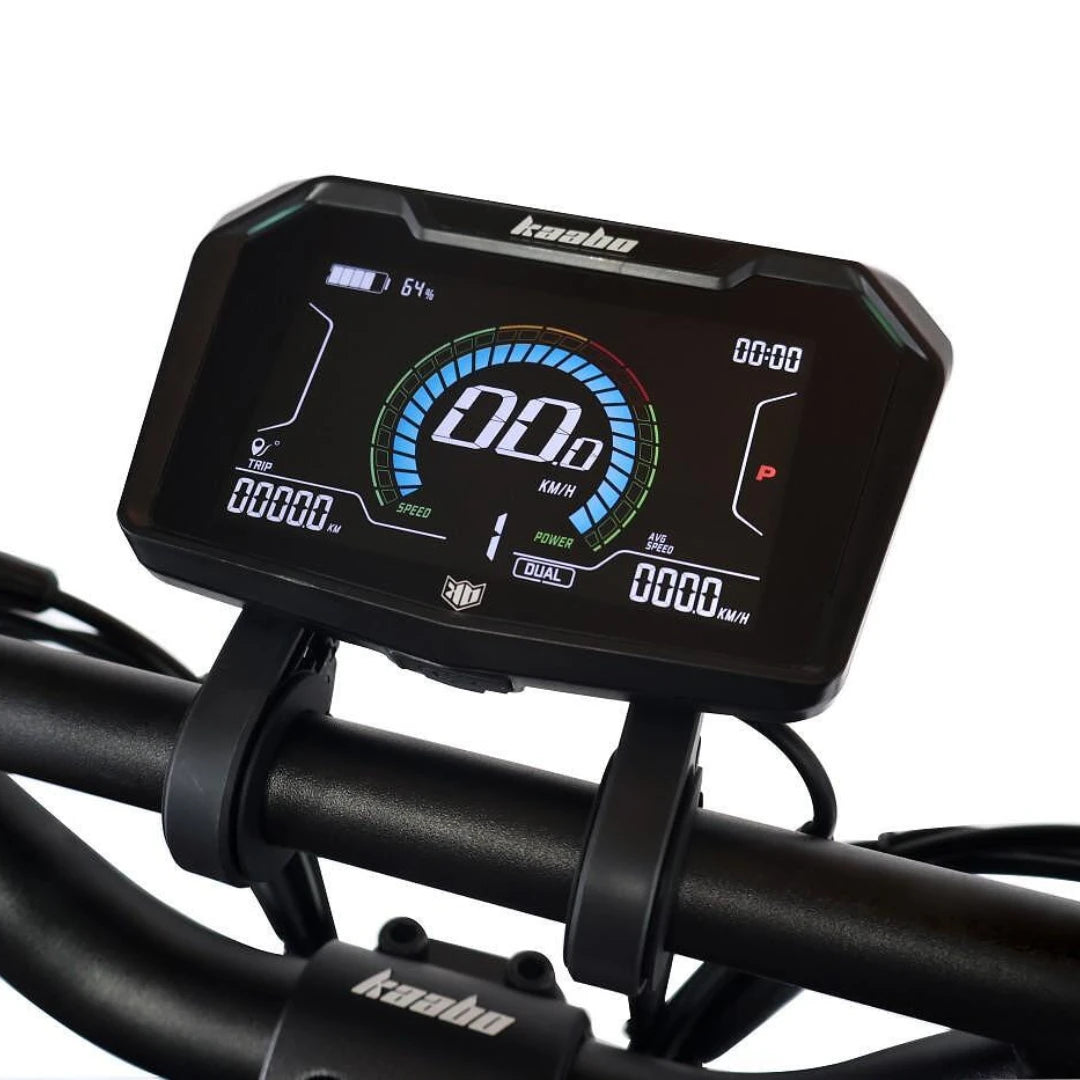

The Kaabo Wolf Warrior X MAX provides a superior ride experience through its advanced suspension system, featuring a patented front hydraulic shock absorber and a C-type rear spring shock. This combination masterfully absorbs impacts on any terrain. The ride is further stabilized by versatile 10x3.0-inch all-terrain tires. The cockpit is equipped with an upgraded central display, offering seamless operation with NFC functionality and a convenient 2A USB charging port.
-
Maintenance

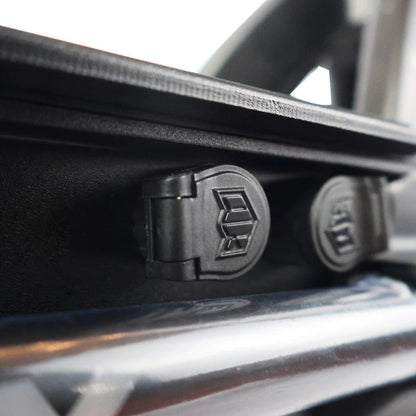

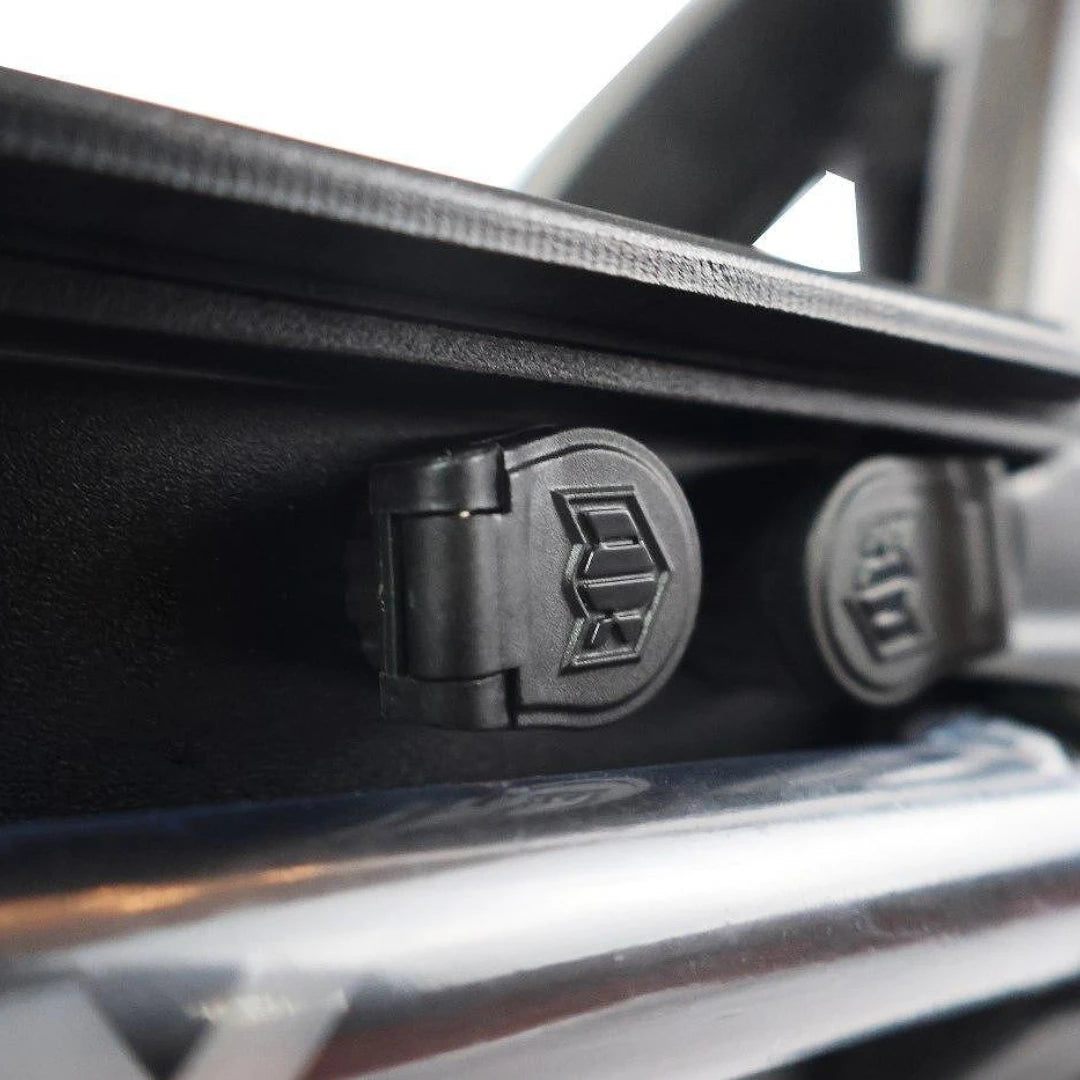

Designed for user-friendly ownership, the Kaabo Wolf Warrior X MAX simplifies maintenance tasks. The key innovation is its modular motor design, which, paired with separable rims, makes tire changes and motor servicing remarkably straightforward. The durable auto-flip waterproof charging port protects critical components from the elements. Standard maintenance involves routine checks of tire pressure and the hydraulic brake system to keep this high-performance electric scooter in optimal condition.
