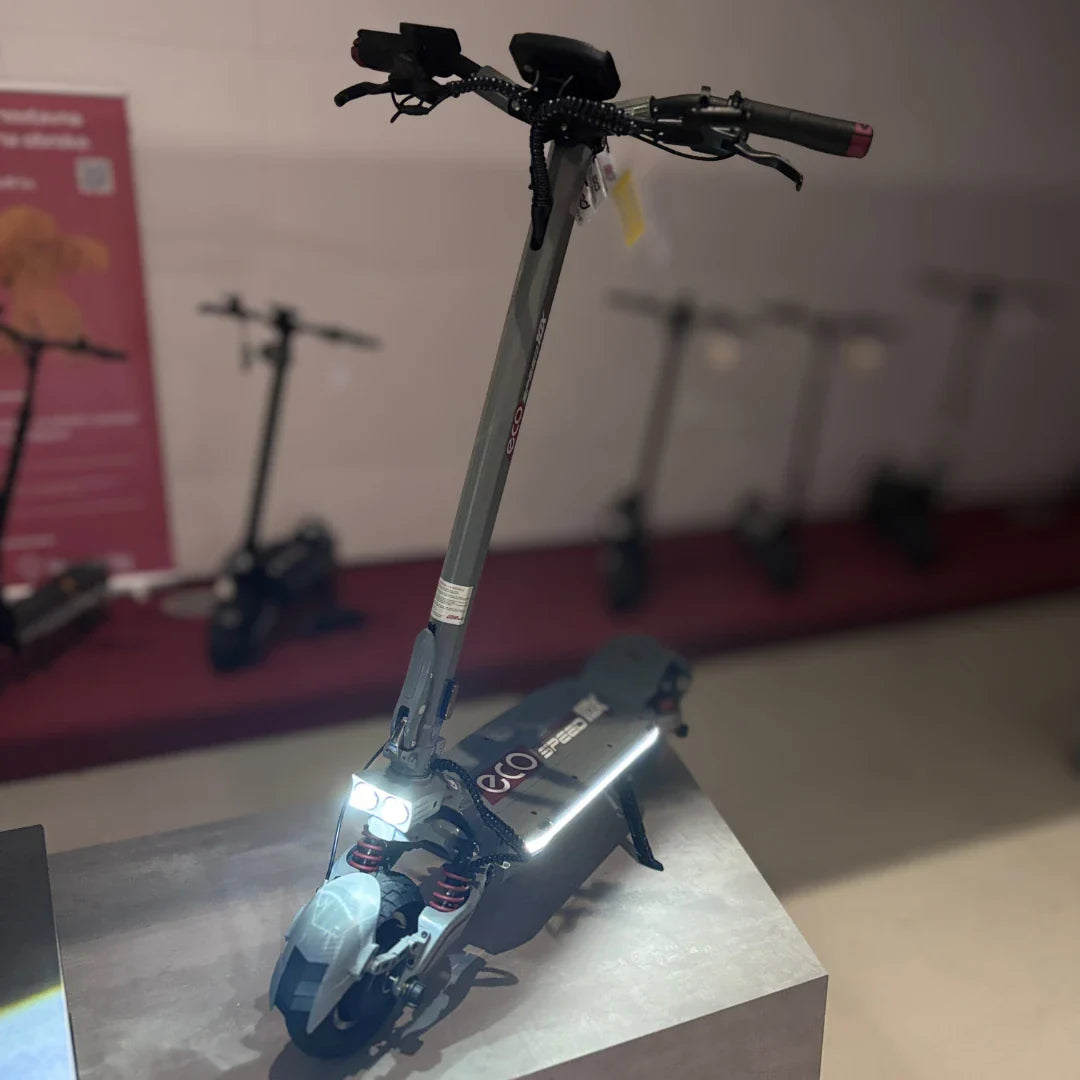

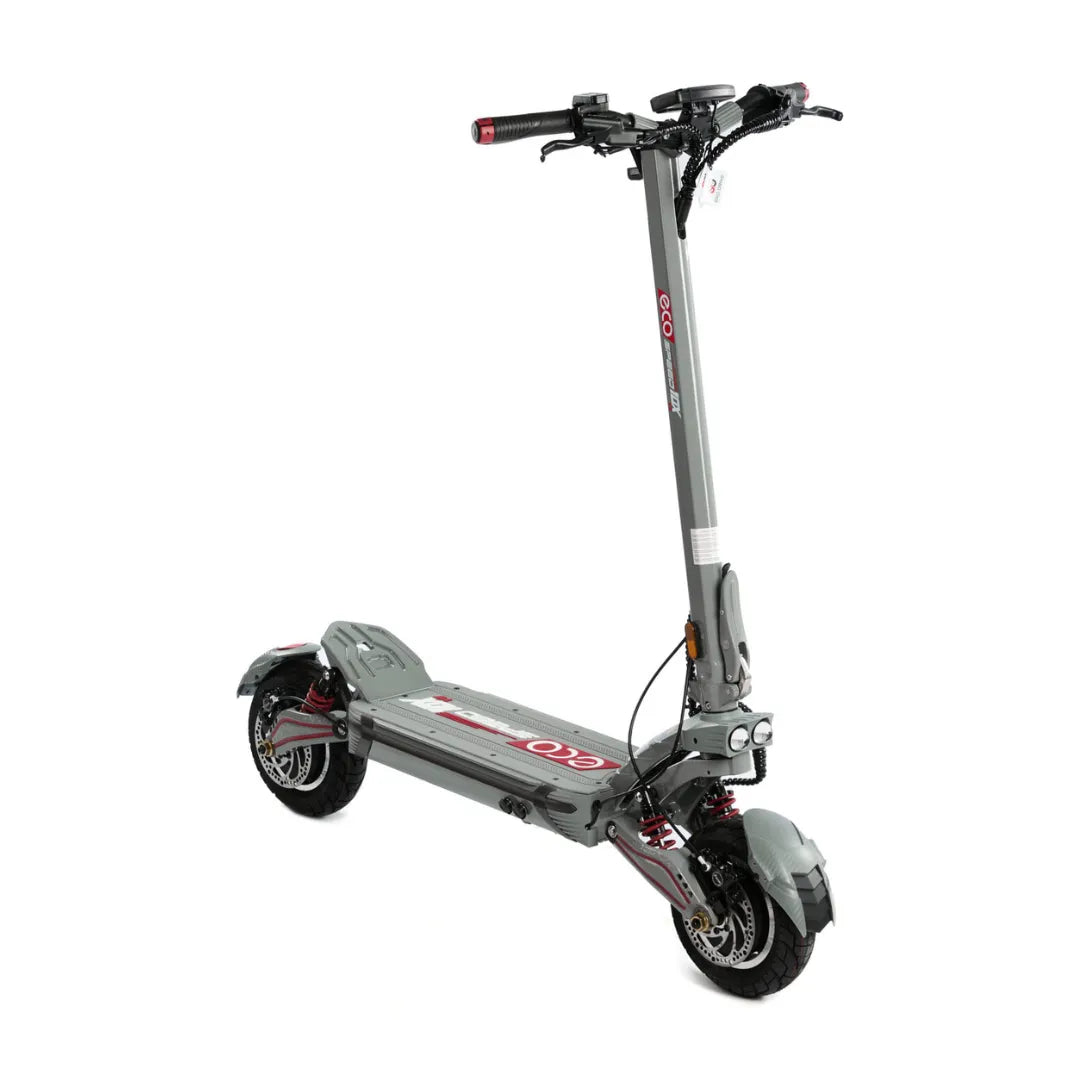

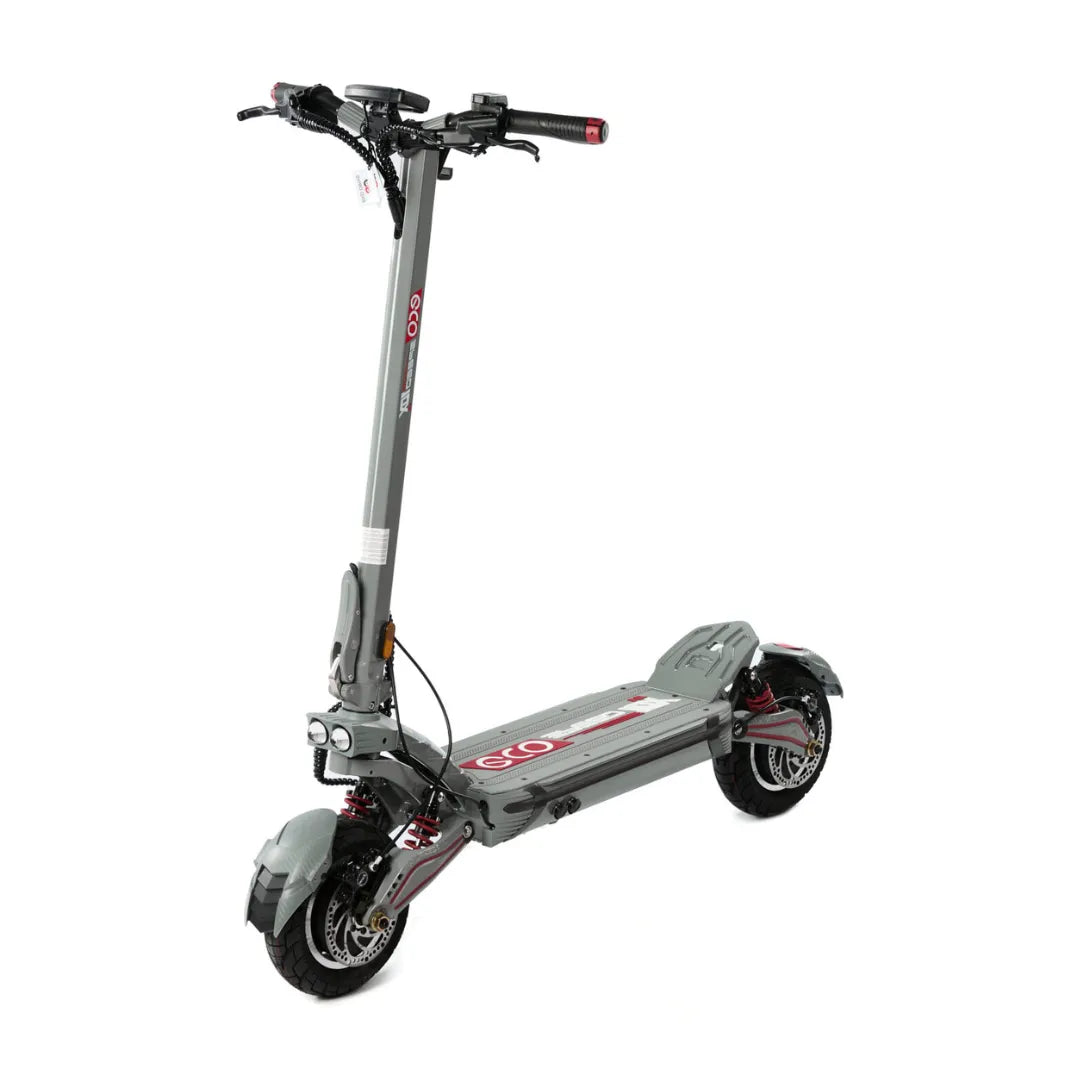

Off-road electric scooter
ECO Speed 10X V2
Ride the Future with Comfort and Power
Specifications of
ECO Speed 10X V2
Motor | |
---|---|
Drivetrain | Dual drive |
Nominal Power | 2 x 1.400 W |
Maximum Power | 2 x 2.000 W |
Speed | |
Limited Speed | 25 km/h |
Speed Modes | 3 speed modes |
Maximum Incline Angle | 35° |
Battery | |
Maximum Range | 60 km / 100 km |
Battery Capacity | 20.8 Ah |
Battery Voltage | 60 V |
Charging Time | 4-5 hours (2A charger) / 10-11 hours (5A charger) |
Charger Type | 1x Standard charger 2A (upgrade option: Fast charger 5A) |

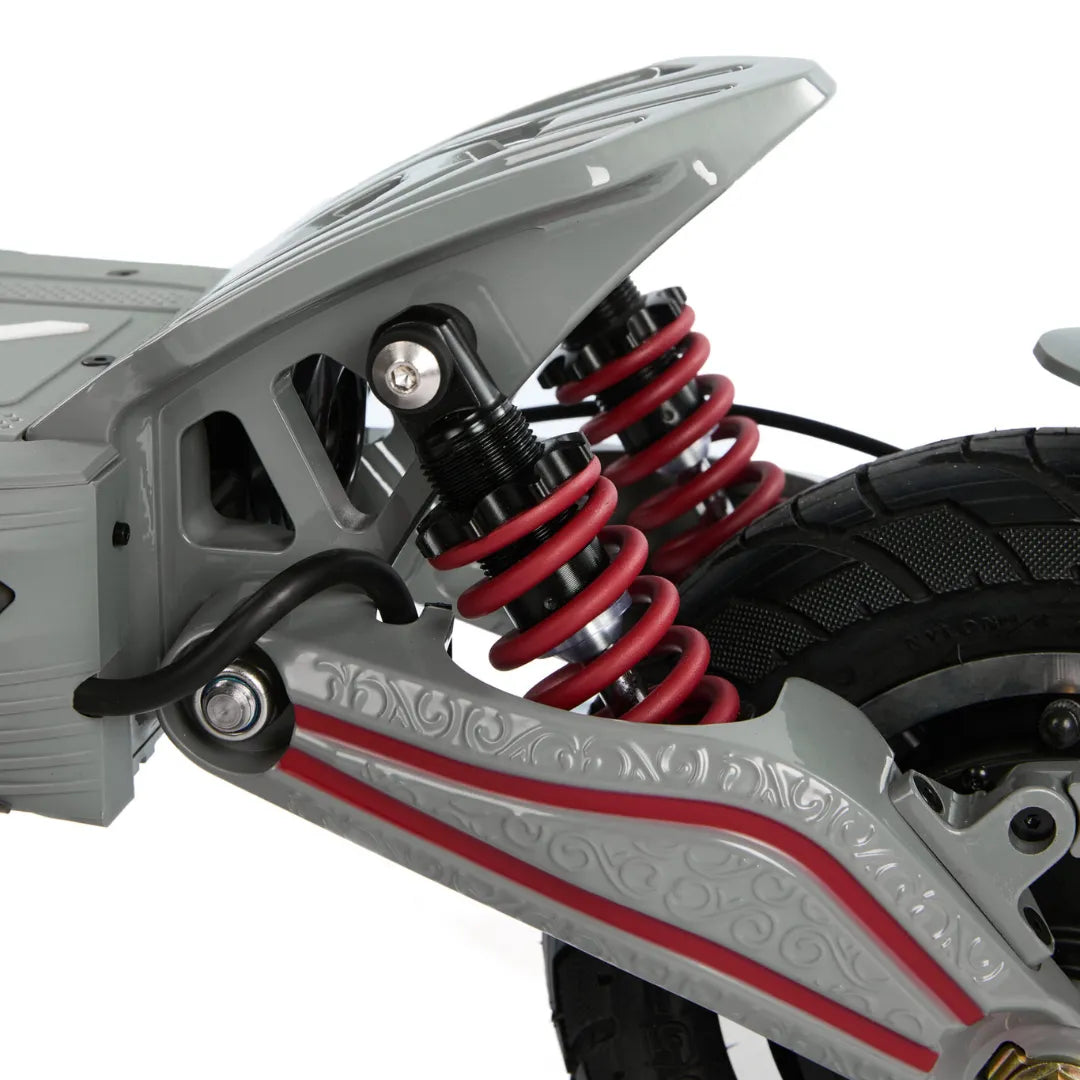

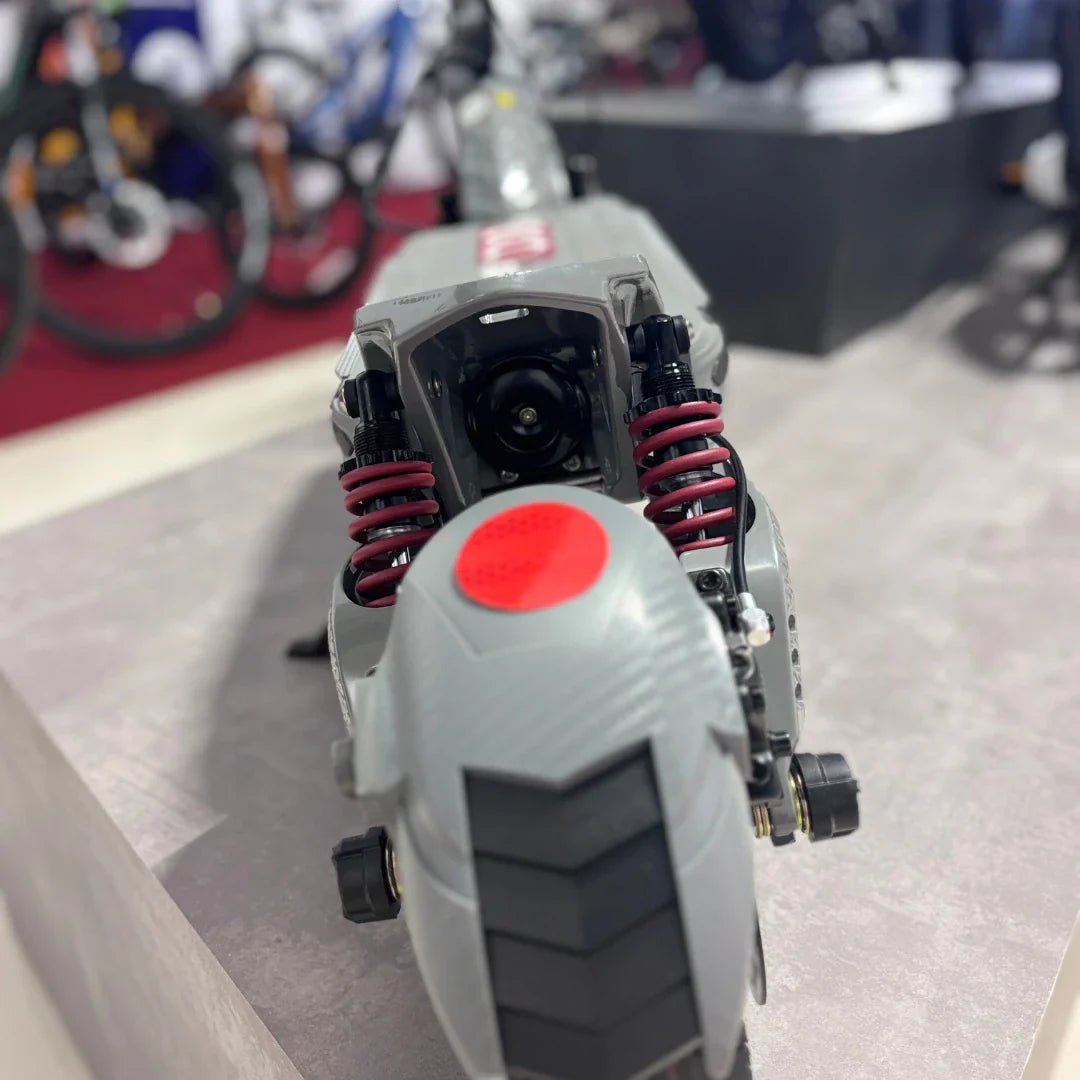

Suspension | |

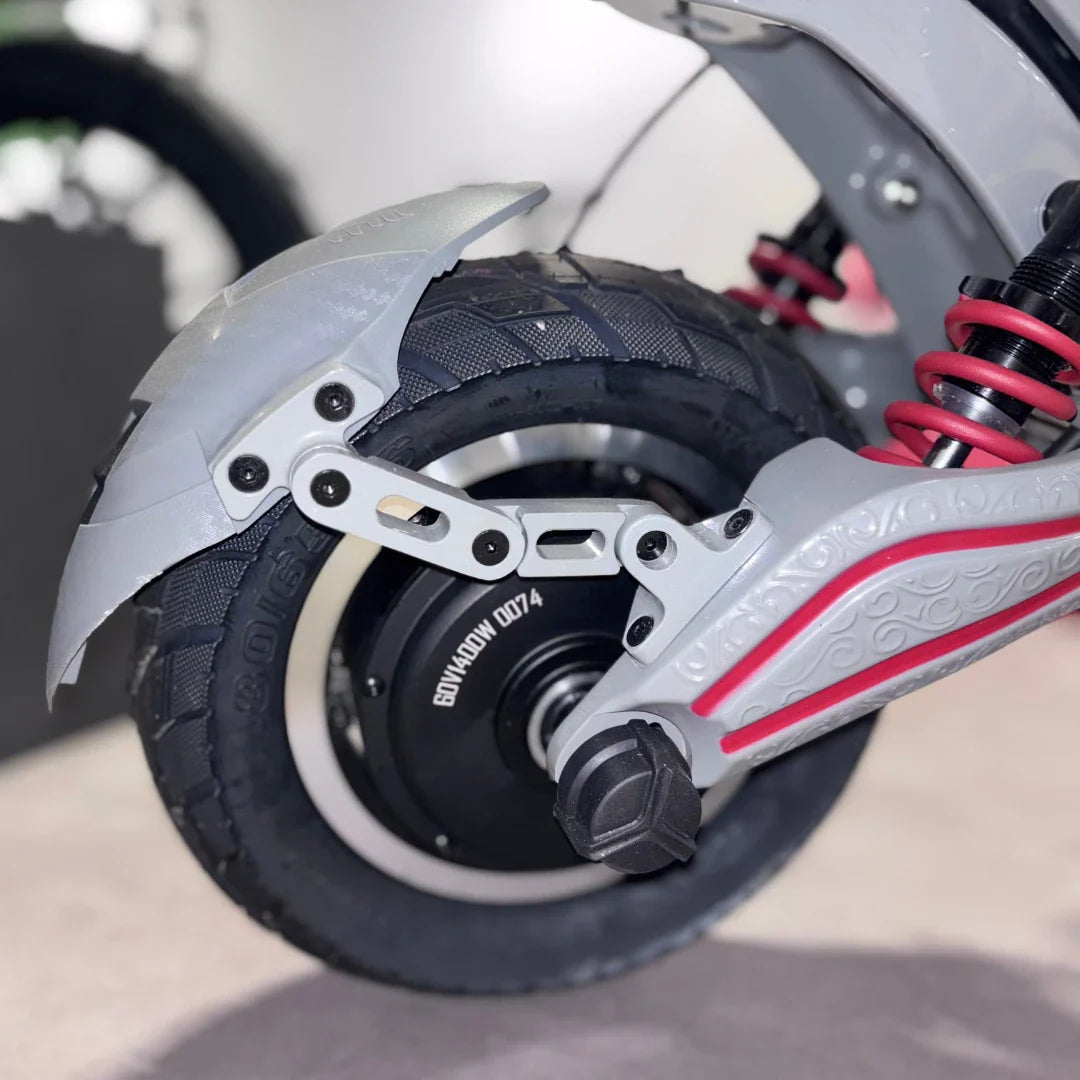

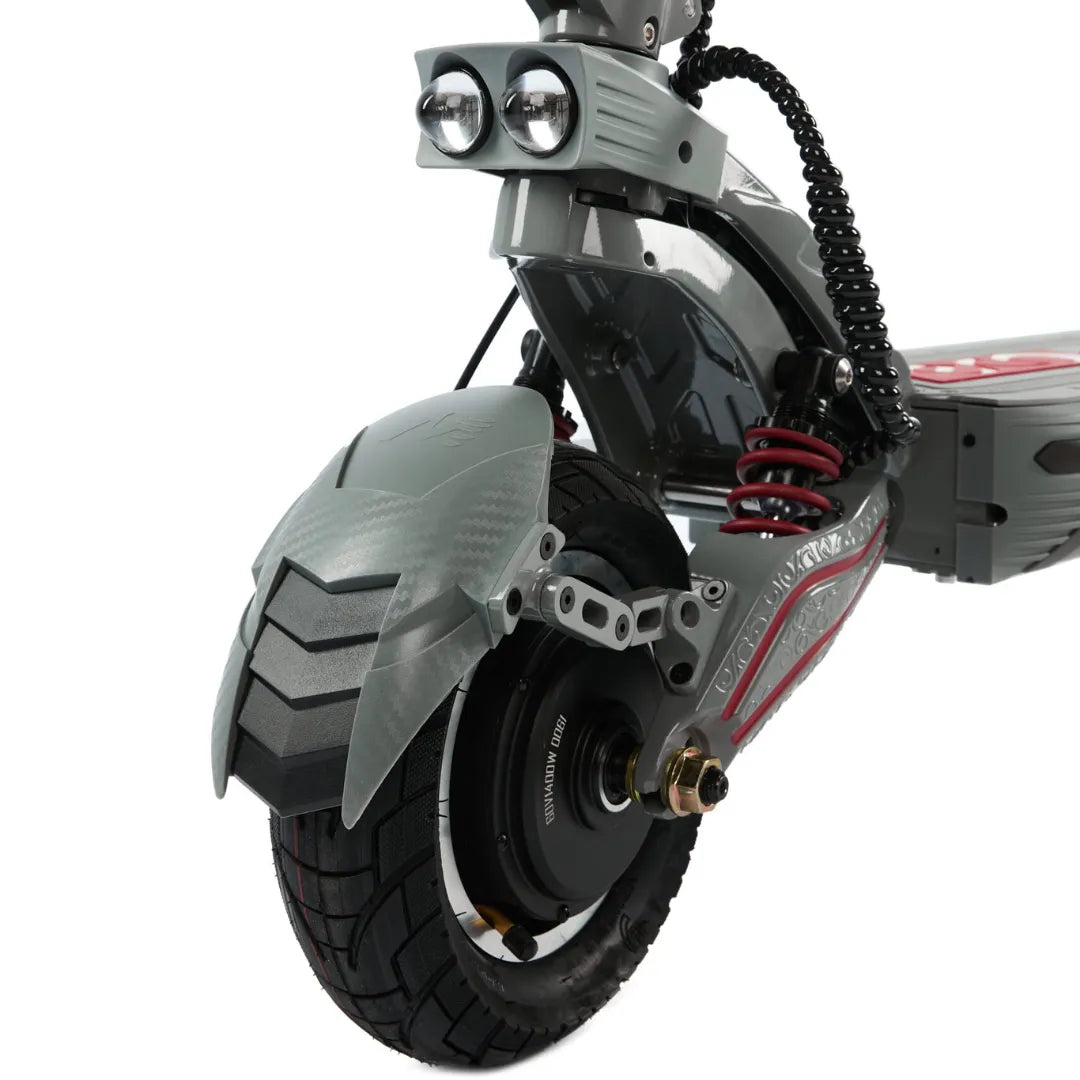

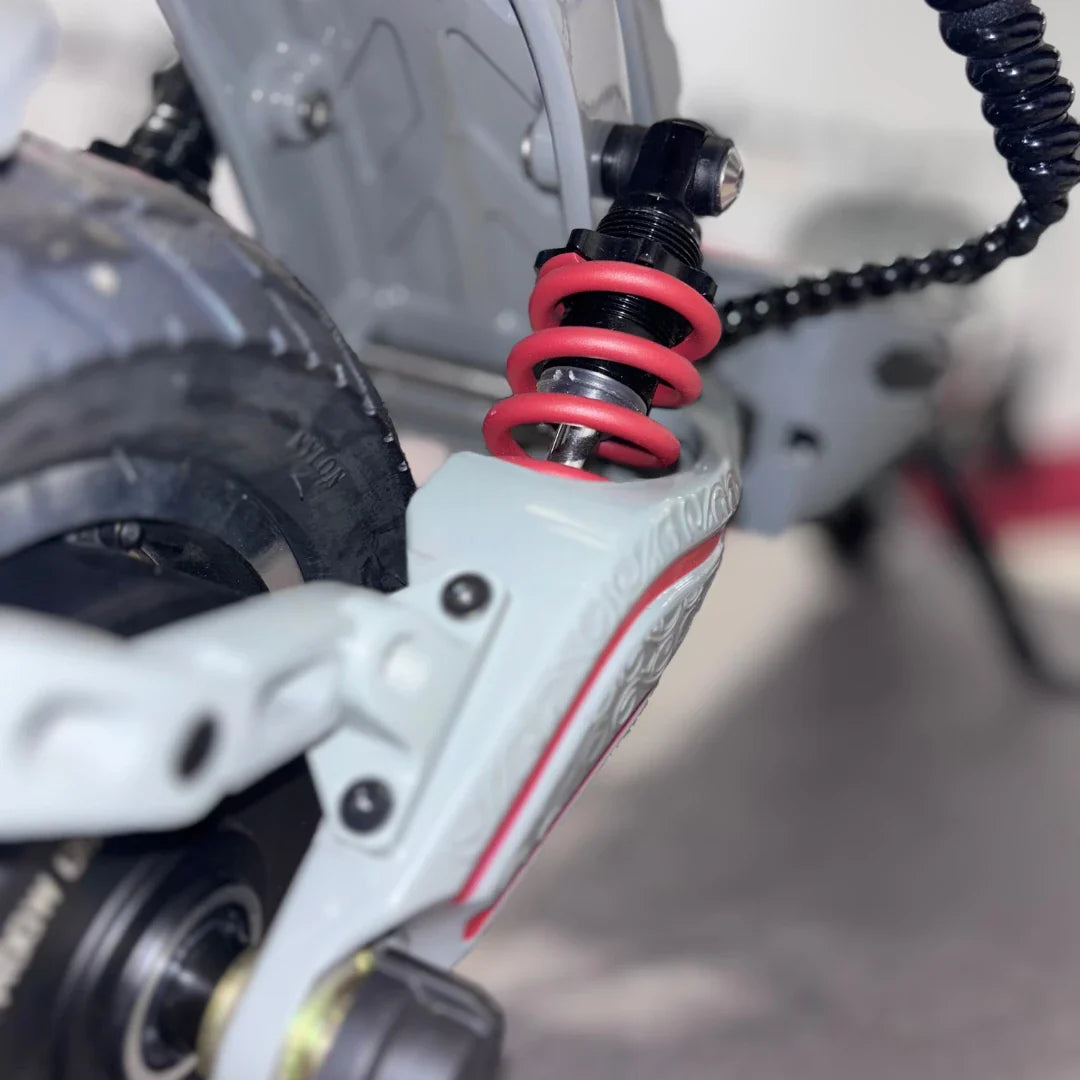

Front Suspension | Double spring damping |

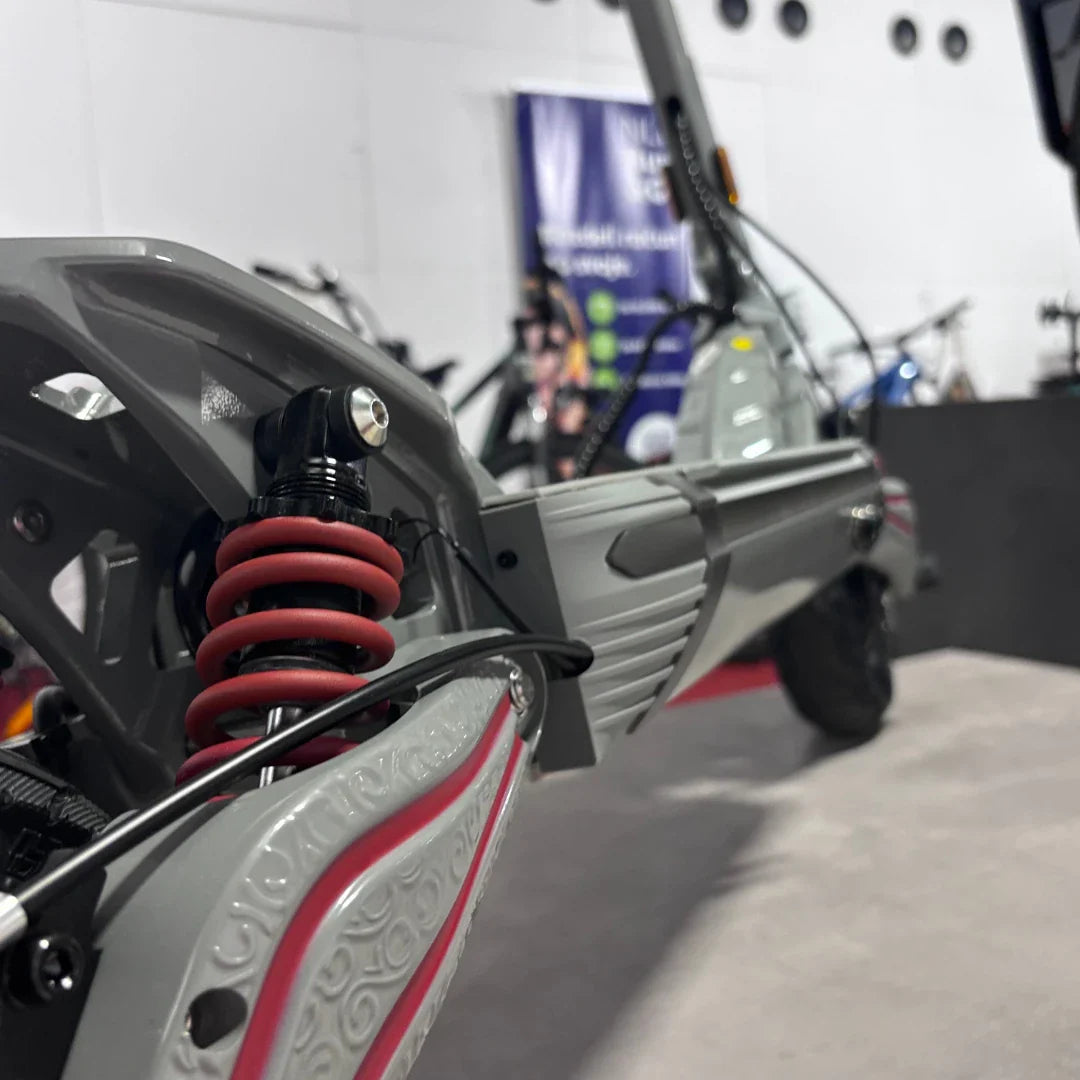

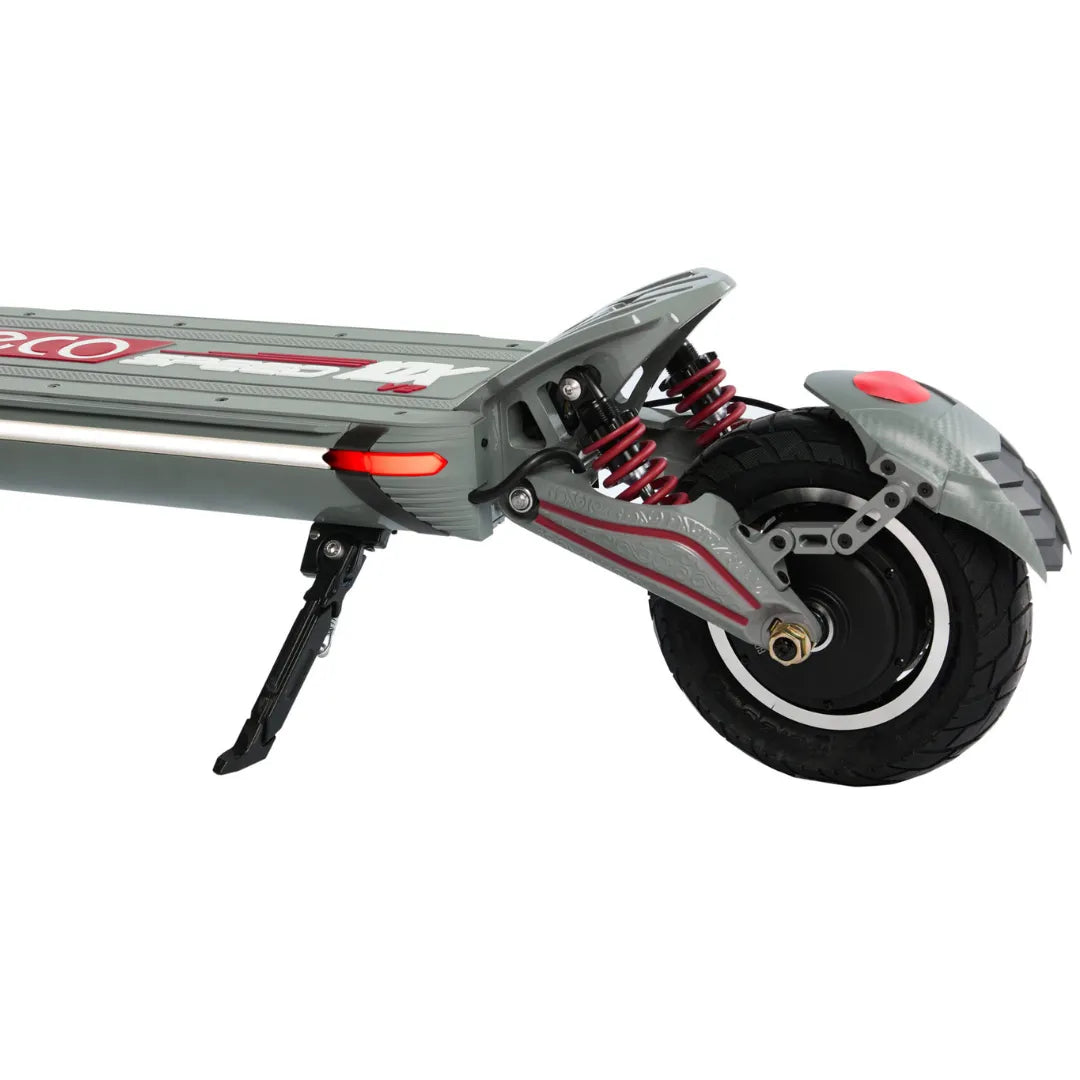

Rear Suspension | Double spring damping |
Brakes | |

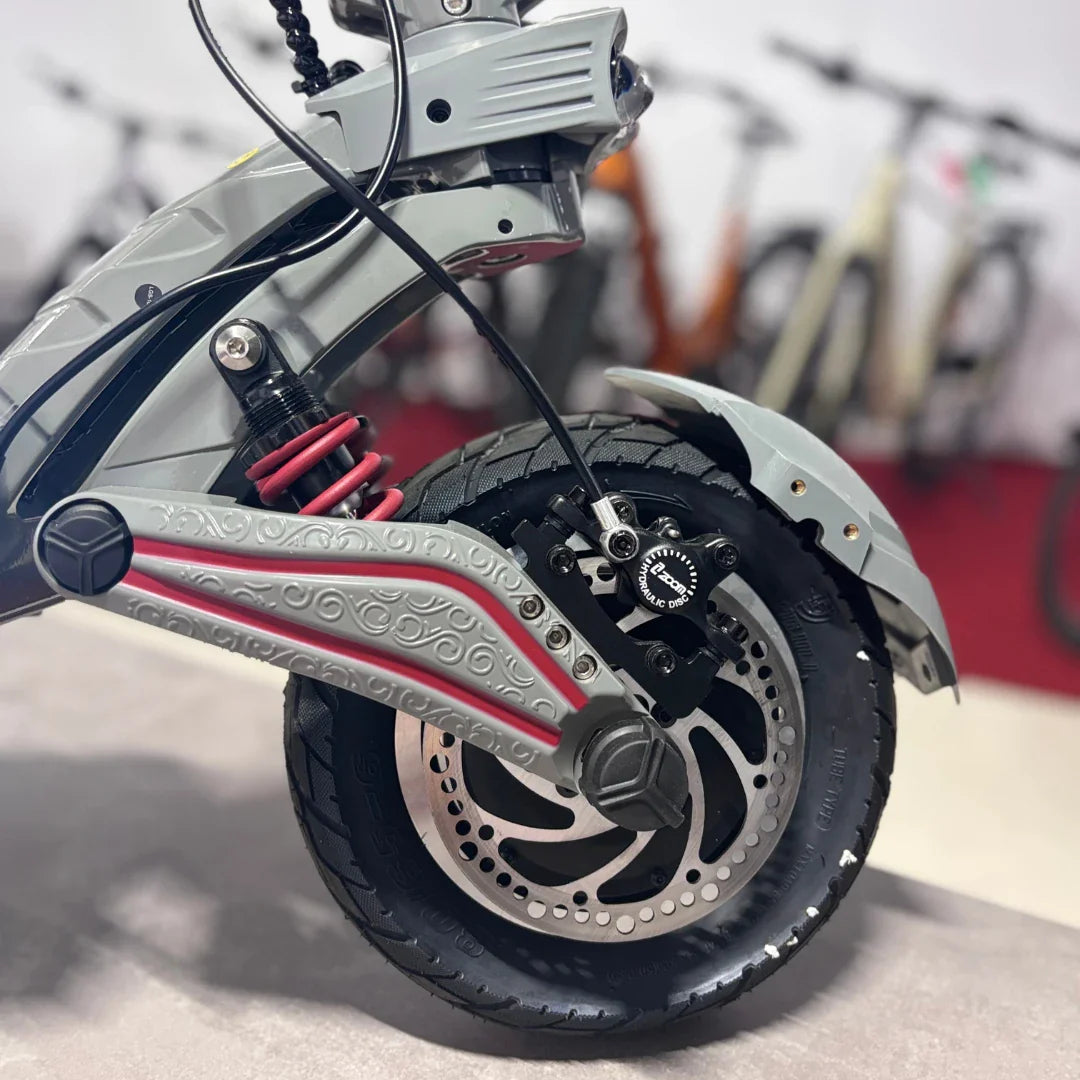

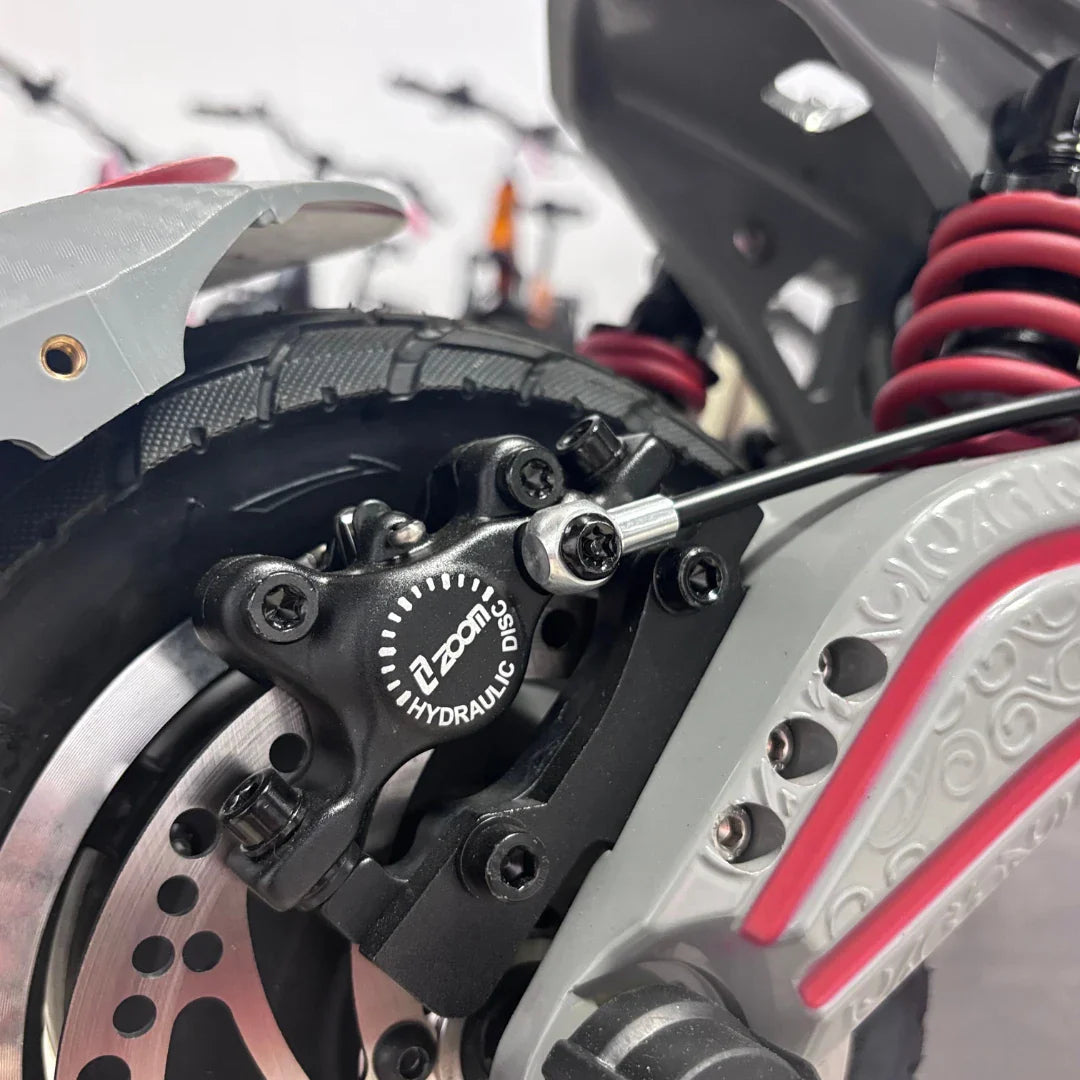

Front Brake | Disc hydraulic 140 mm + electric brakes |

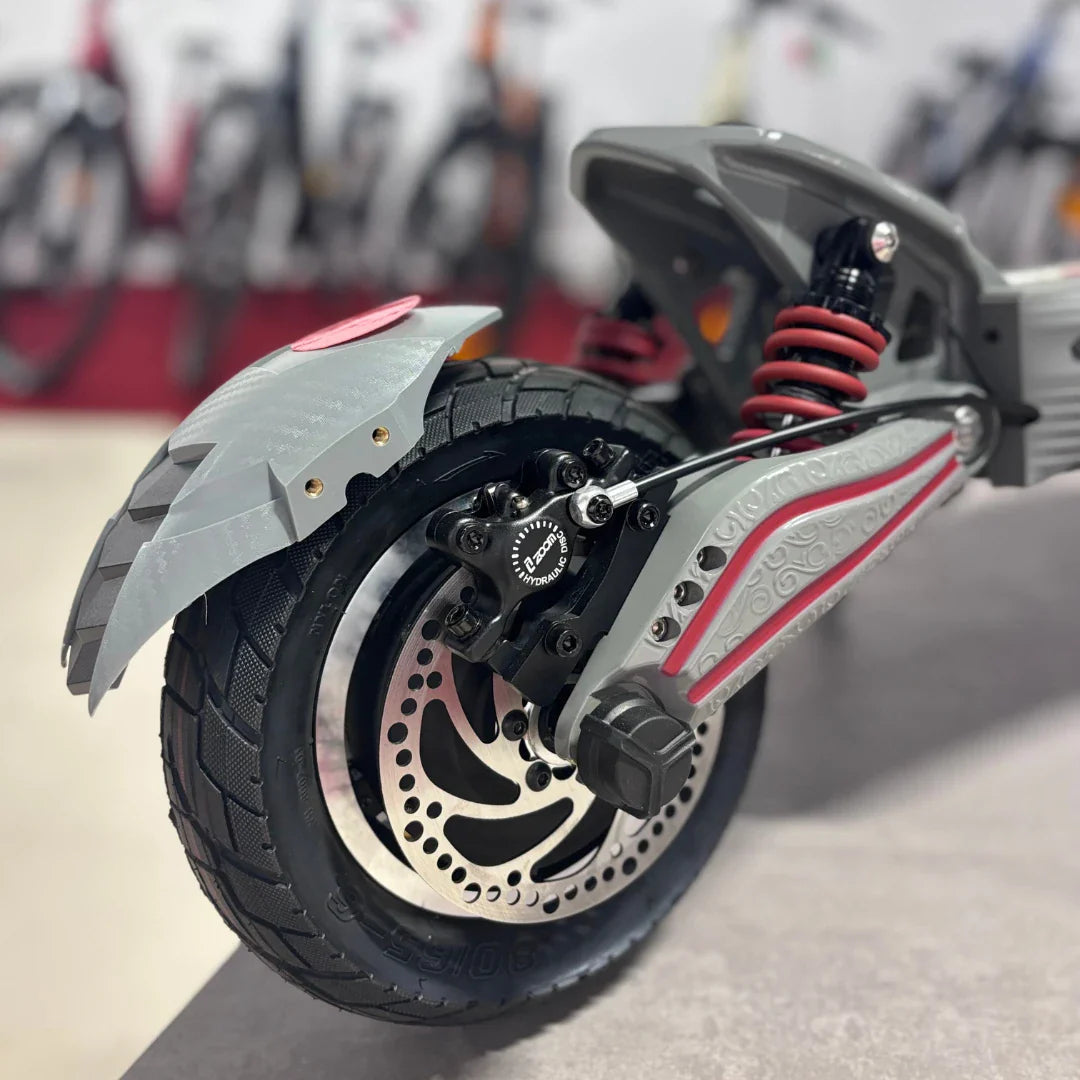

Rear Brake | Disc hydraulic 140 mm + electric brakes |
Tires | |
Tire Type | Inflatable |
Front Wheel Size | 10 x 3.0" |
Rear Wheel Size | 10 x 3.0" |
Lighting | |

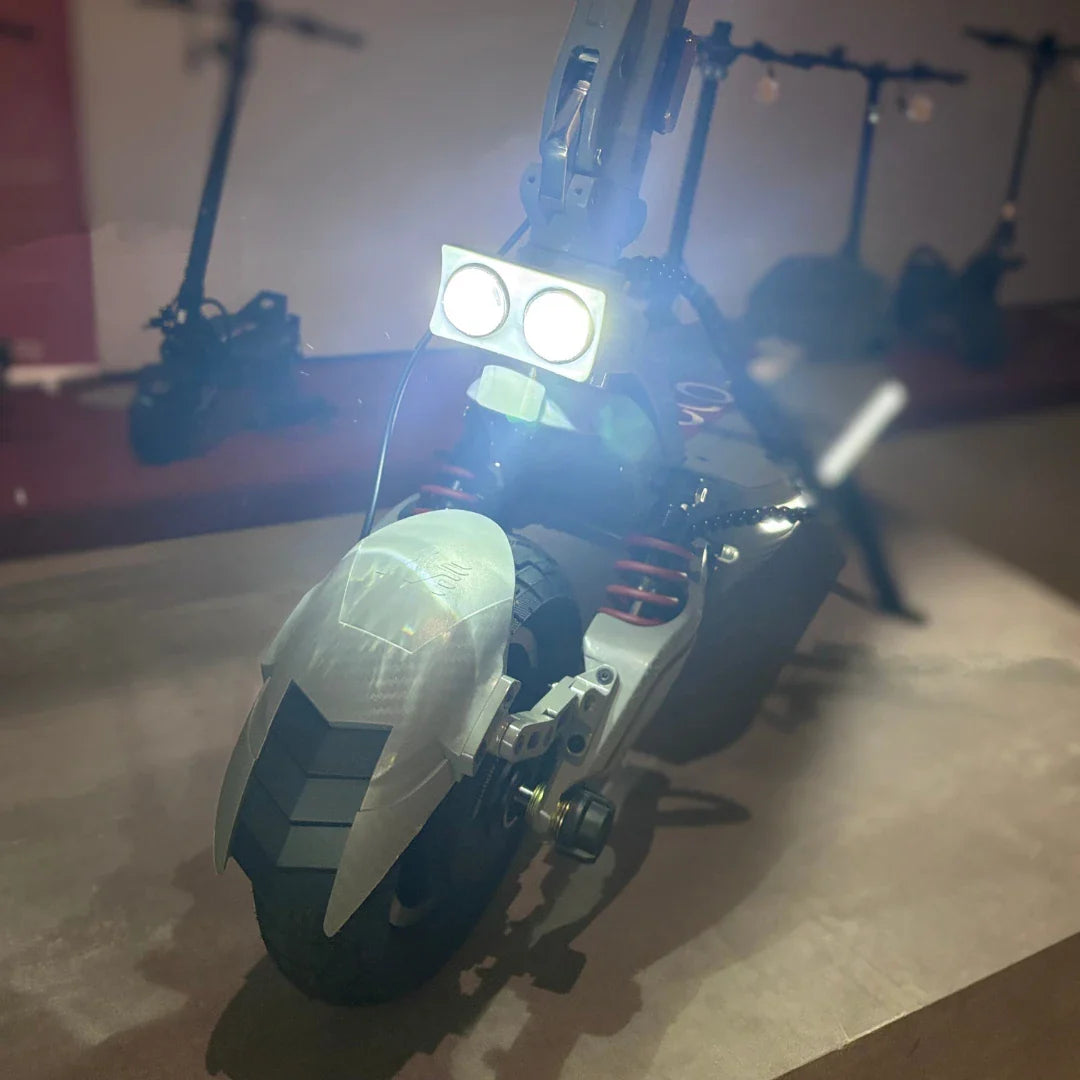

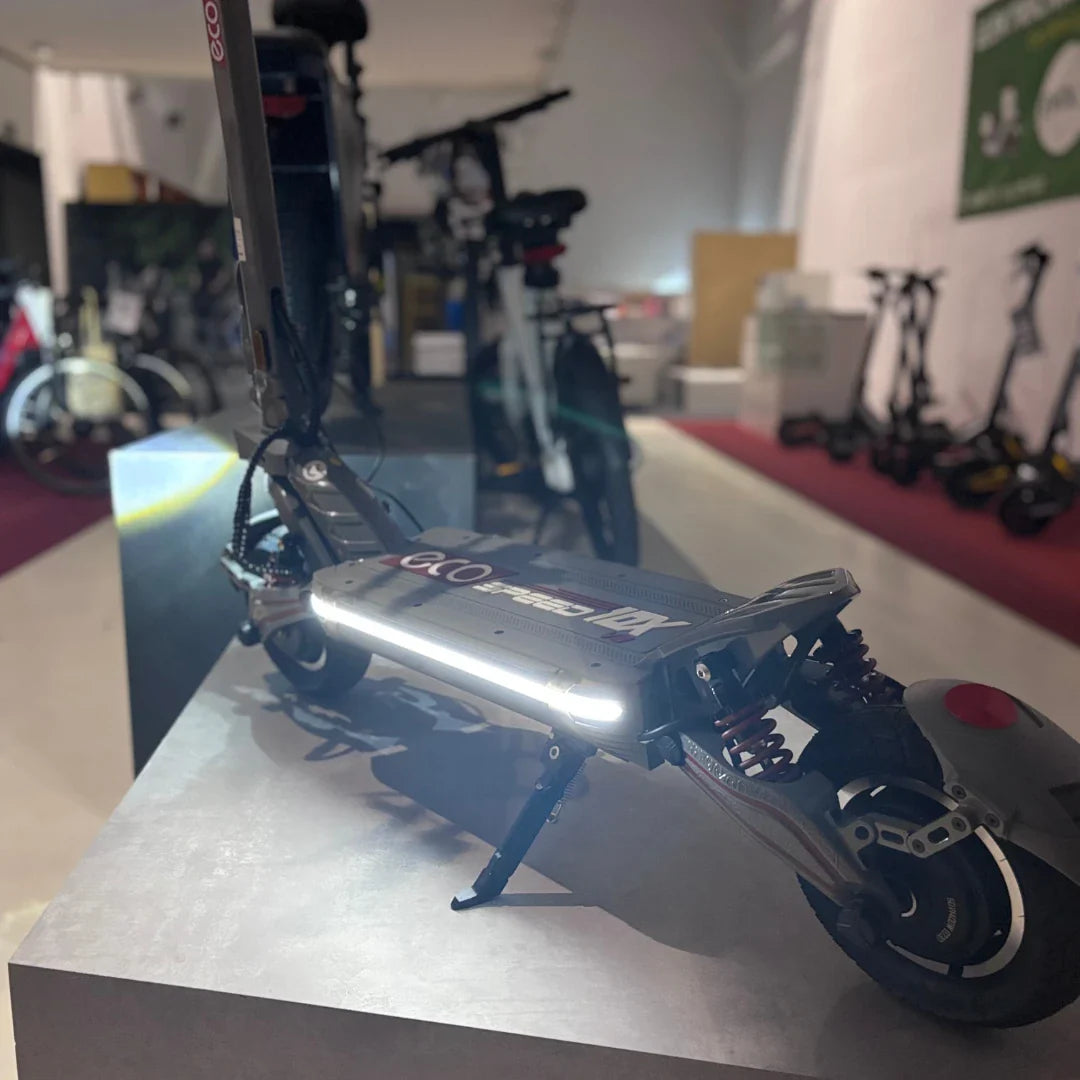

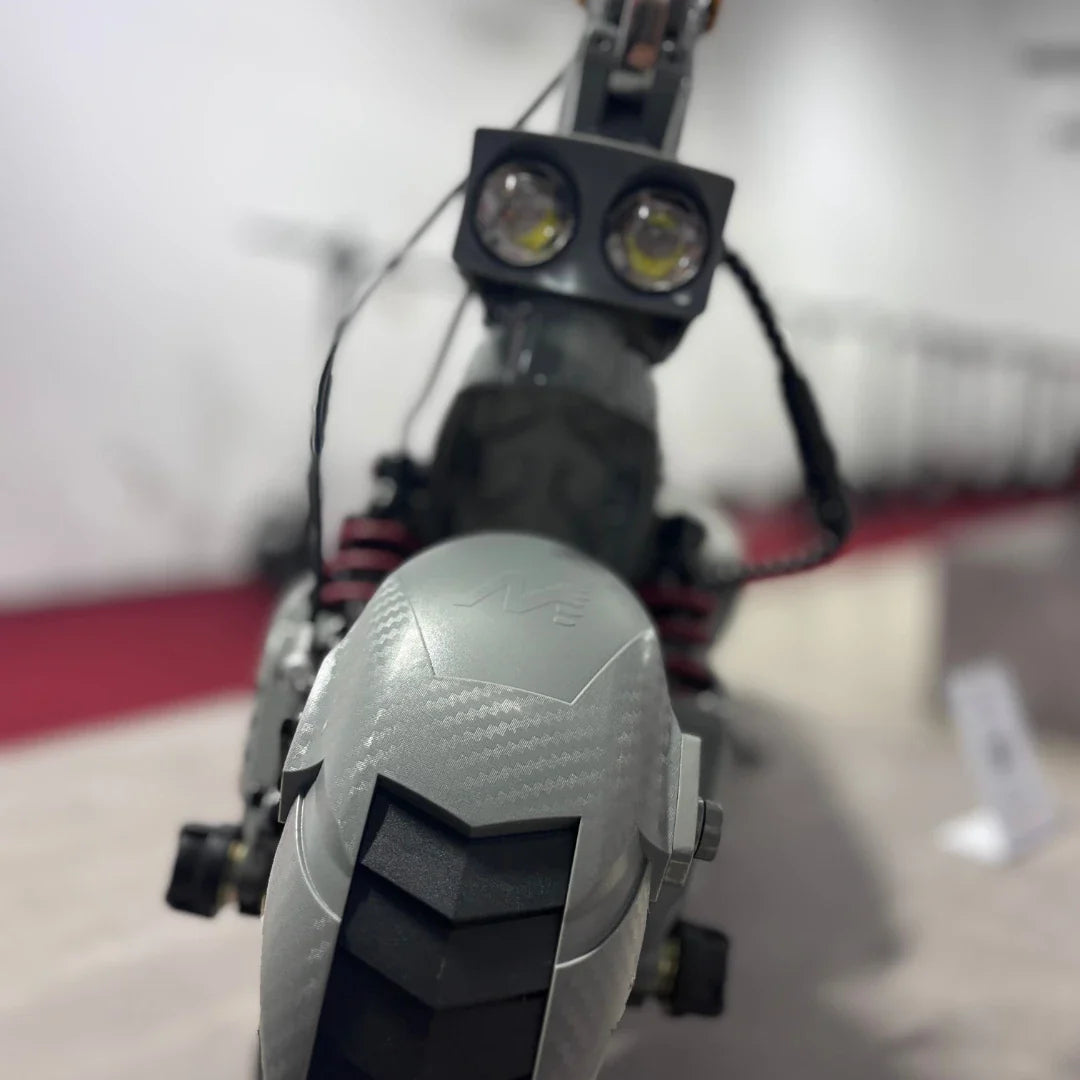

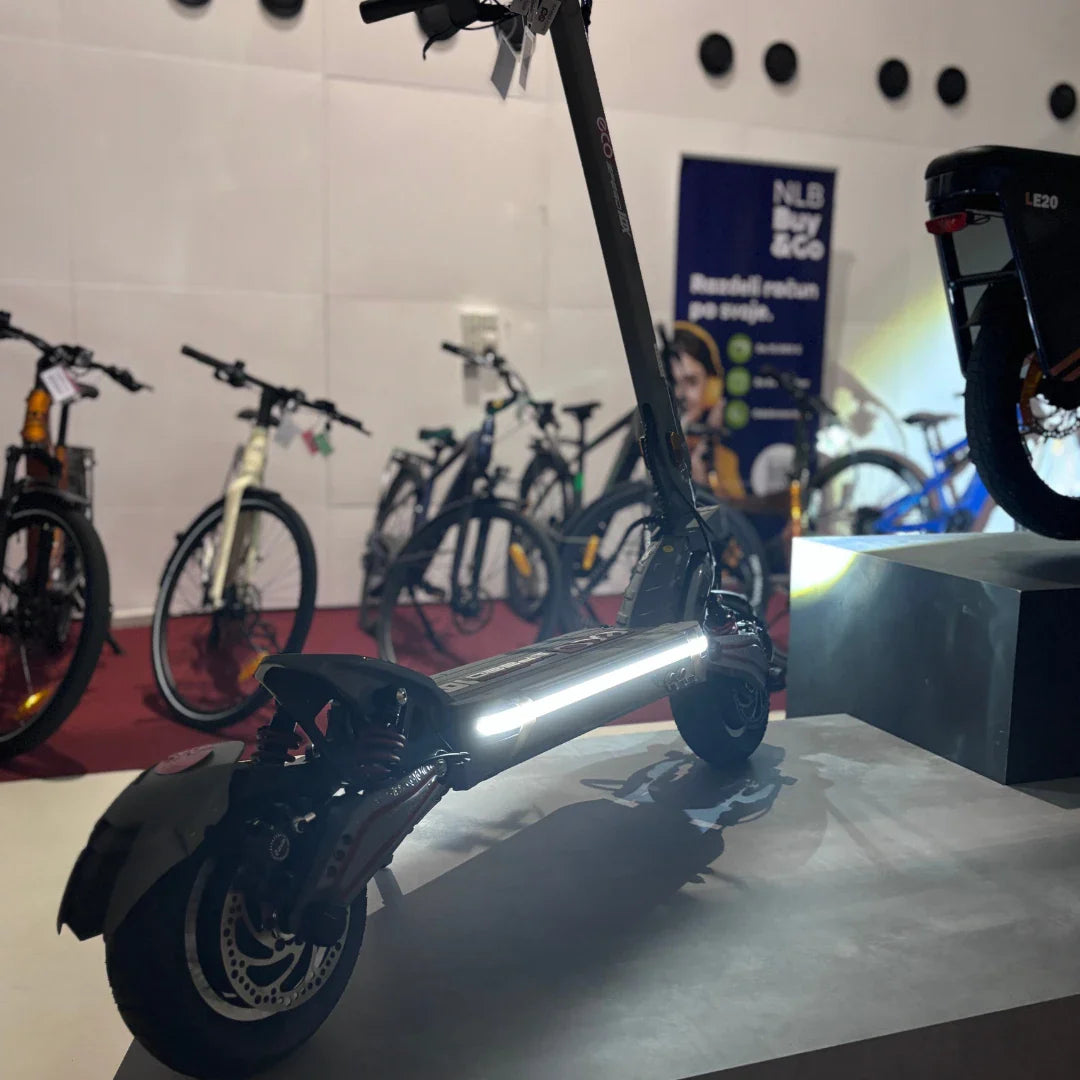

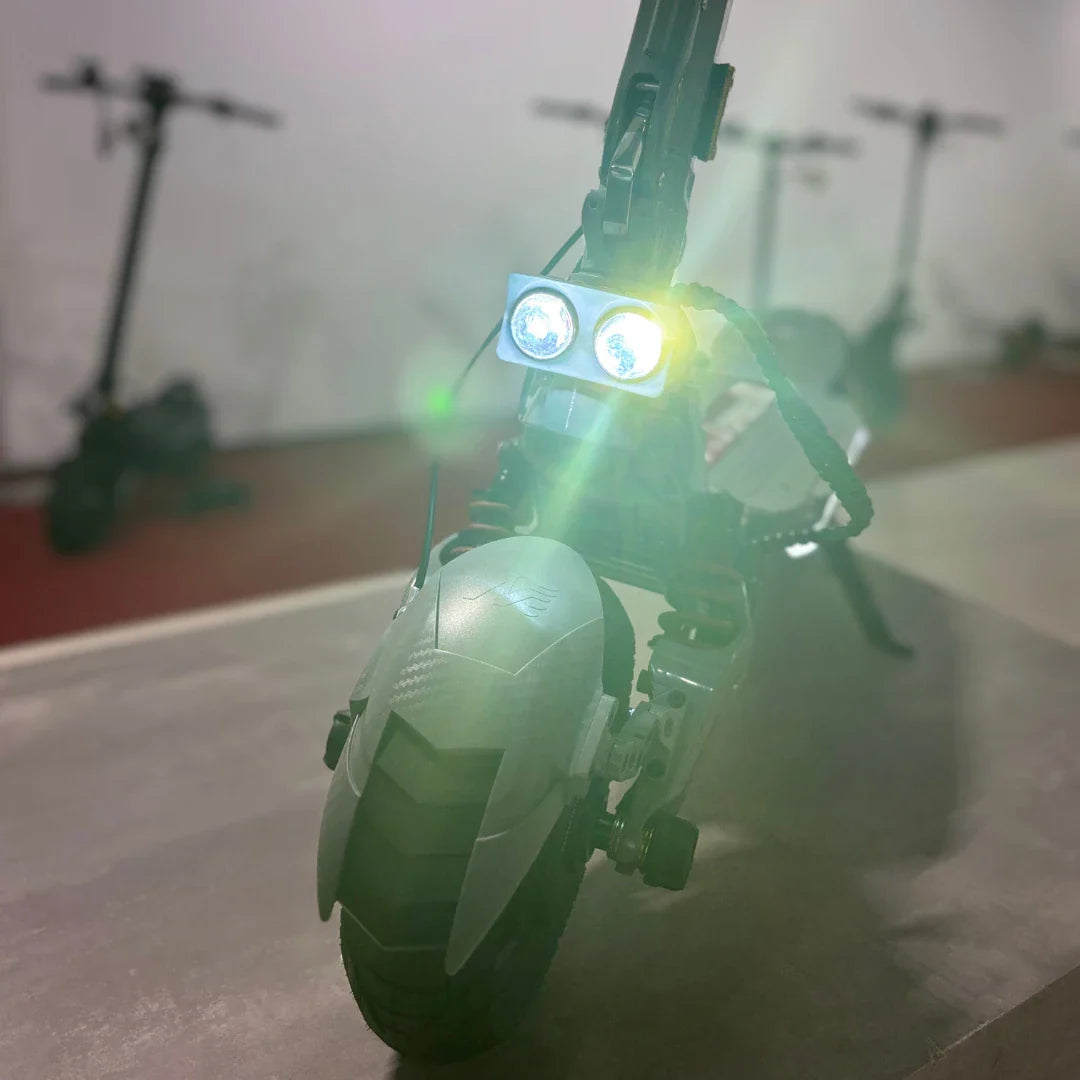

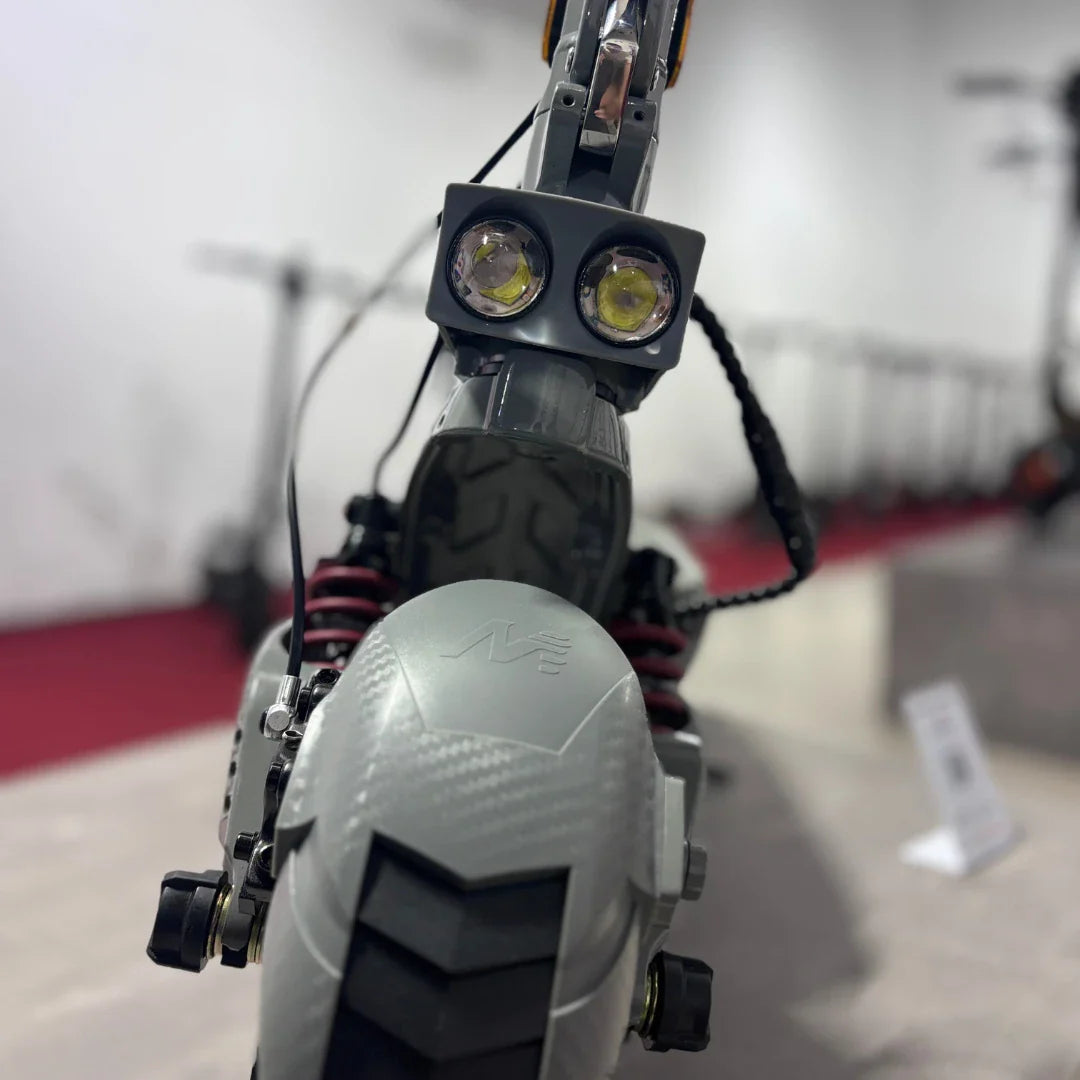

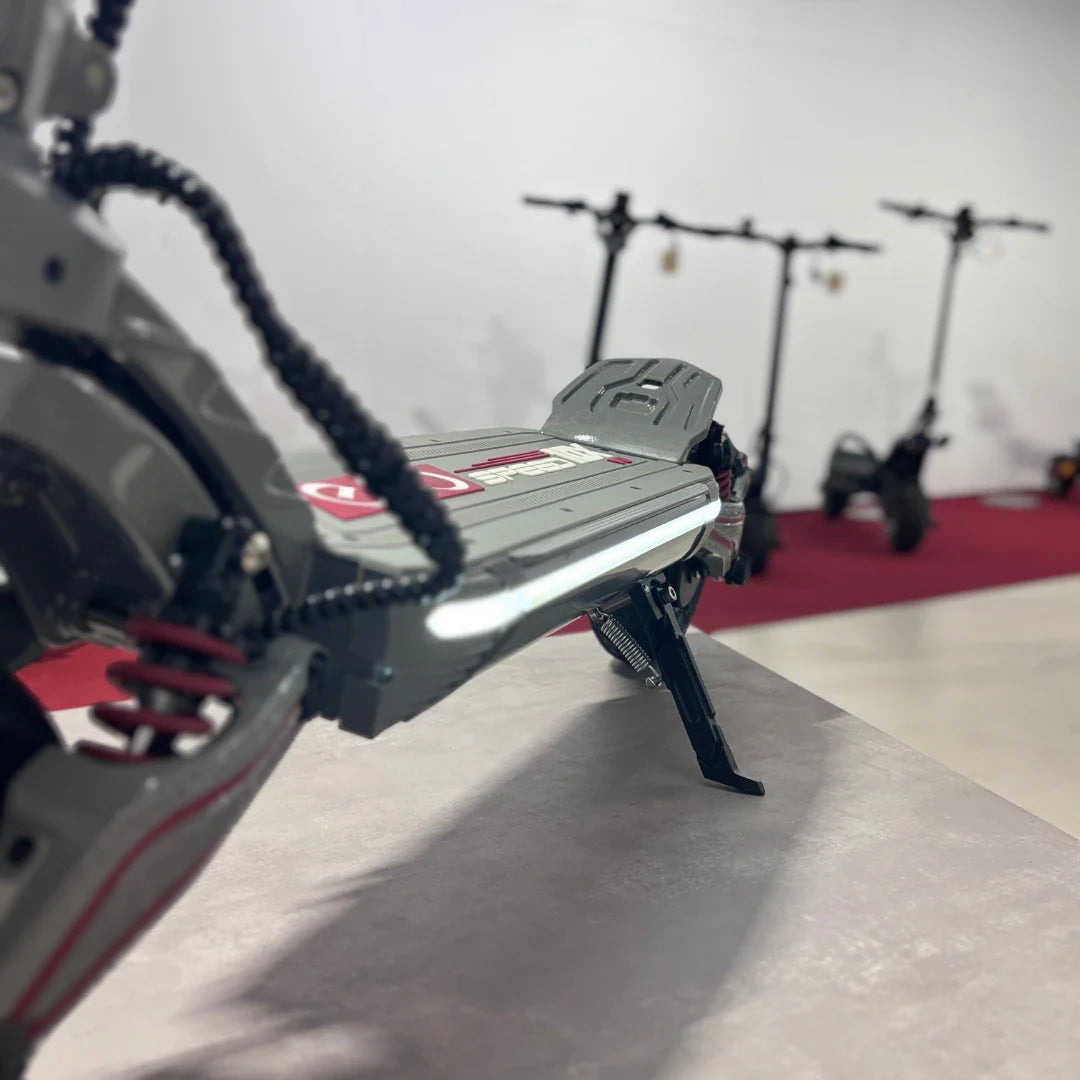

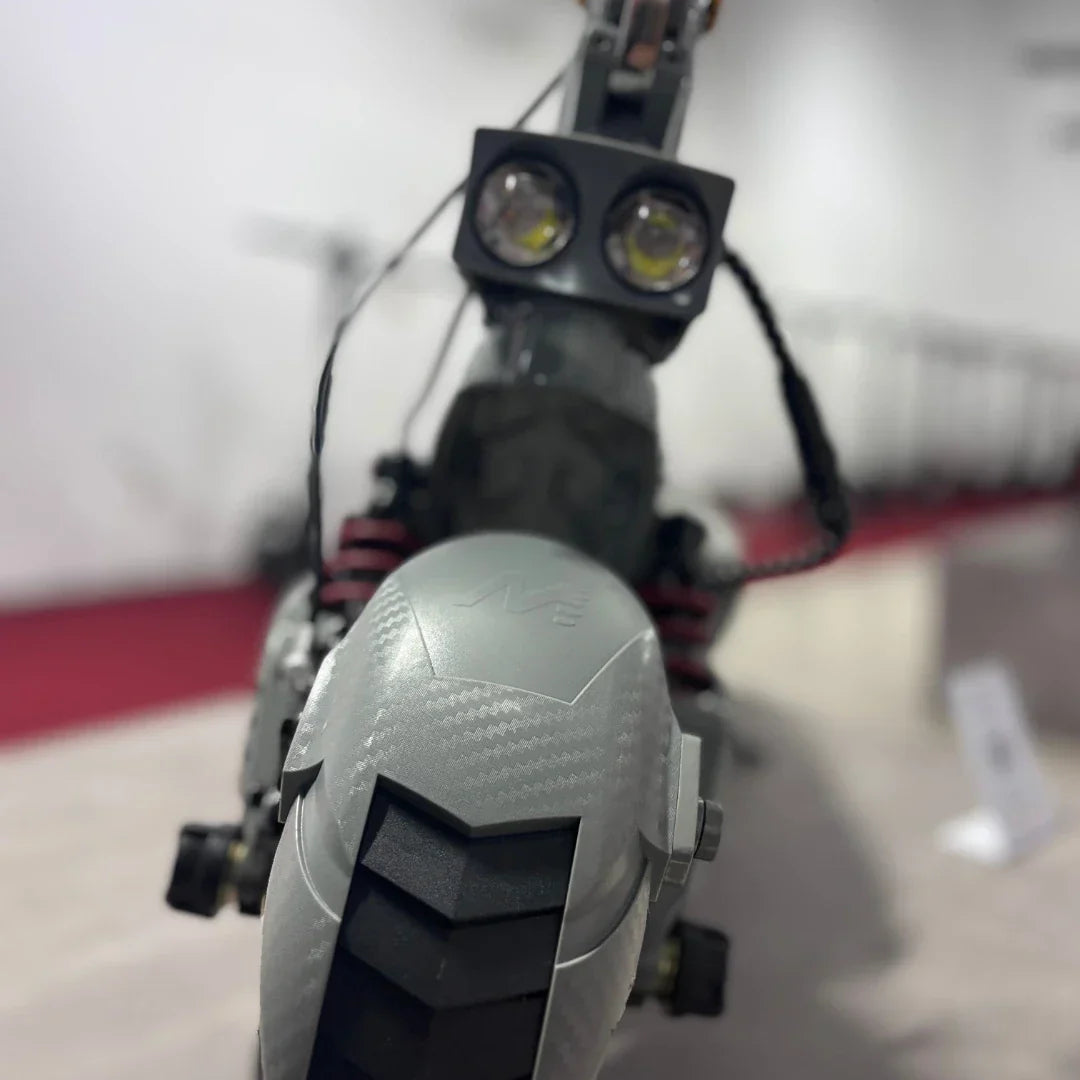

Double front LED, side LED illumination | |
Water Protection | |
IP54 - Protected from dust & light water splashes | |
Dimensions | |
Length | 128 cm |
Height | 127 cm |
Width | 65 cm |

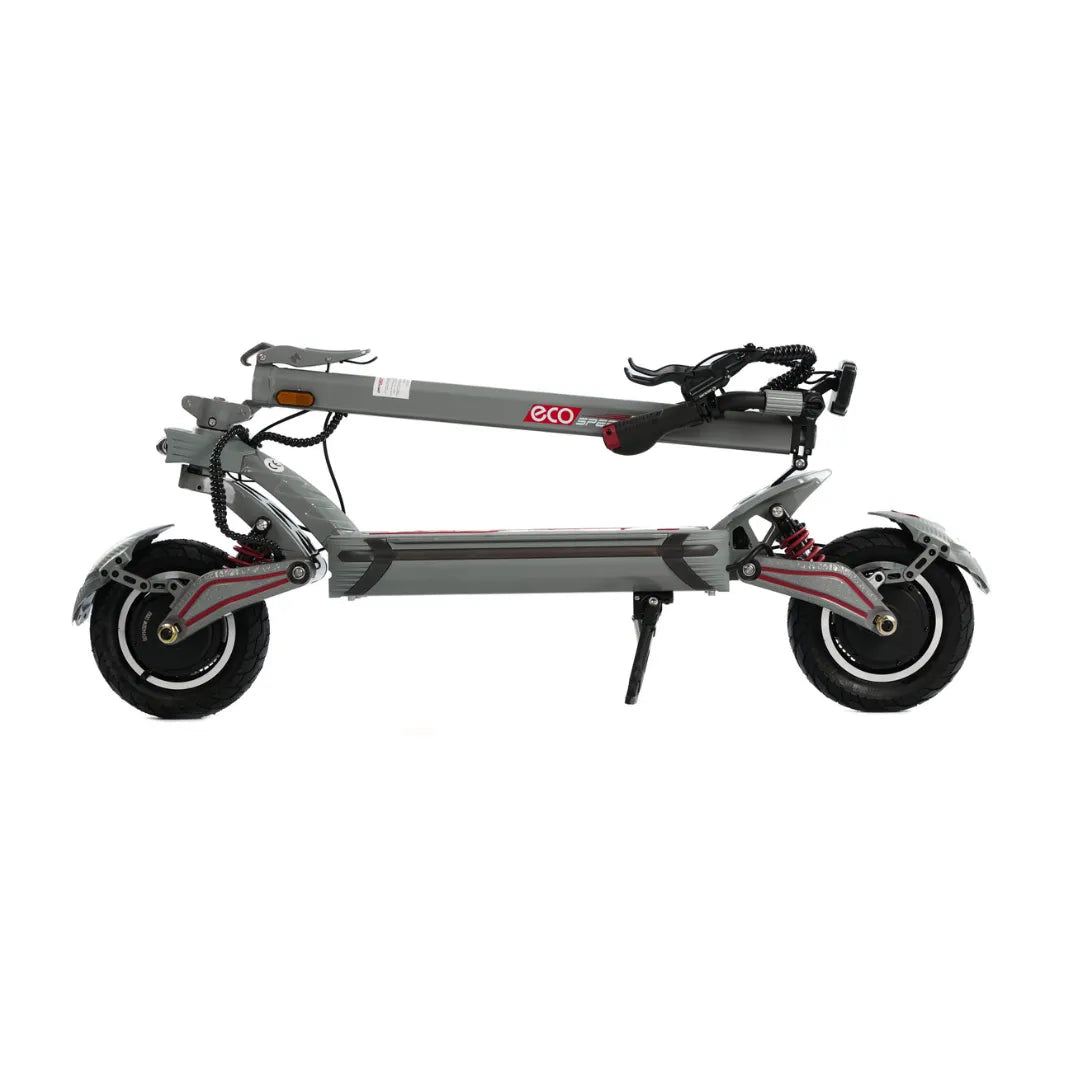

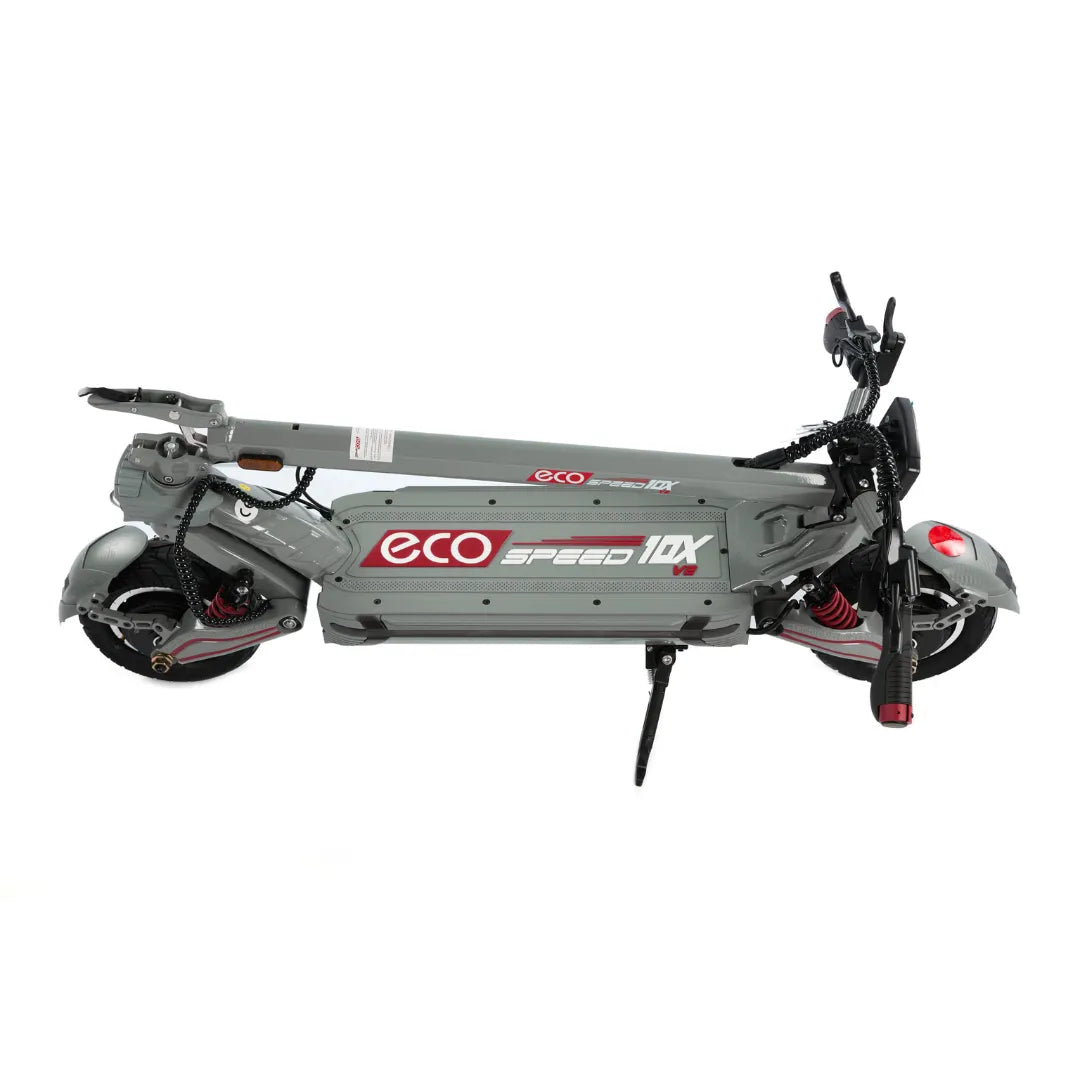

Folded | |
Length | 128 cm |
Height | 53 cm |
Width | 65 cm |
Other | |
Recommended Height | 160-190 cm |
Net Weight | 36 kg |
Load Capacity | 150 kg |
Warranty | 18 months |
-
Comfort & Design

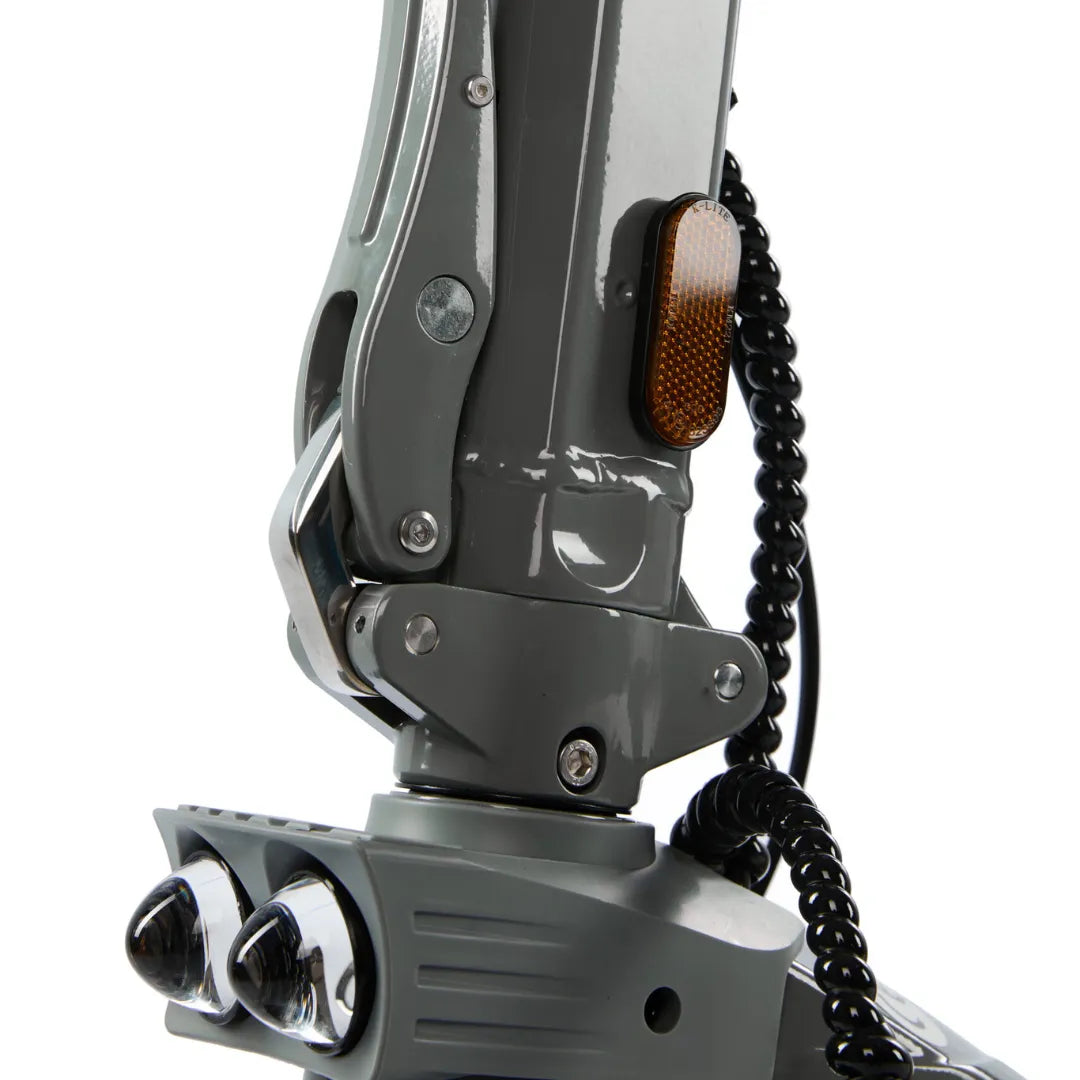

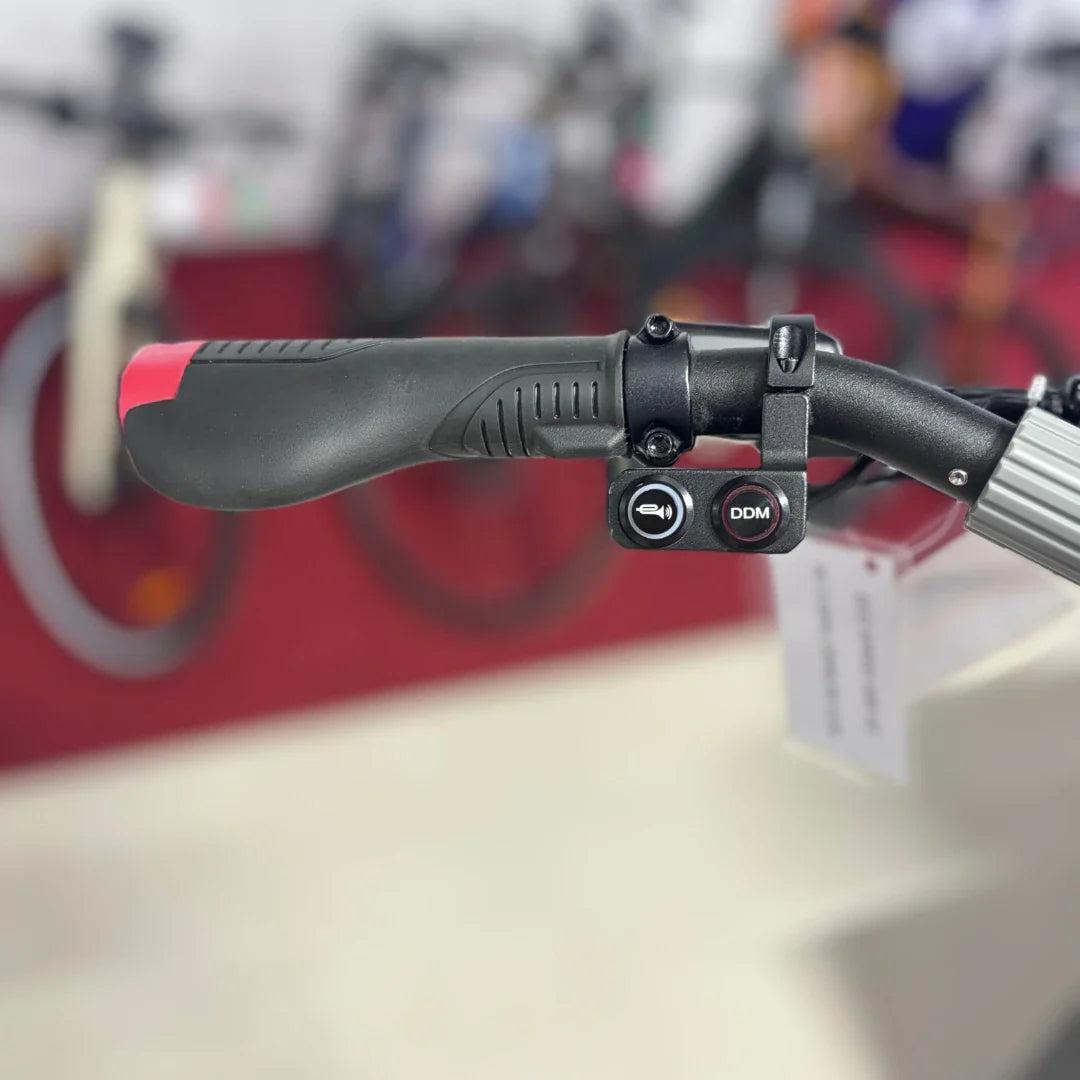

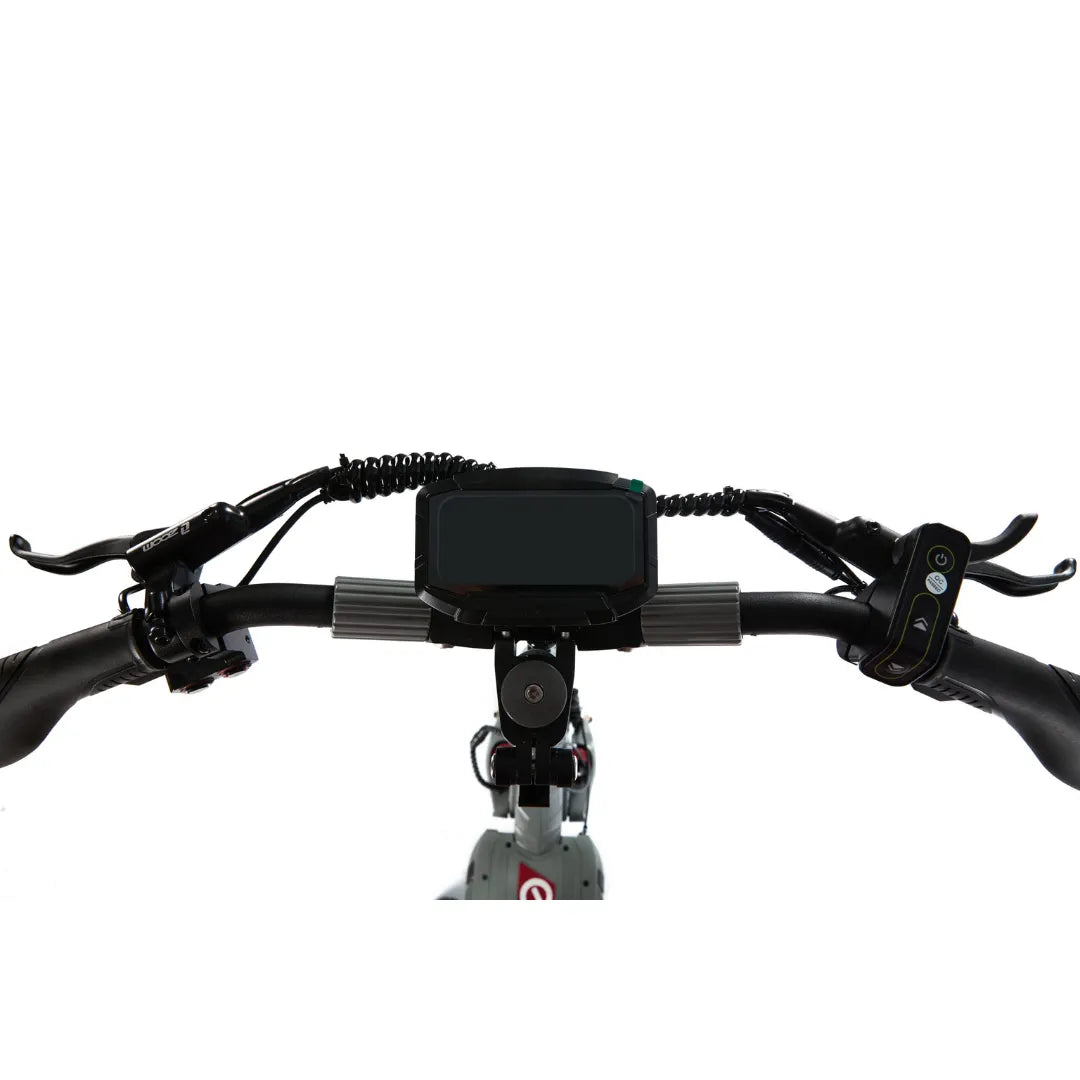

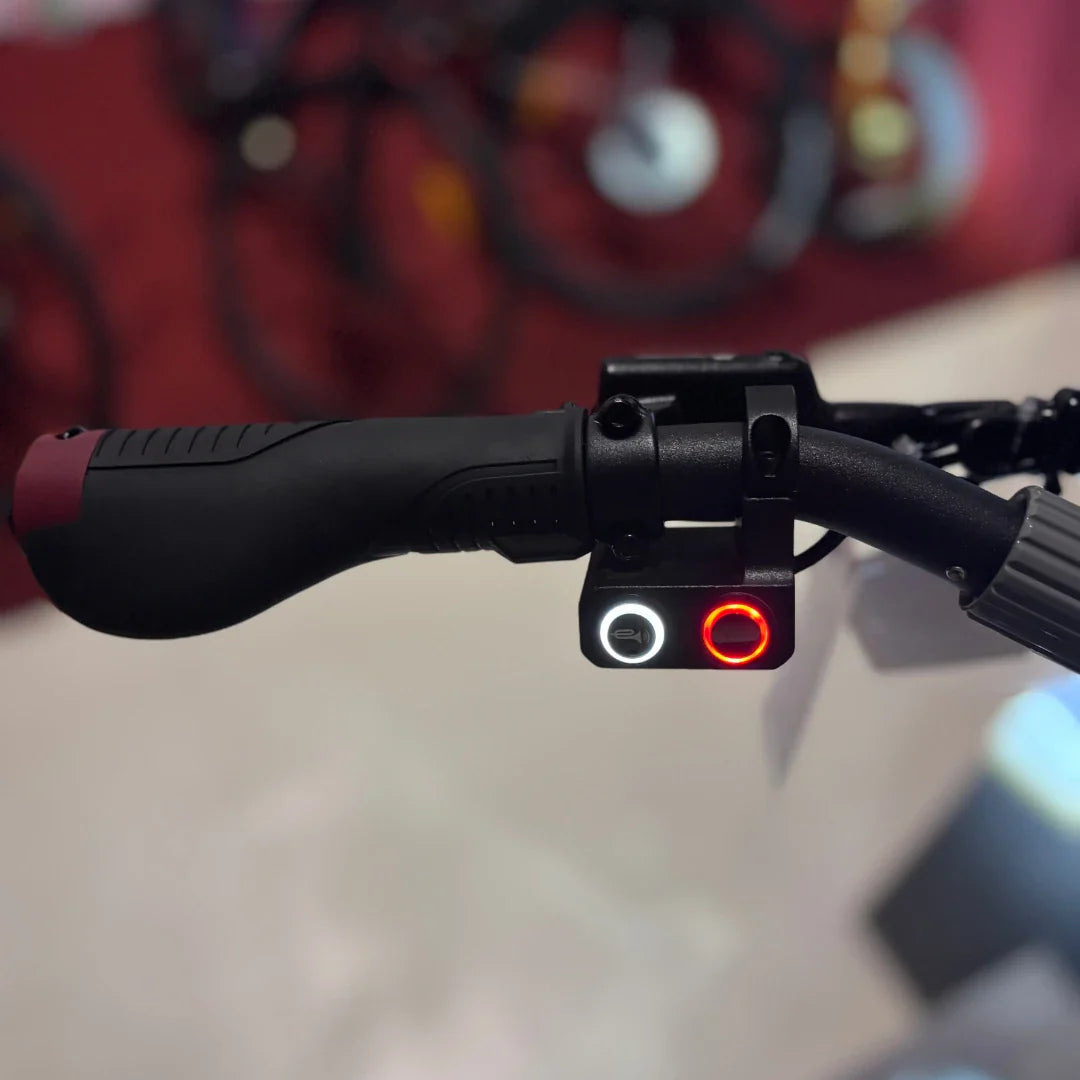

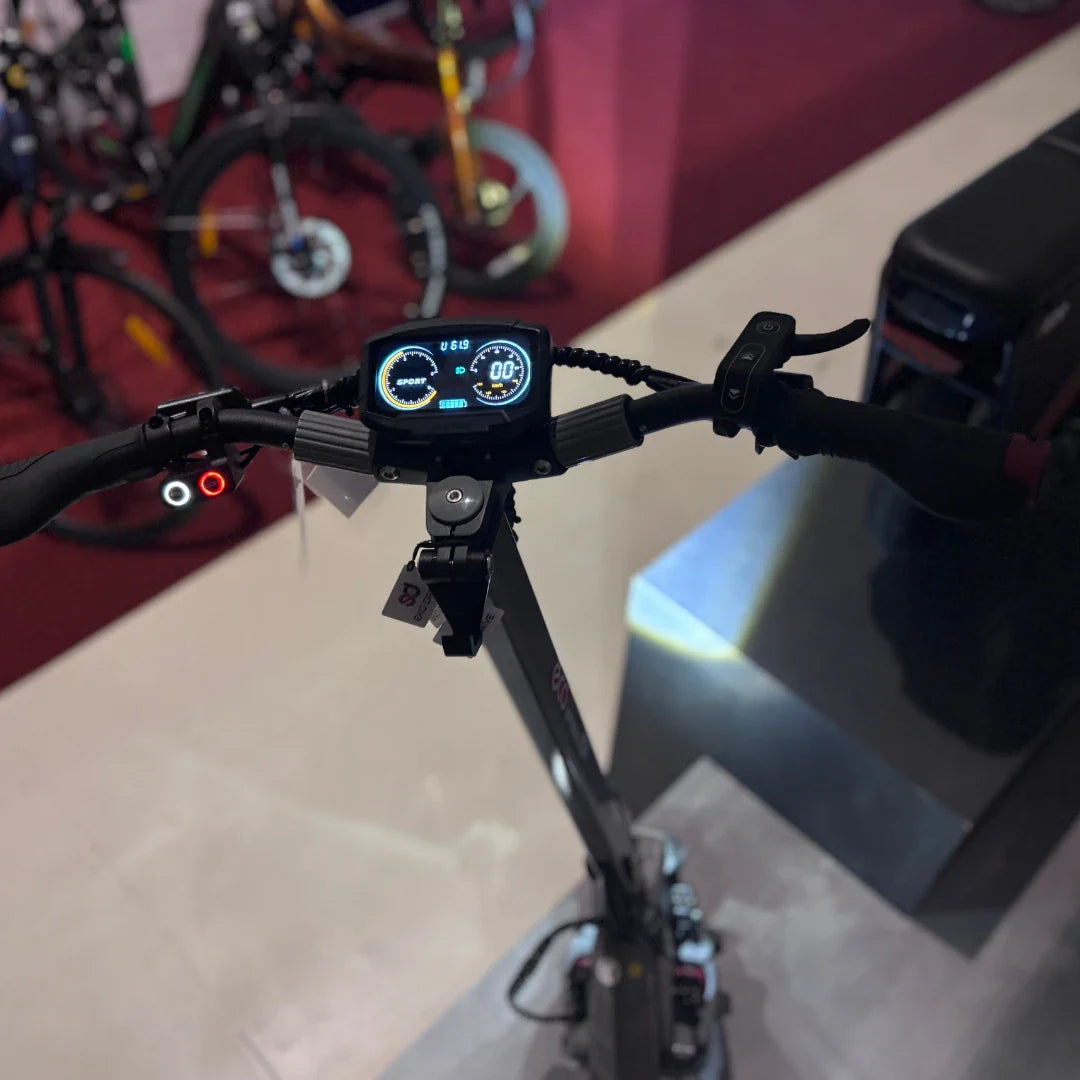

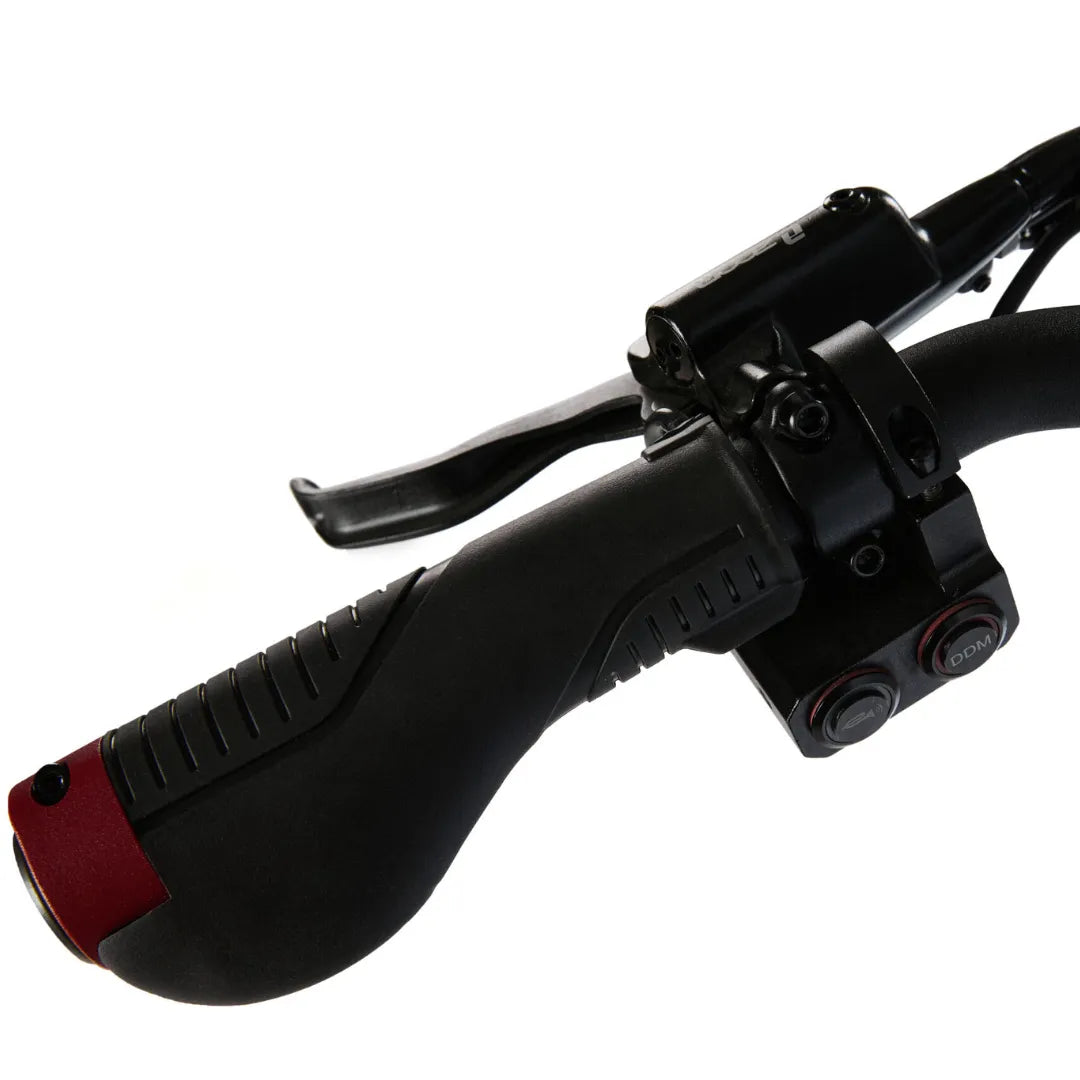

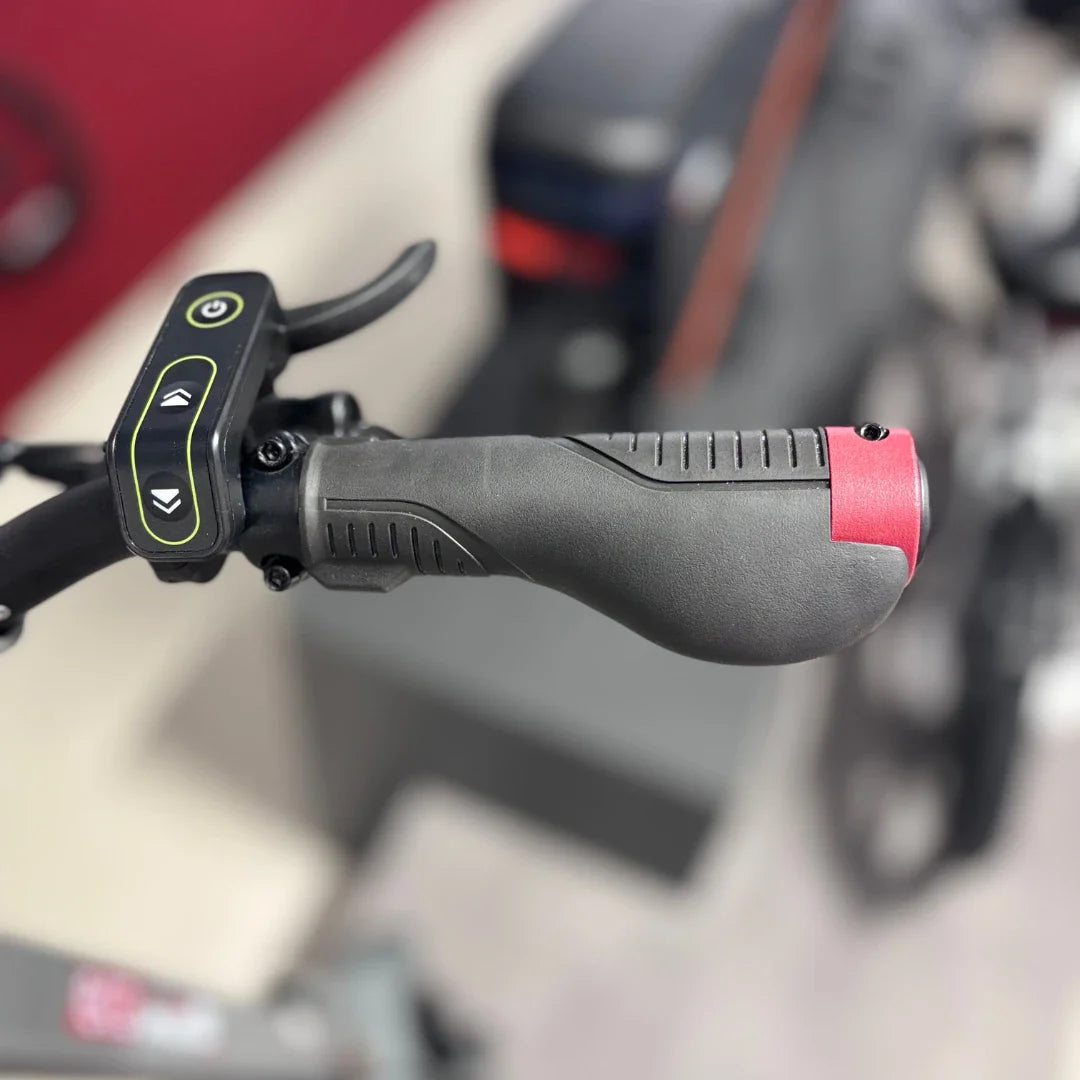

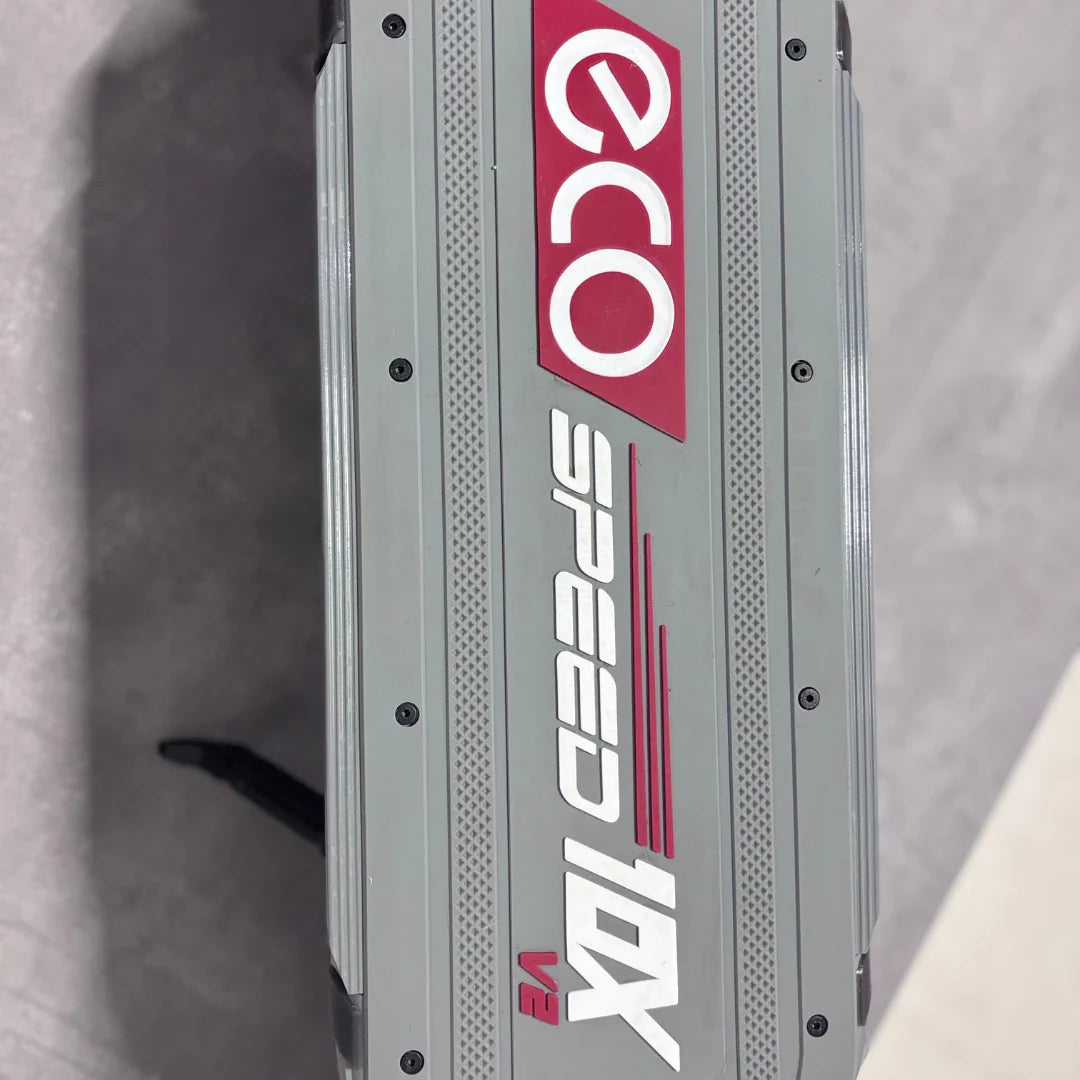

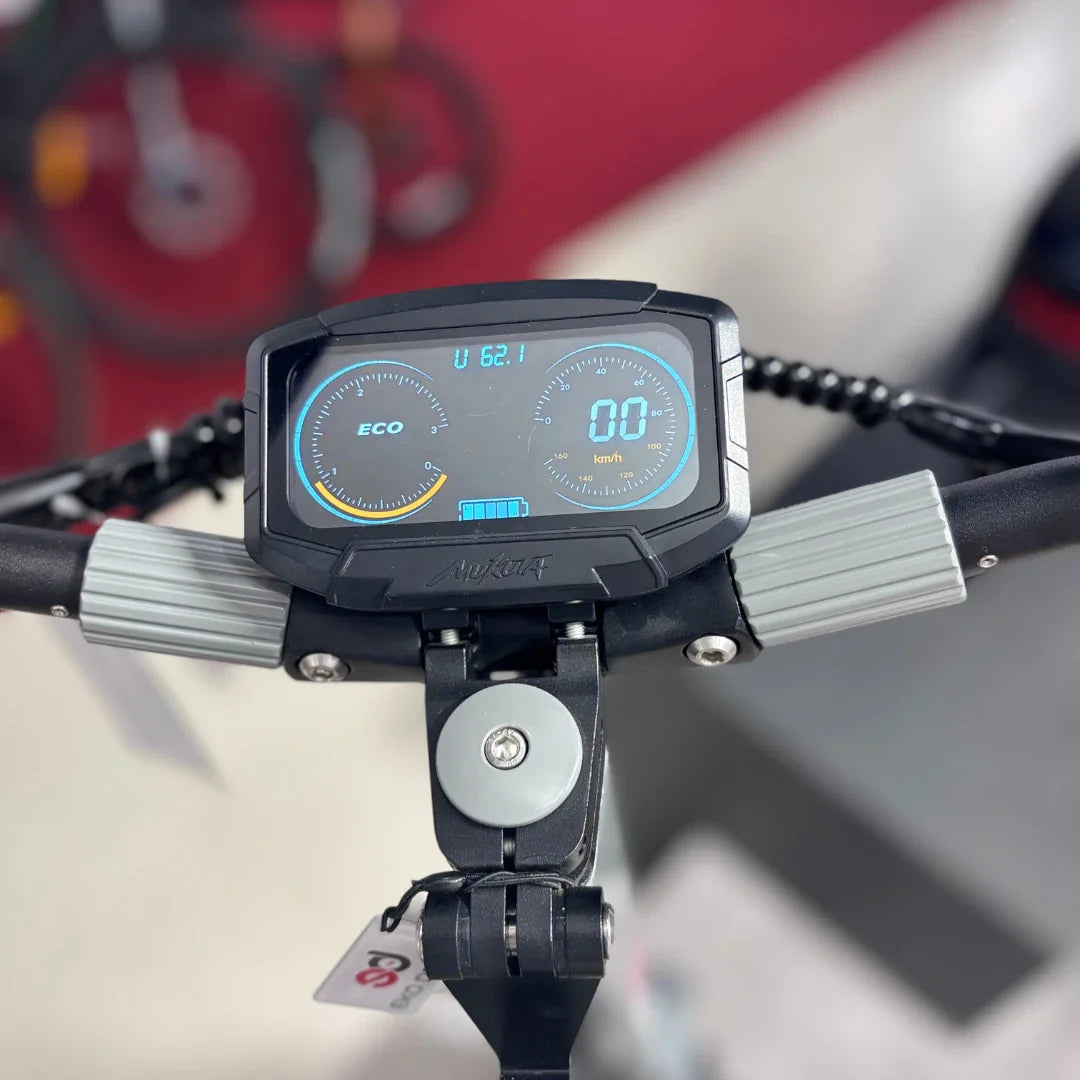

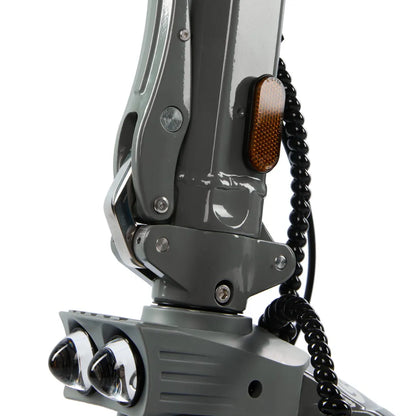

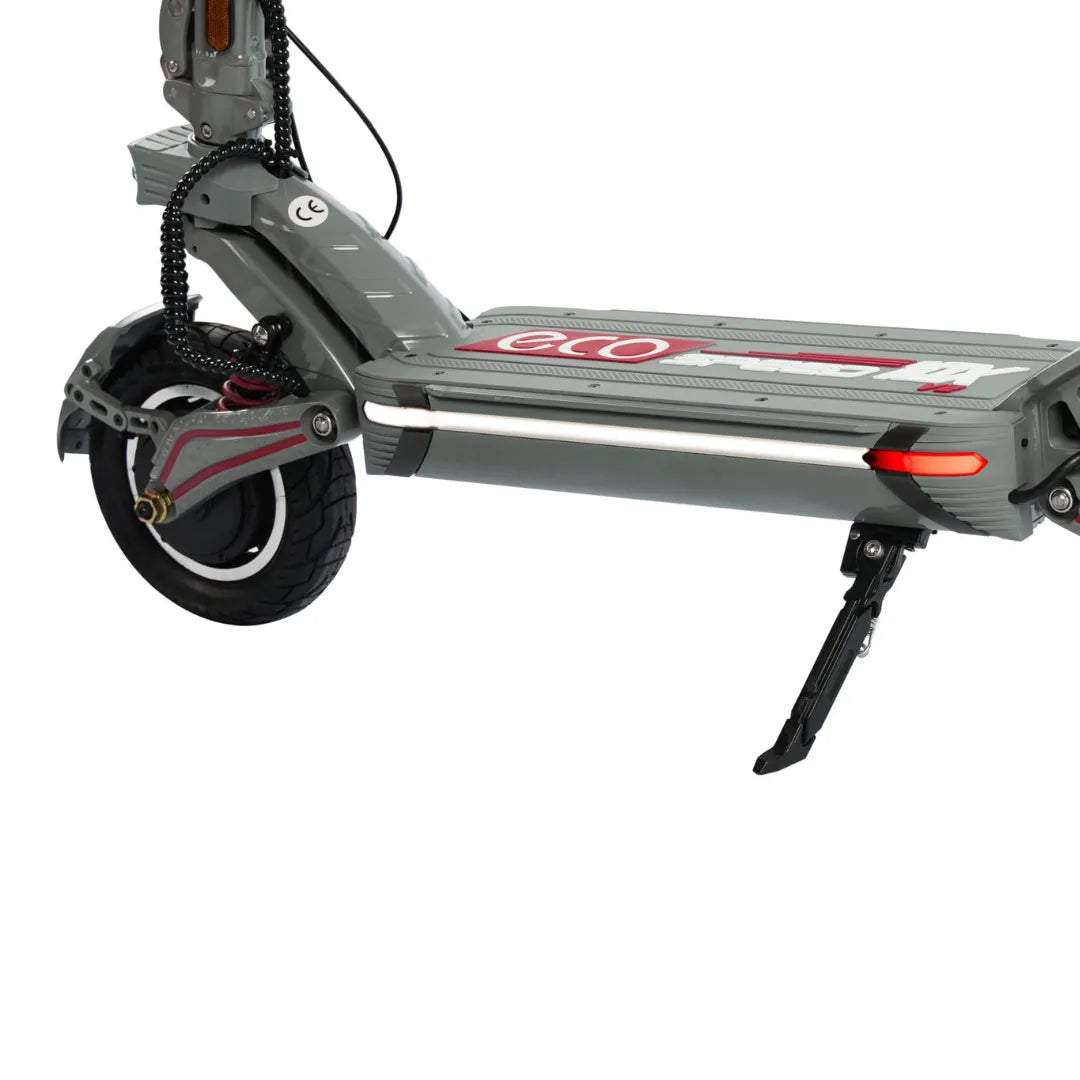

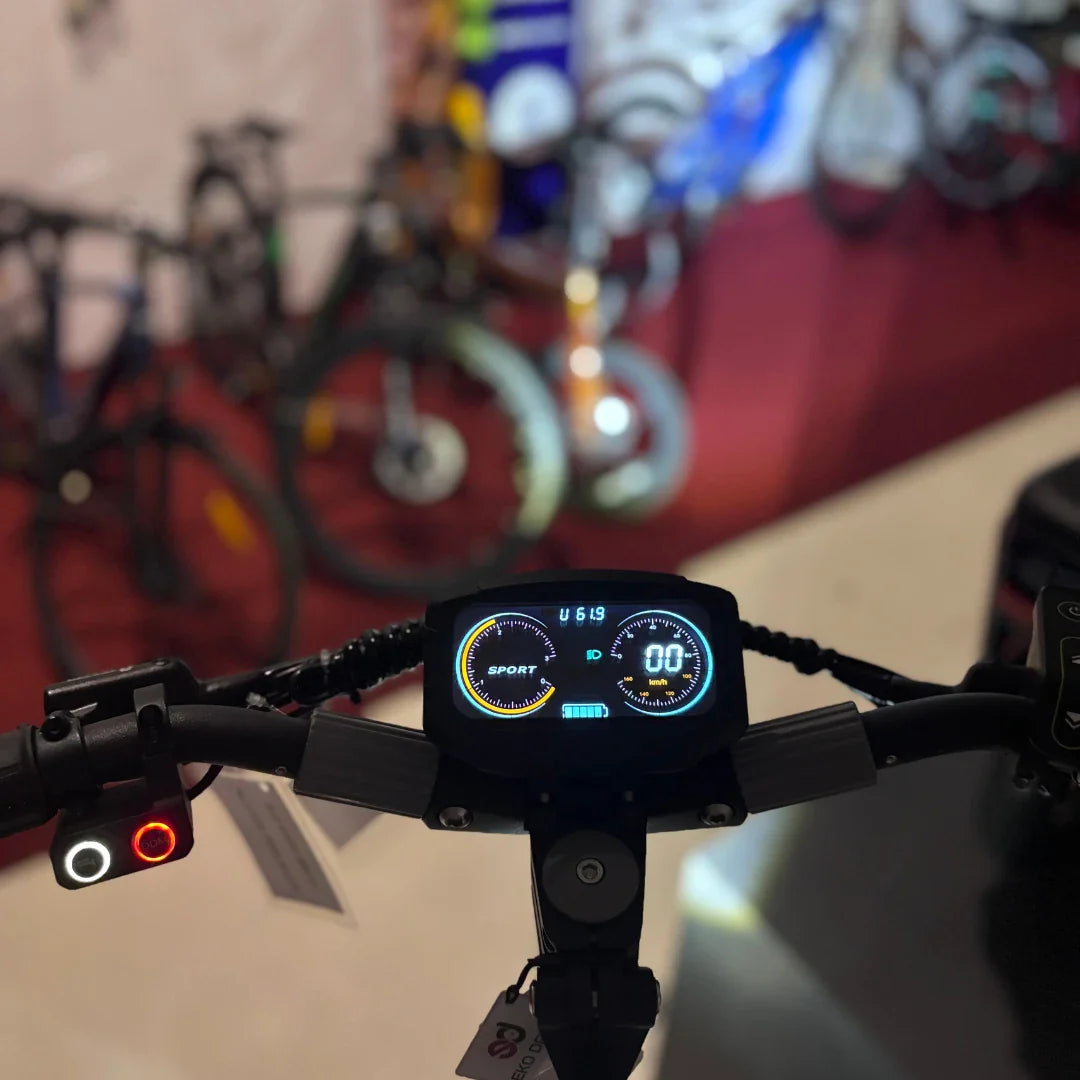

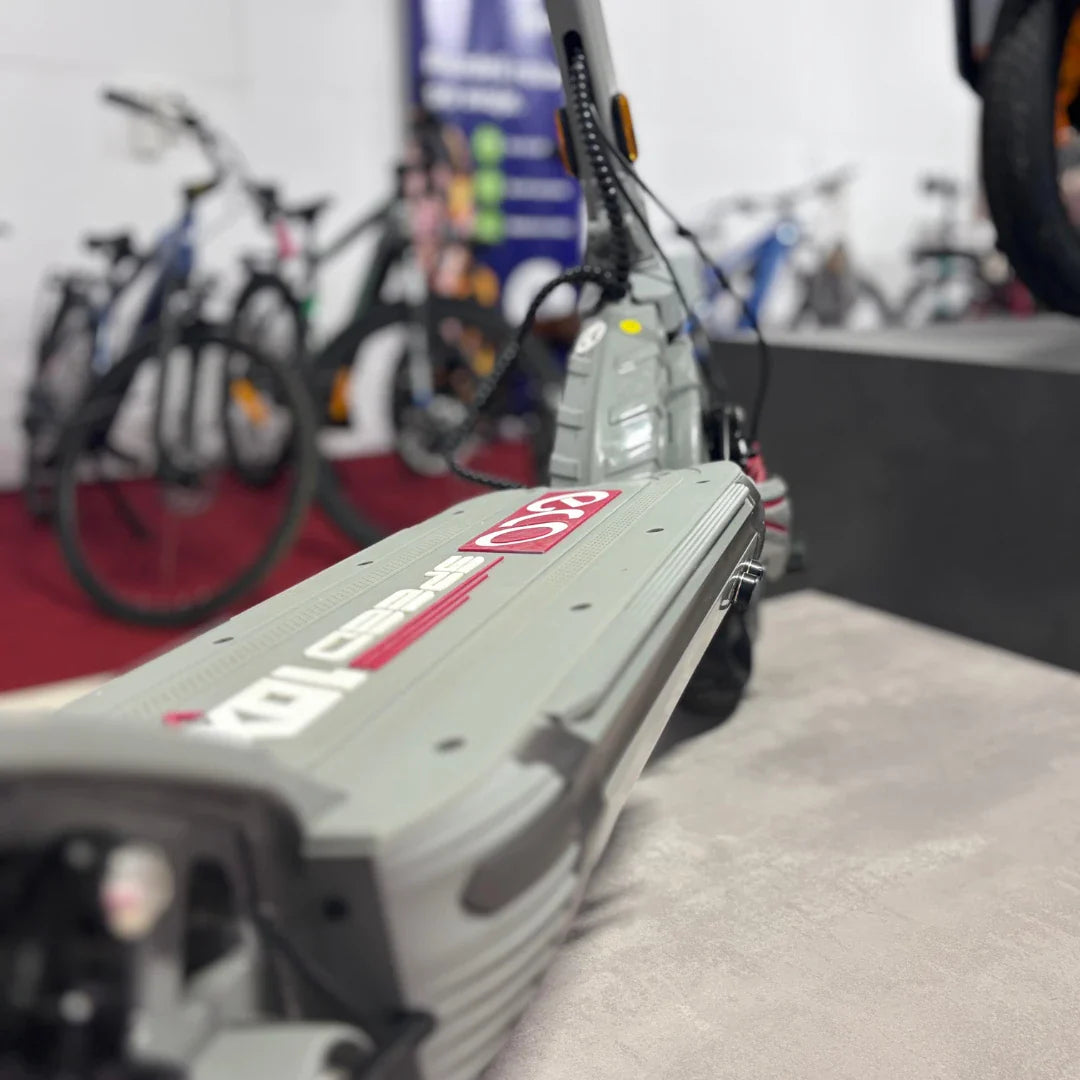

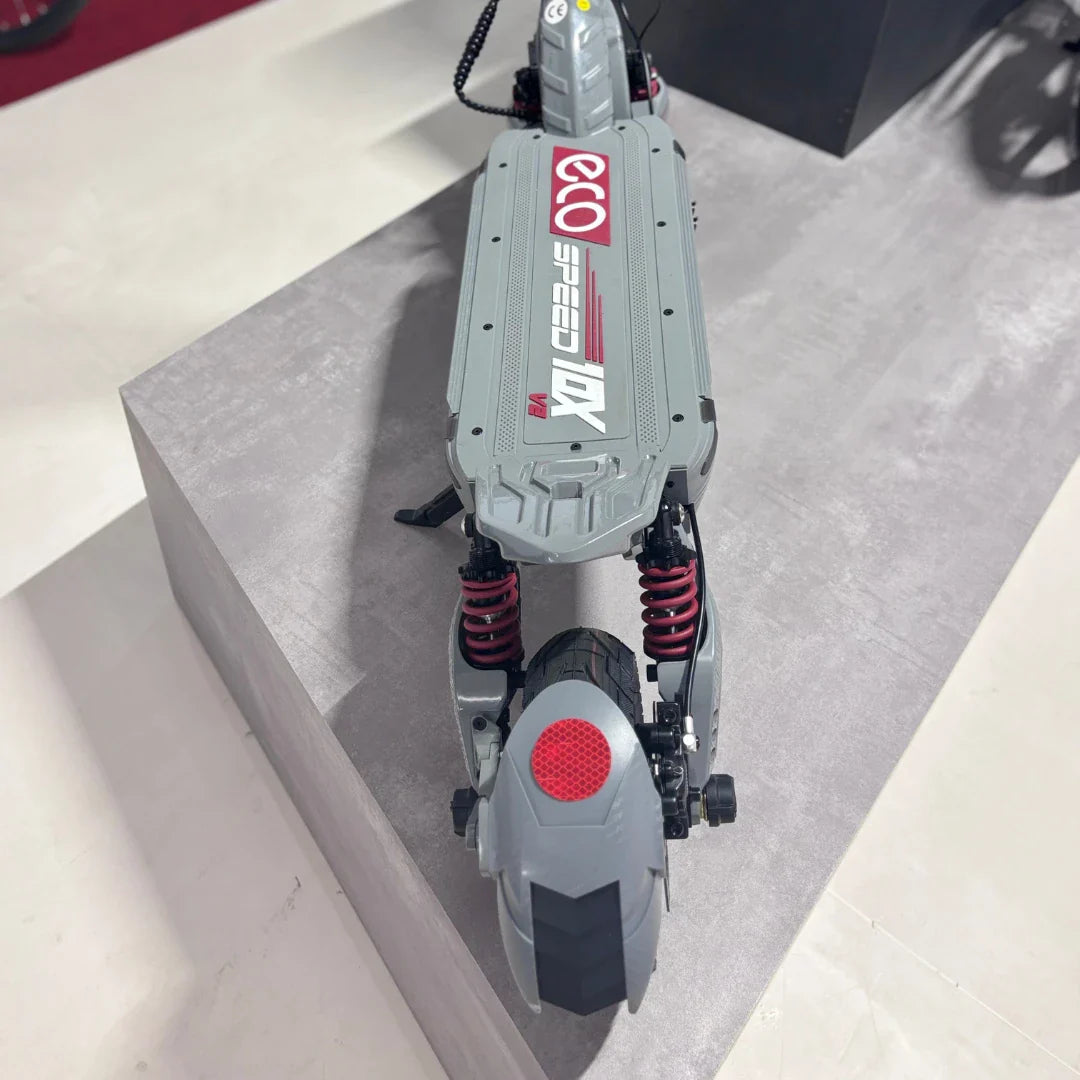

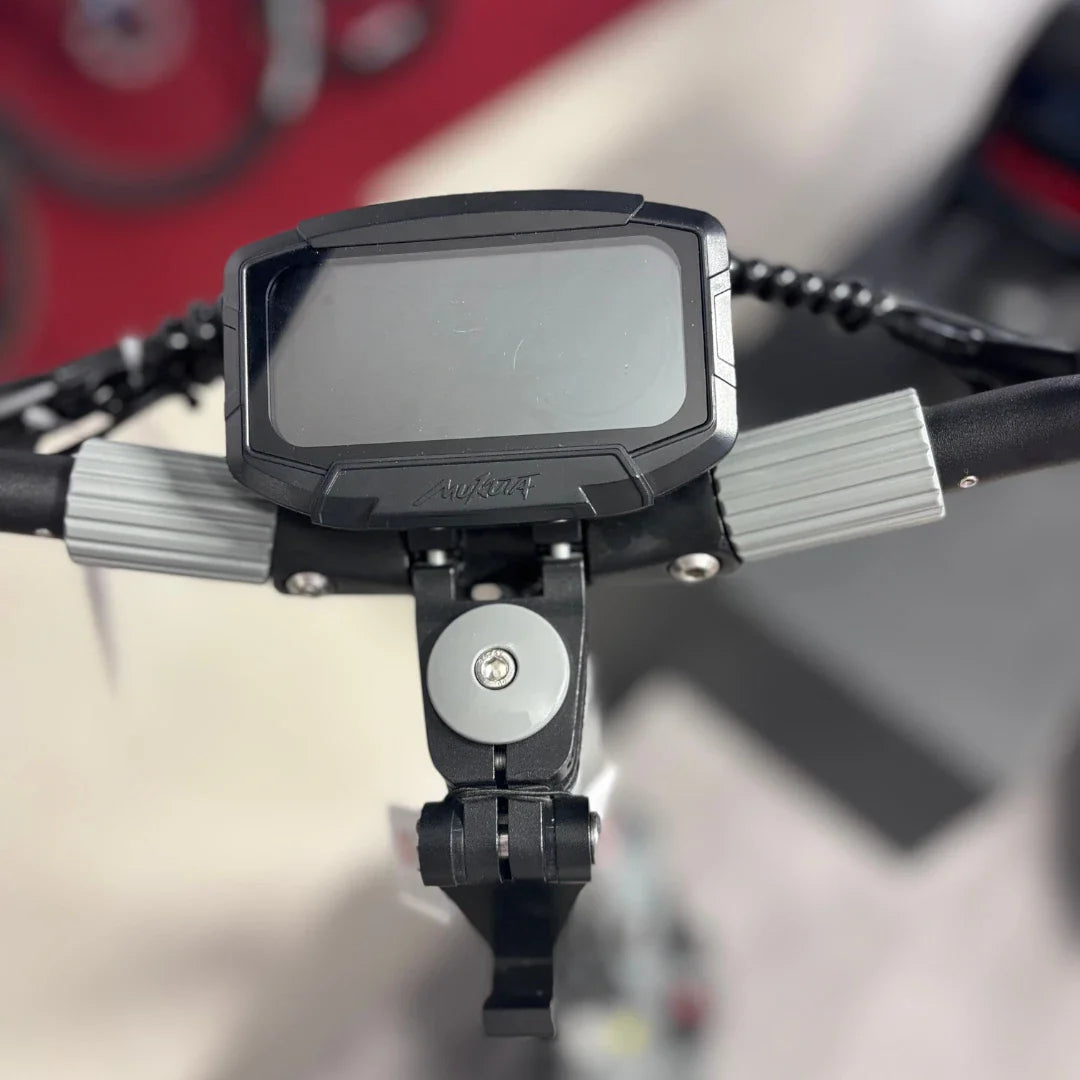

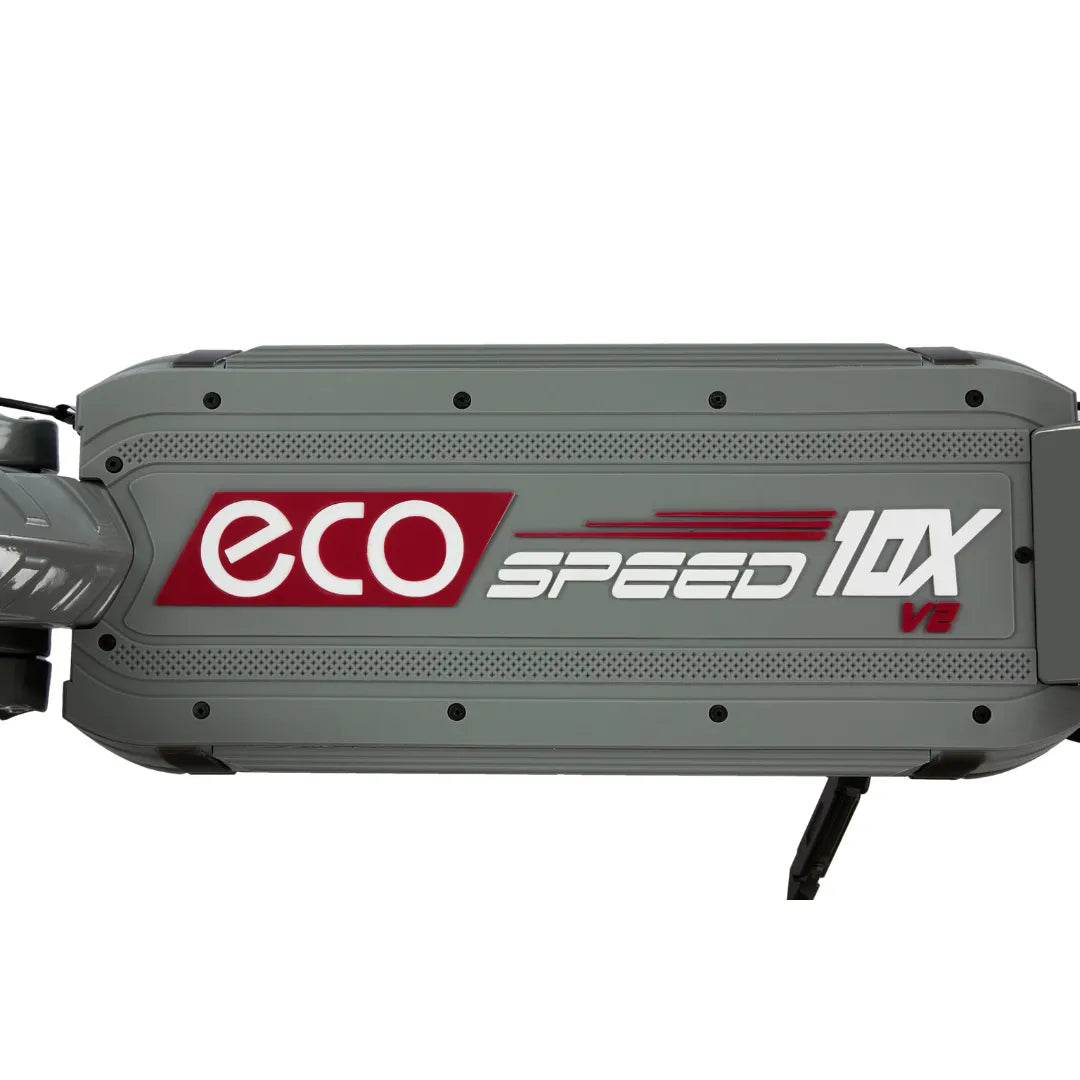

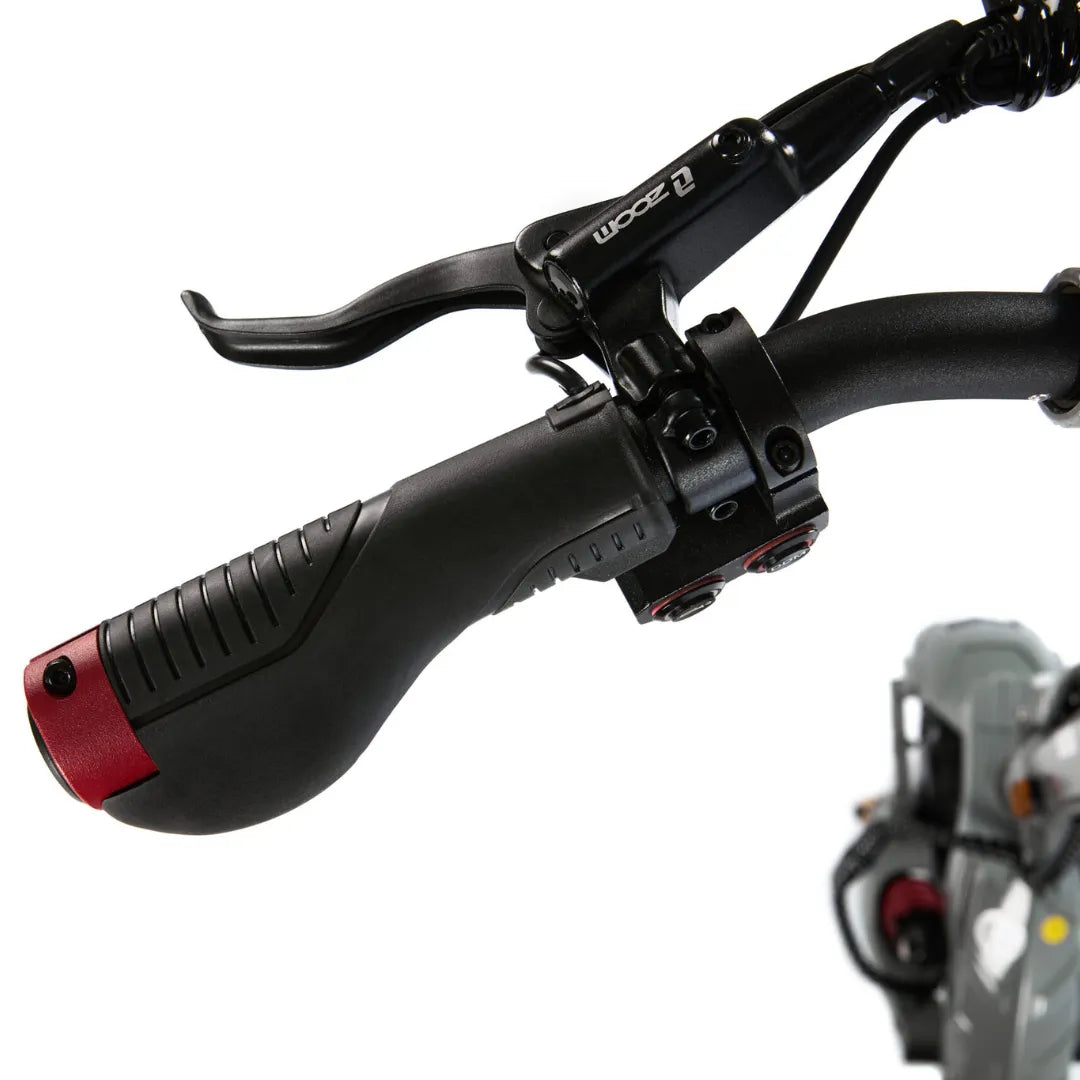

The chassis is designed for rider comfort and durability. At 36 kg, it supports up to 150 kg load capacity. The reinforced folding mechanism ensures stiffness and reliability during repeated folding cycles. A full rubberized deck enhances grip, while wide 10×3 inch tires and advanced suspension deliver comfort over extended rides. The centrally mounted color display provides real-time data, including riding modes, distance, and system status. Handlebar controls allow instant switching between eco/sport modes and single/dual drive. With its ergonomic deck, upgraded folding system, and enhanced electronics, the ECO Speed 10X V2 offers both comfort and performance for daily commutes or extended weekend journeys.
-
Maintenance
Regular servicing ensures reliable operation over time. Tires should be checked for inflation and wear, with timely replacement when tread performance decreases. The hydraulic braking system requires pad and rotor inspections and periodic bleeding of fluid to maintain stopping strength. Suspension springs and joints should be reviewed for play after heavy use. Electrical components, including the NFC lock, color display, and lighting systems, should remain clean and dry. The 60 V 20.8 Ah battery should always be charged with the specified charger and stored at 40–60% capacity in cool, dry conditions if unused for long periods. Regular torque checks on axles, deck bolts, and folding clamps maintain frame integrity. With correct maintenance, the ECO Speed 10X V2 continues to deliver powerful torque-rich performance, safety, and durability across extended service cycles.
