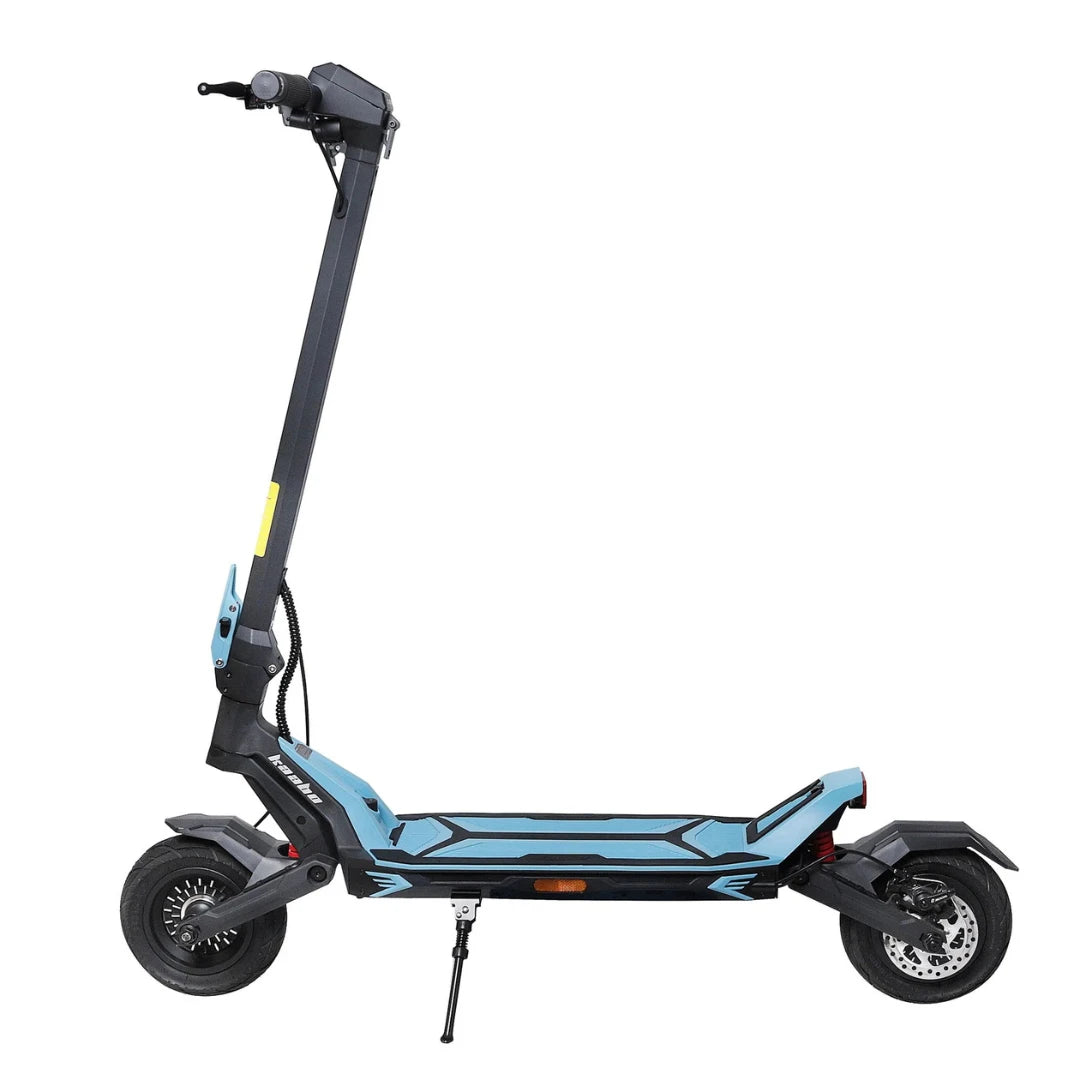

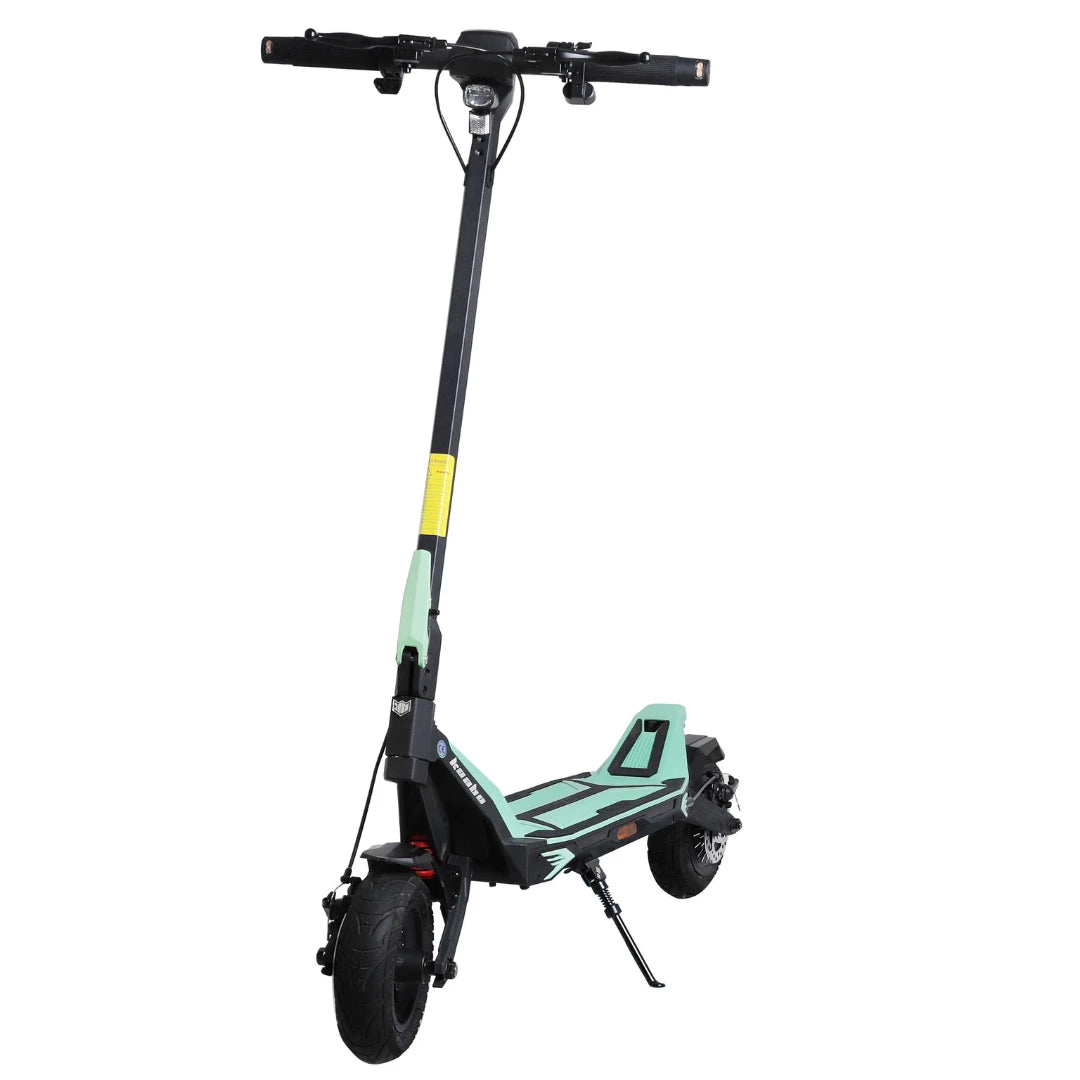

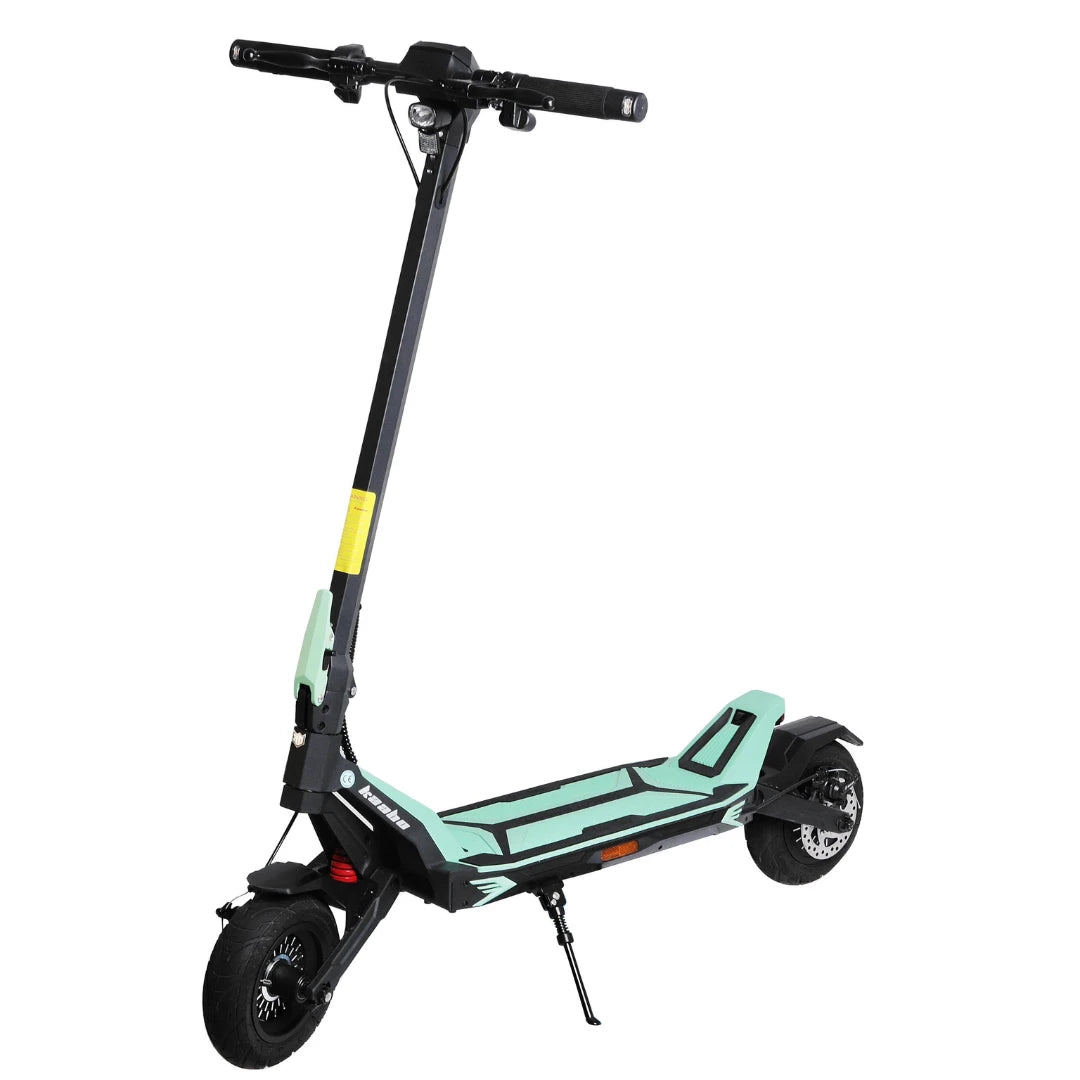

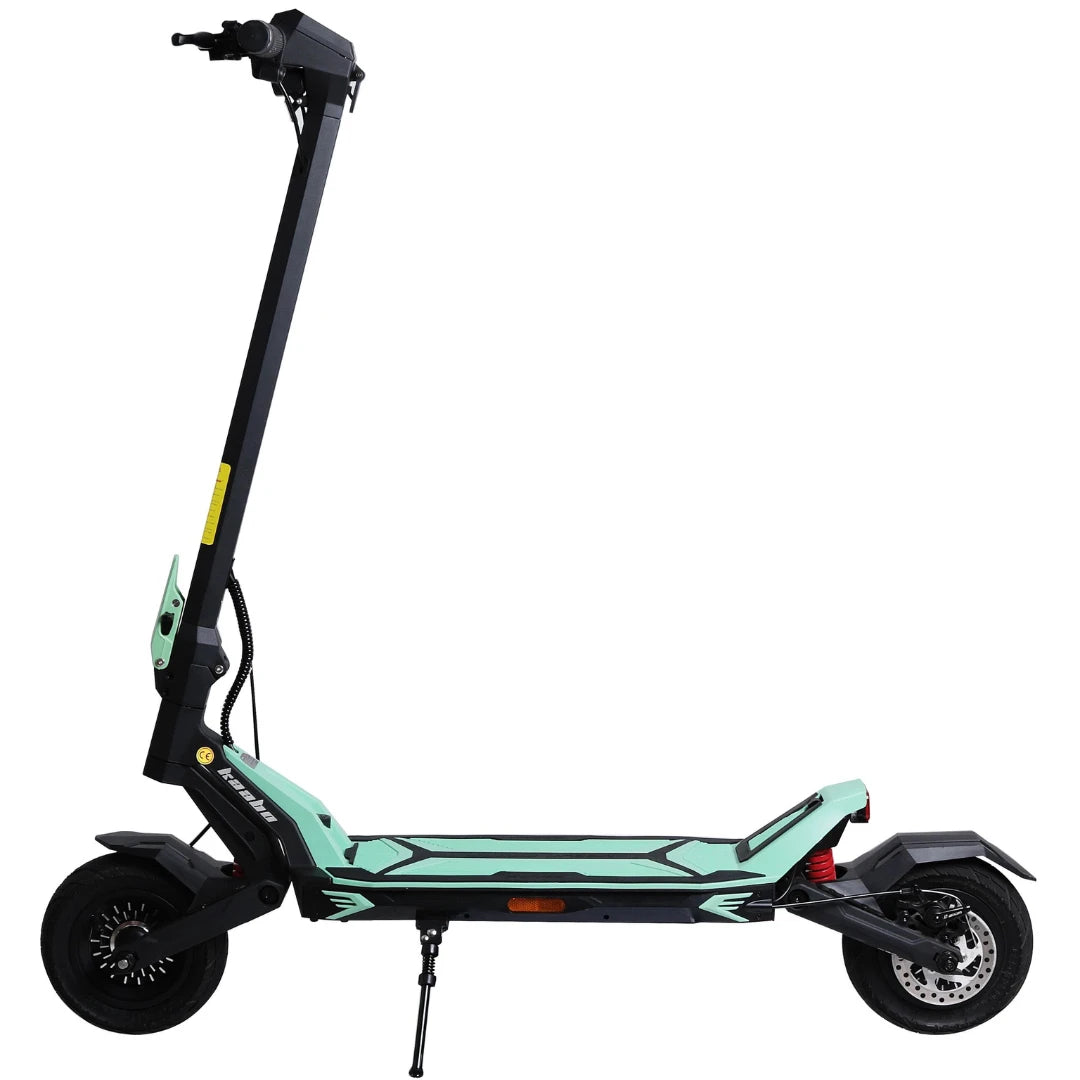

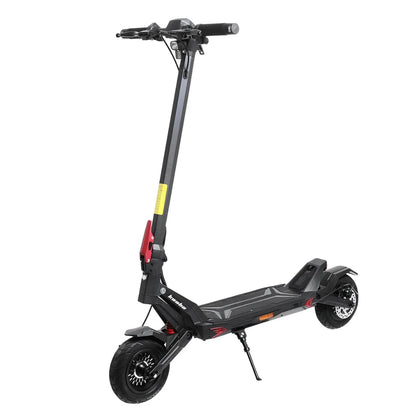

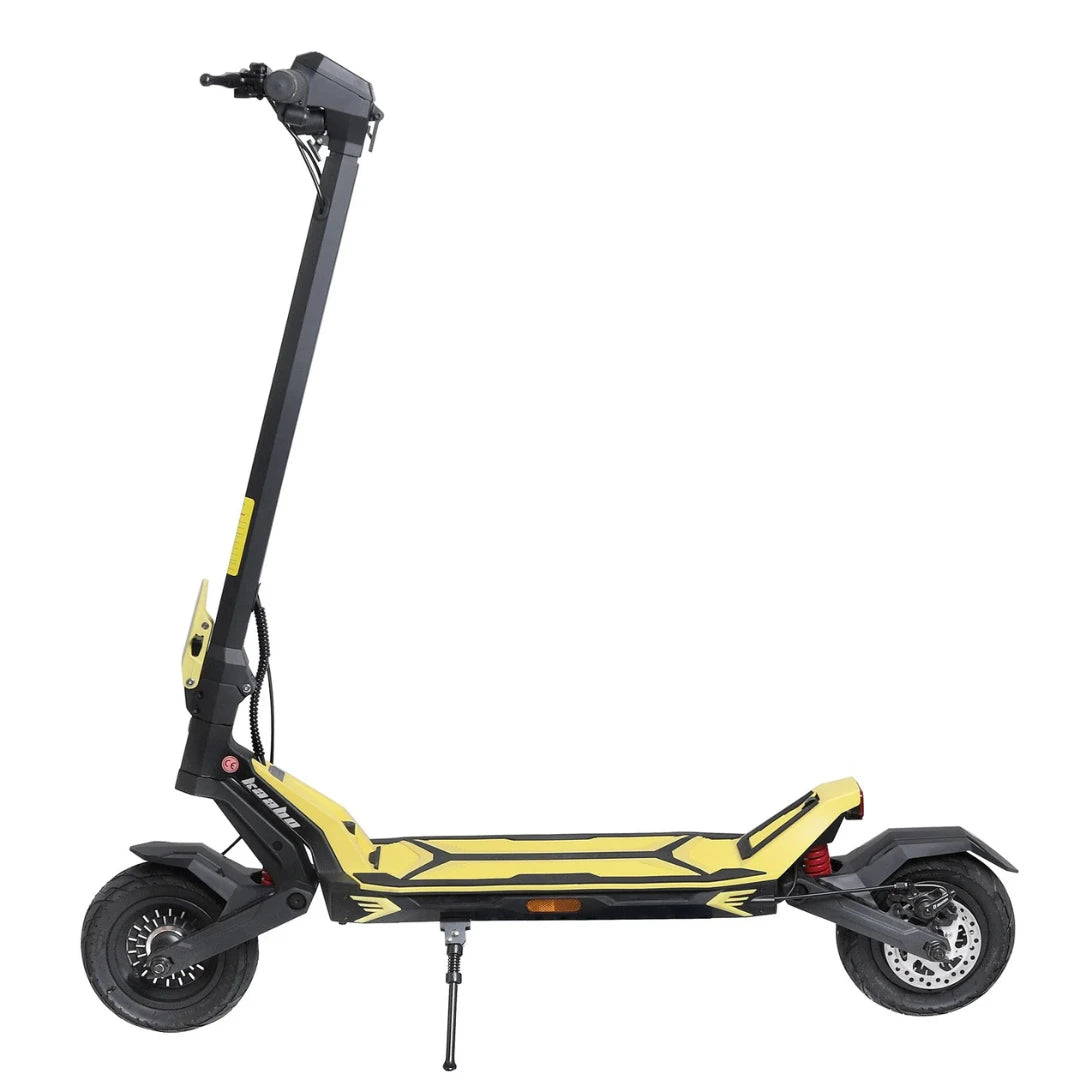

Off-road electric scooter

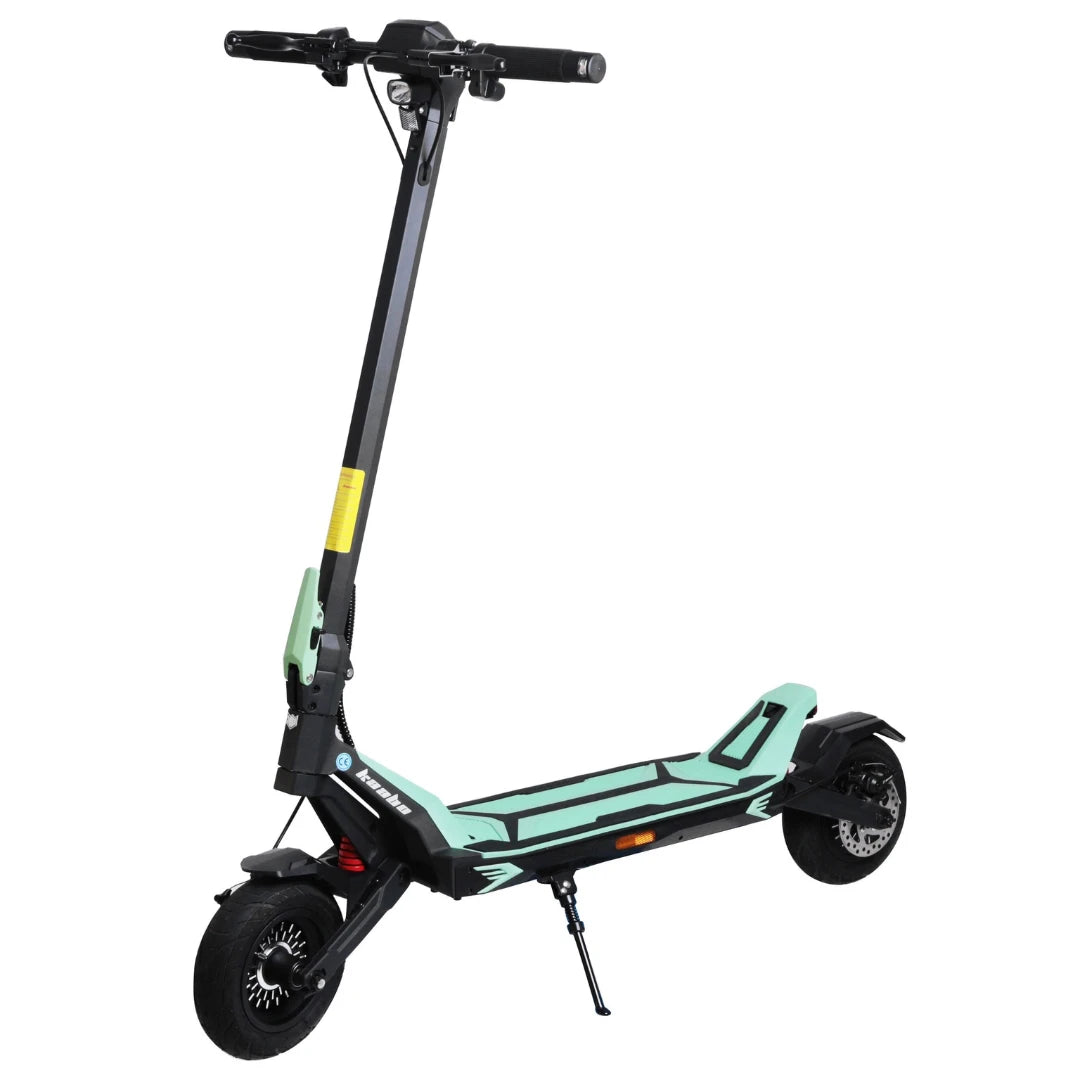

Kaabo Mantis Urban
The compact model for your daily city commute.
Specifications of
Kaabo Mantis Urban
Motor | |
---|---|
Drivetrain | Rear drive |
Nominal Power | 900W |
Maximum Power | 1.600 W |
Speed | |
Limited Speed | 25 km/h |
Speed Modes | 3 speed modes |
Maximum Incline Angle | 20° |
Battery | |
Maximum Range | 40 km |
Battery Capacity | 10.4 Ah |
Battery Voltage | 48 V |

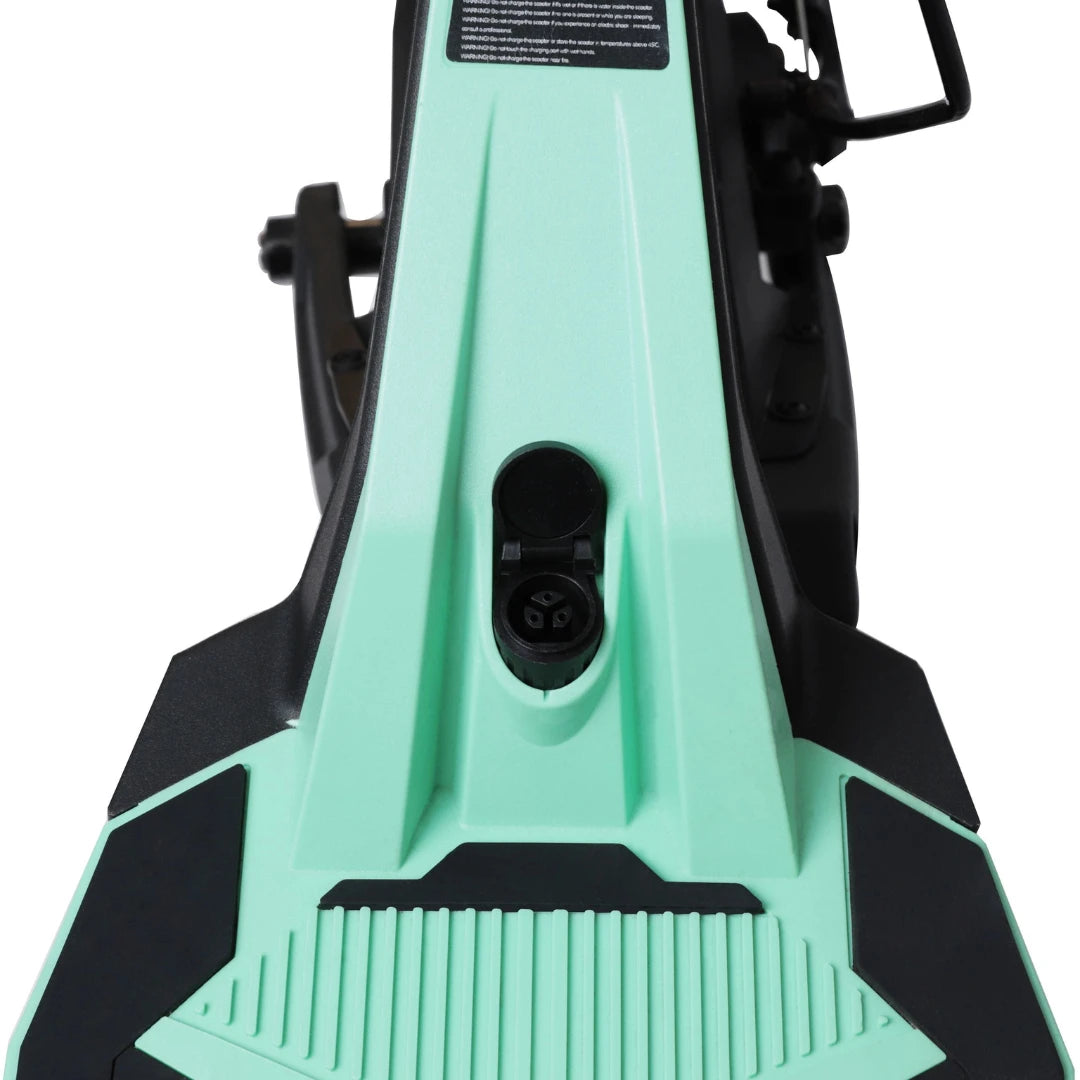

Charging Time | 5 hours |
Charger Type | 1x Standard charger |
Suspension | |

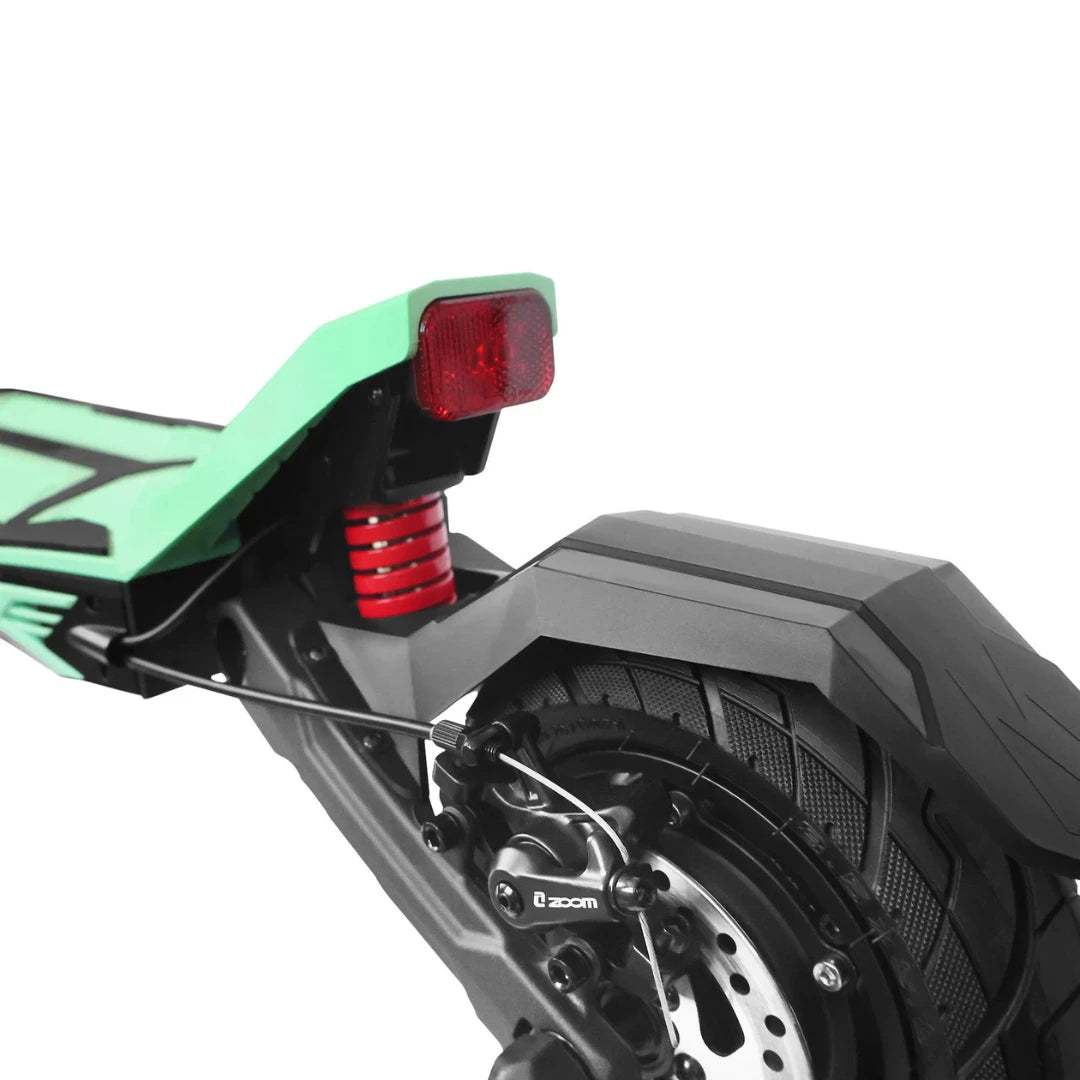

Front Suspension | Spring adjustable |

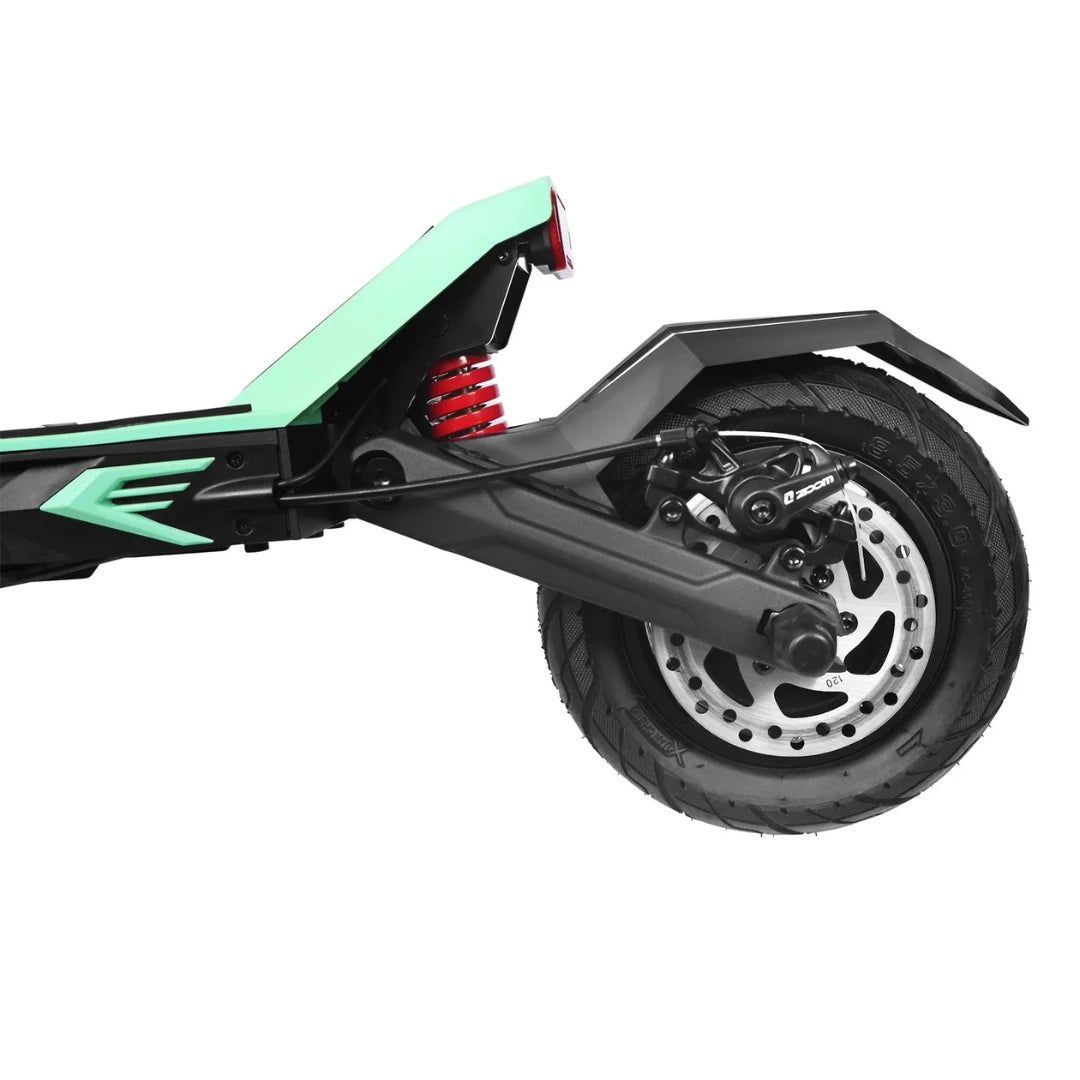

Rear Suspension | Spring adjustable |
Brakes | |
Front Brake | Mechanical disc brake + EABS |
Rear Brake | Mechanical disc brake + EABS |
Tires | |
Tire Type | Pneumatic |
Front Wheel Size | 8.5" |
Rear Wheel Size | 8.5" |
Lighting | |
LED, Rear light, Handlebar Turn Signals, Side Reflectors | |
Water Protection | |
IPX5 - Protected from low-pressure water spray | |
Dimensions | |
Length | 1170 mm |
Height | 1190 mm |
Width | 540 mm |

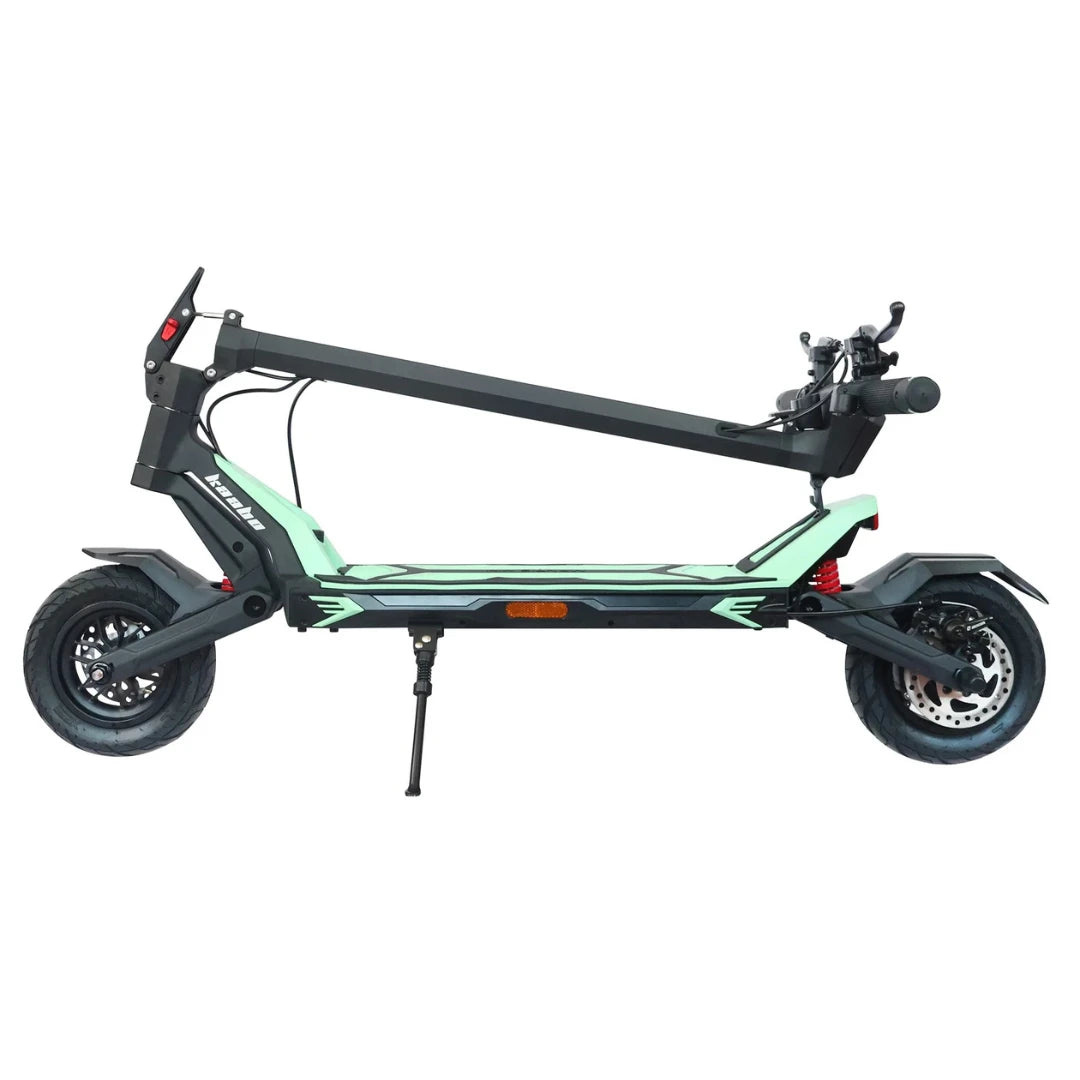

Folded | |
Length | 1170 mm |
Height | 570 mm |
Width | 540 mm |
Other | |
Recommended Height | 160-200 cm |
Net Weight | 20 kg |
Load Capacity | 100 kg |
Warranty | 1 year |
-
Comfort & Design
The Kaabo Mantis Urban is engineered for a comfortable ride despite its compact frame. It incorporates a front and rear adjustable spring suspension system, a feature that effectively mitigates impacts from urban imperfections like cobblestones and potholes. This works in concert with 8.5 x 3.0-inch tubeless pneumatic tires, which provide excellent shock absorption and grip. The modern cockpit features a new, fully integrated TFT display with NFC functionality for secure, keyless access and clear data visibility.
-
Maintenance
The Kaabo Mantis Urban is designed for low-maintenance ownership, ideal for the demands of busy city life. The integration of tubeless tires significantly reduces the frequency and complexity of puncture repairs compared to traditional tube tires. Routine checks should include ensuring proper tire inflation for optimal performance, verifying the tension of the mechanical brake cables, and keeping all structural fasteners secure. This straightforward approach ensures the electric scooter remains a reliable and ready-to-use vehicle for daily commutes.
