Sintered brake pads Xtech for Xiaomi Electric Scooter 3 – 34.3 × 27 × 4.1 mm

Compatibility with Xiaomi Electric Scooter 3 model

This separate product version is designed for the Xiaomi Electric Scooter 3 model. Compare the shape, eyelet, hook, and dimensions of 34.3 × 27 × 4.1 mm.

ULIP sintered brake pads in antique bronze are designed for Xtech calipers with the same pad geometry and the Xiaomi Electric Scooter 3 electric scooter. Xiaomi officially specifies a rear two-pad disc brake for this model, and ULIP specifies this particular shape of replacement pad. The sintered friction material provides high thermal resistance, stable braking power, and a long lifespan for daily and more intensive urban riding.

Compatibility and shape verification

The pads are designed for specific brake calipers. Before ordering and installing, always compare the shape and external dimensions of your existing pads:

• Brake systems: Xtech brake calipers (semi-hydraulic/mechanical with appropriate housing shape)
• Electric scooter: Xiaomi Electric Scooter 3; we do not include other Xiaomi models without matching shape and dimensions

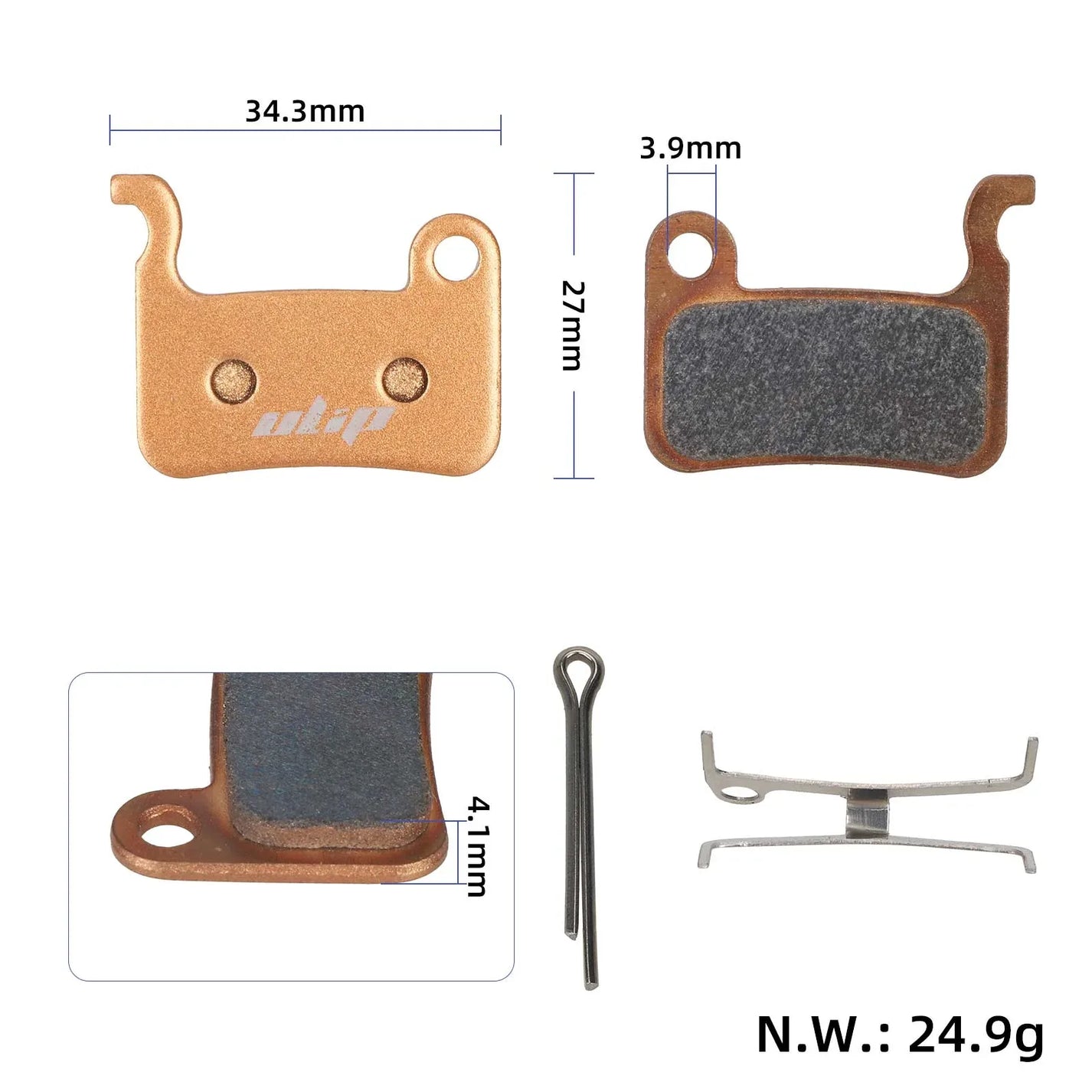

• Geometry: length 34.3 mm, height 27 mm, total thickness with backing plate 4.1 mm
• Attachment: upper eyelet with bore for cotter pin and side positioning hook

Installation and maintenance instructions

Before installing new pads, clean the inside of the brake caliper and check the condition of the brake disc. Insert the included return spring between the pads and insert the entire assembly into the caliper. Secure the assembly with a new cotter pin and spread its prongs. After installation, readjust the caliper centering relative to the disc and perform gradual bedding-in of the brake pads before full load.

Technical specifications
