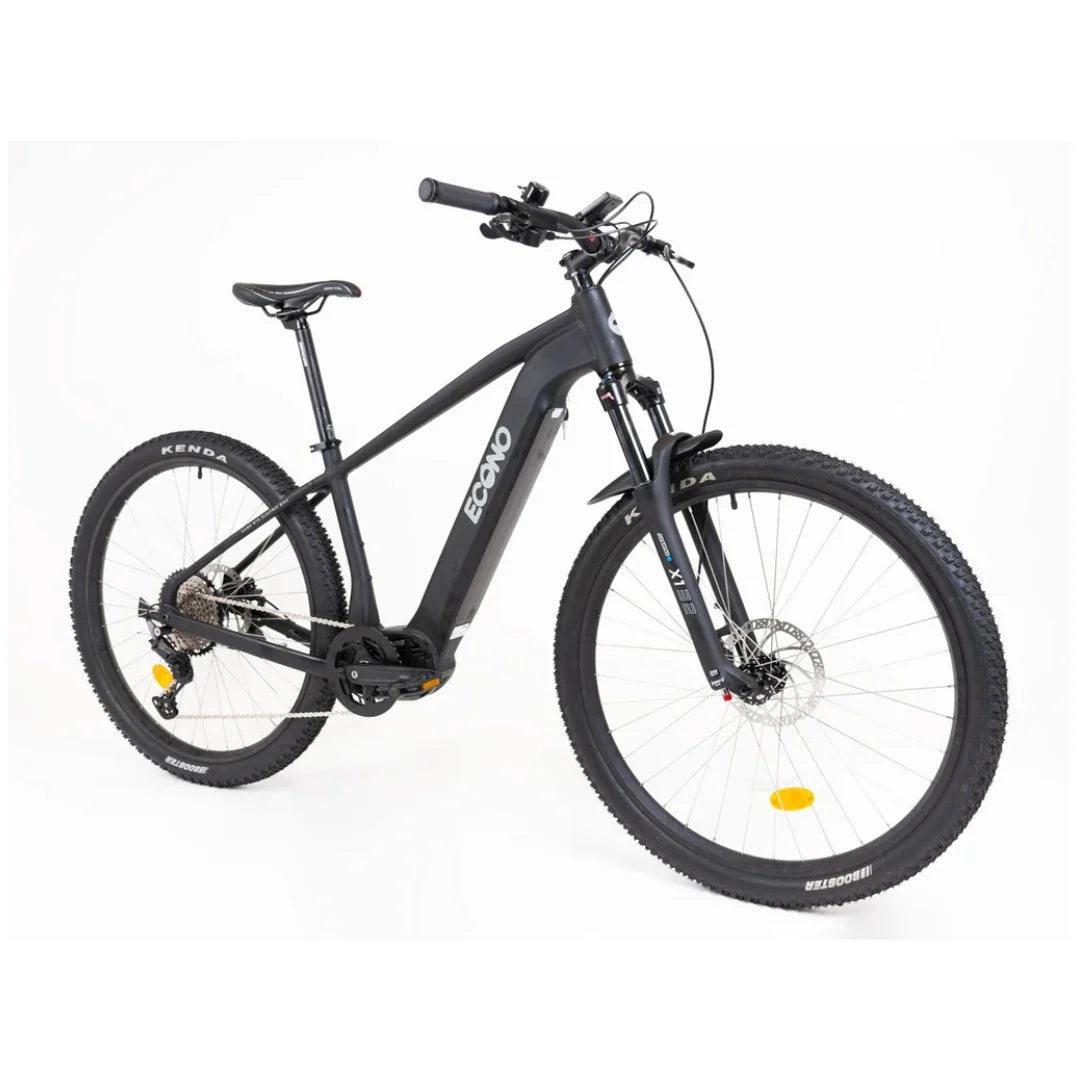

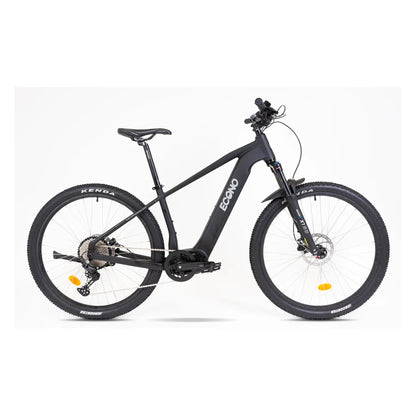

Mountain electric bike
ECONO Gams MTB C5
"Conquer trails, unleash freedom."
Specifications of
ECONO Gams MTB C5
Motor | |
---|---|
Drivetrain | Central drive |
Nominal Power | 250 W |
Maximum Power | 250 W |
Speed | |
Limited Speed | 25 km/h |
Speed Modes | 5 speed modes |
Maximum Incline Angle | 35° |
Battery | |
Maximum Range | 70-160 km |
Battery Capacity | 14.4 Ah, 19.4 Ah, 22.2 Ah |
Battery Voltage | 36 V |
Charging Time | 4.5 - 6 hours (with 4A fast charger for 700Wh/800Wh batteries); approx. 7.2 hours (with 2A charger for 520Wh battery) |
Charger Type | 1x ECONO 2A charger, ECONO 4A charger |
Suspension | |

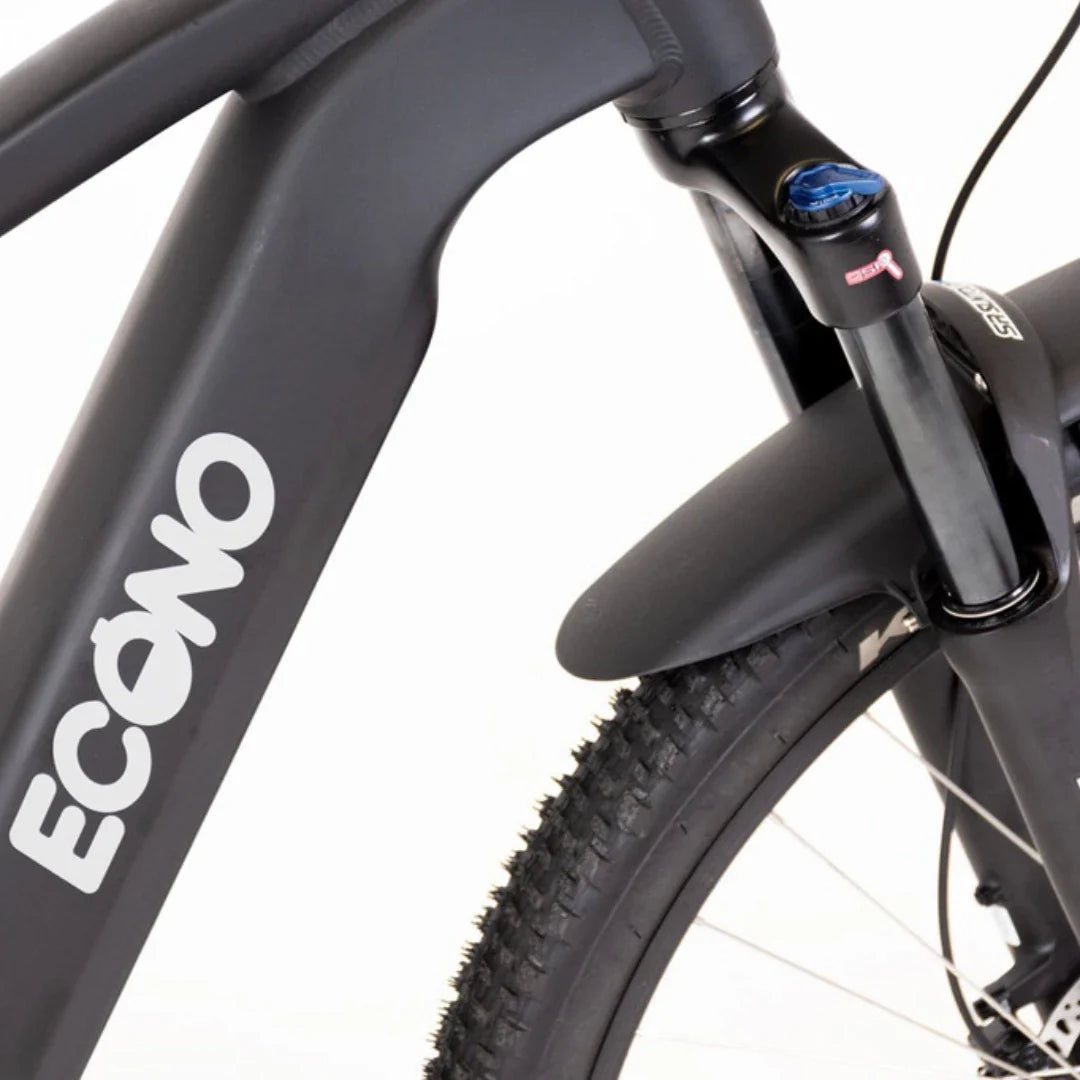

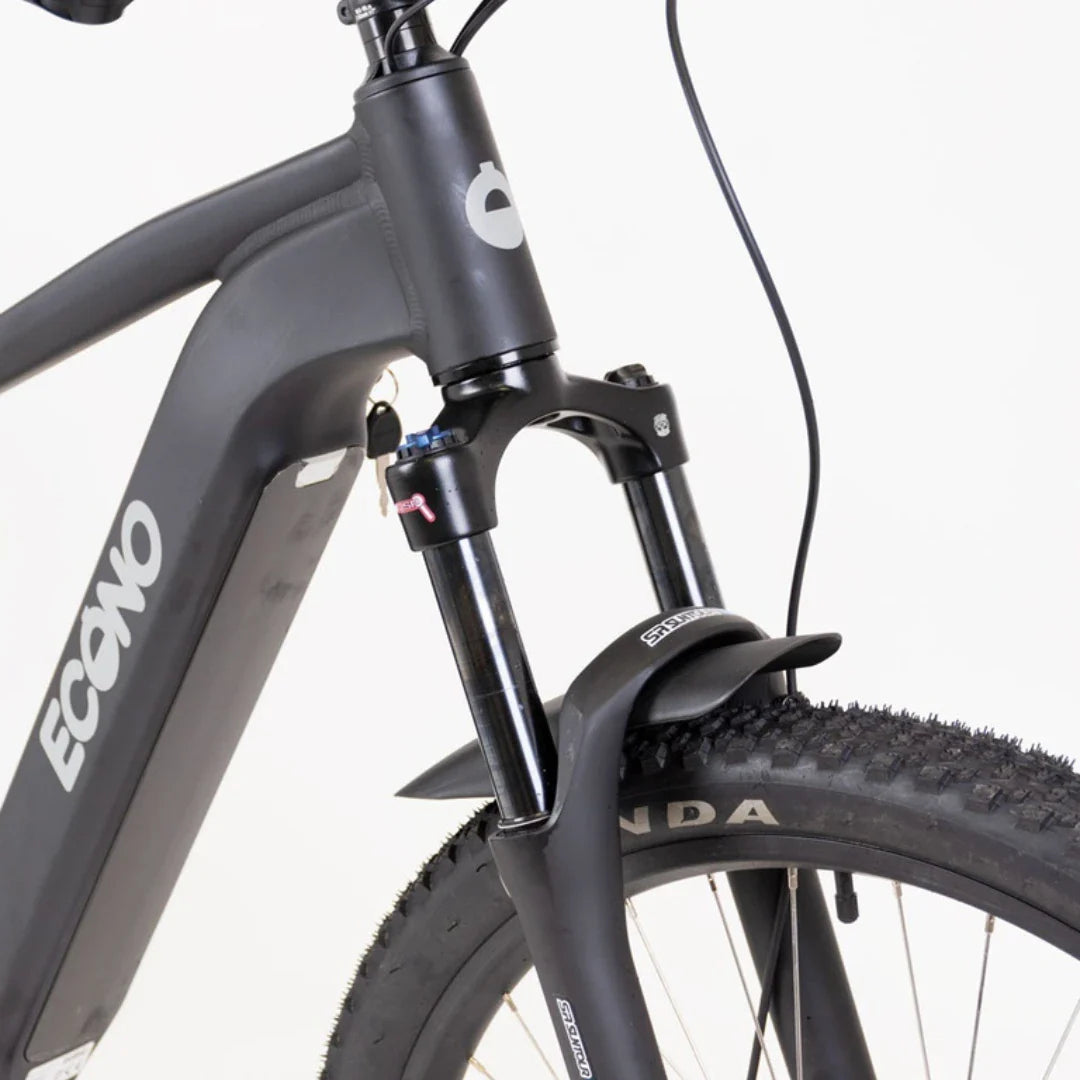

Front Suspension | SR Suntour Air suspension |
Rear Suspension | None |
Brakes | |

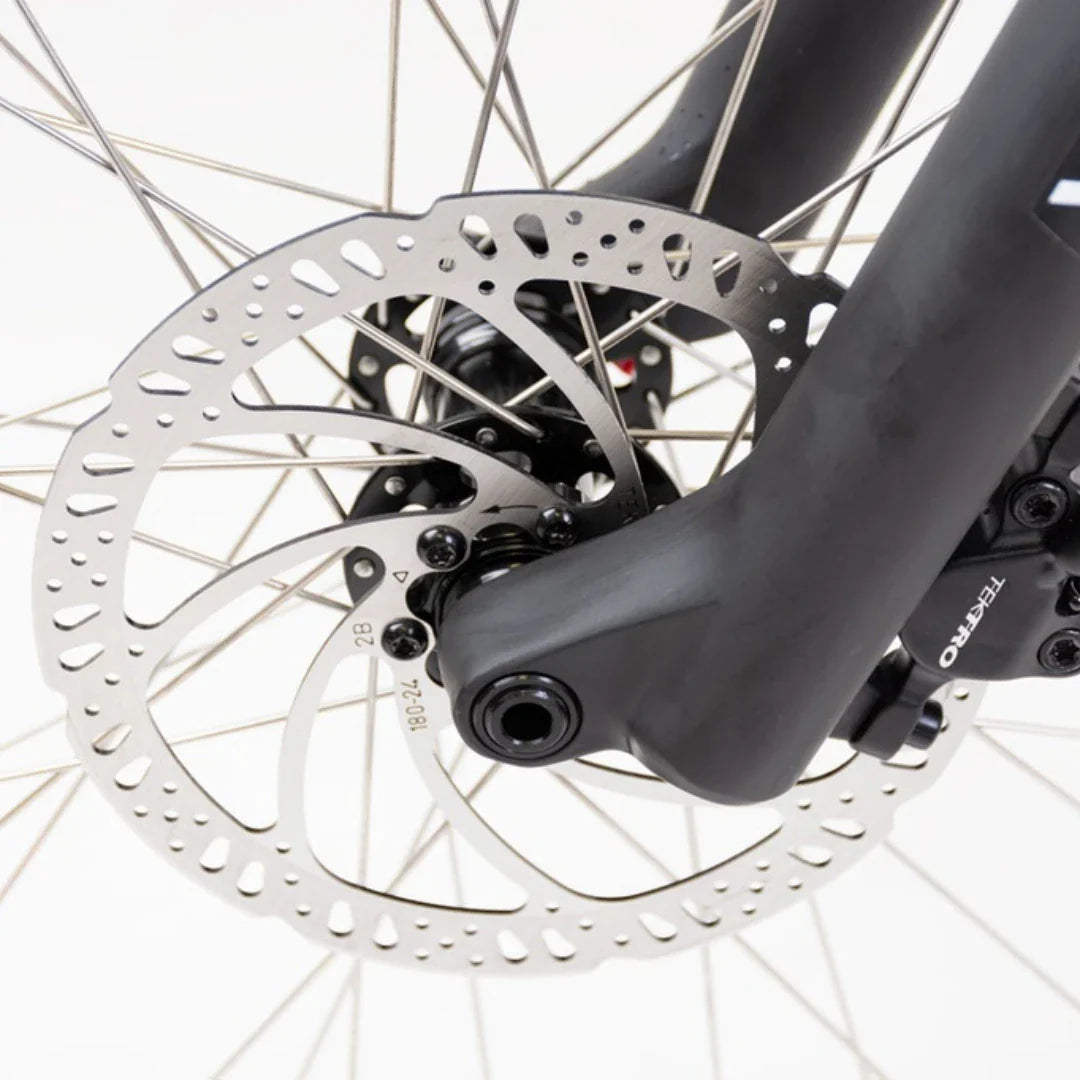

Front Brake | Tektro Disc hydraulic 180 mm |
Rear Brake | Tektro Disc hydraulic 180 mm |
Tires | |
Tire Type | Air tube |
Front Wheel Size | 29" |
Rear Wheel Size | 29" |
Water Protection | |
IPX5 Water jets (low pressure) | |
Other | |
Recommended Height | 155-175 cm (S frame), 172 - 186 cm (M frame), 185-200 cm (XL frame) |
Net Weight | 22 kg |
Load Capacity | 135 kg |
Warranty | 2 years on battery and motor, 3 years on frame, 1 year on non-consumable components |
-
Comfort & Design
Crafted from durable Aluminum 6061, the ECONO Gams MTB C5 boasts a lightweight yet robust frame. Its SR Suntour air fork with 120 mm travel ensures a plush ride, while the 29-inch wheels with 2.6-inch tires provide unmatched stability. Sleek, ergonomic geometry offers comfort for long adventures, blending style and functionality seamlessly.
-
Maintenance
Maintaining the ECONO Gams MTB C5 is no mountain to climb! Regularly check tire pressure, clean the frame after muddy adventures, and recharge the battery like you’d charge your phone. Hydraulic brakes might need occasional tweaks, but nothing a bike shop or a confident DIY-er can’t handle. With its robust build, this bike demands minimal upkeep – leaving you more time to conquer trails and less time fiddling with tools.
