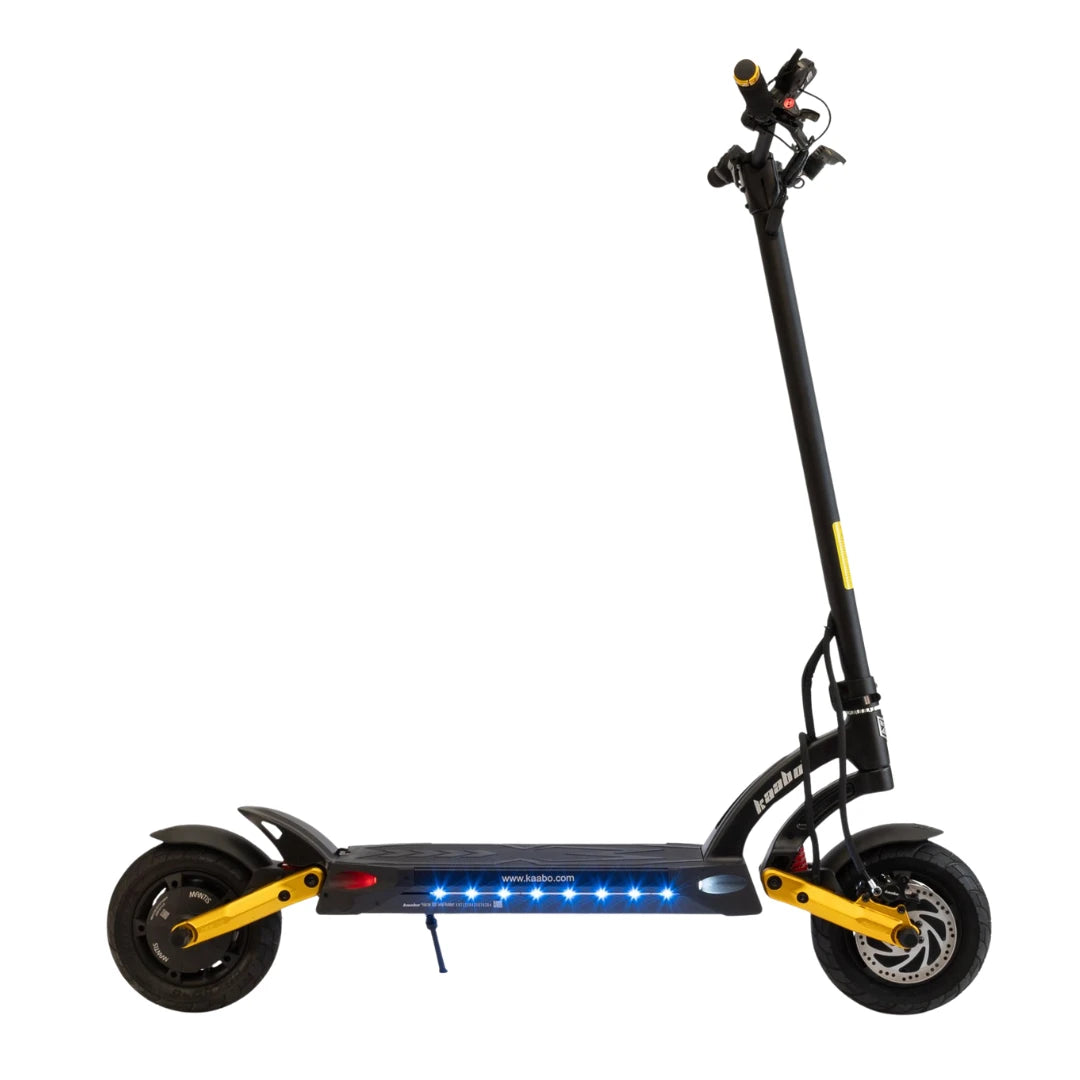

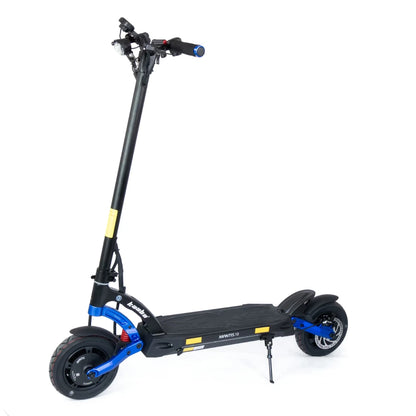

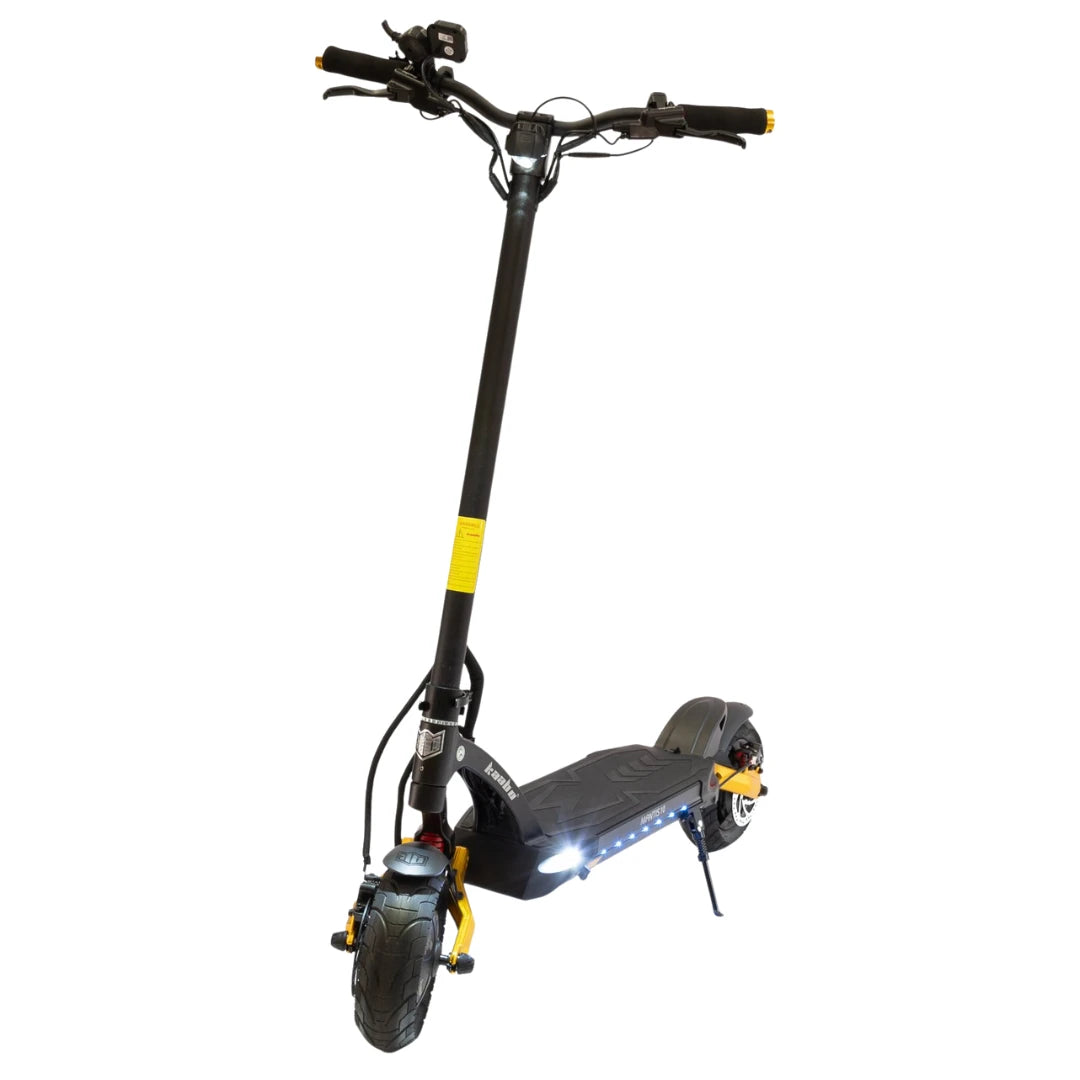

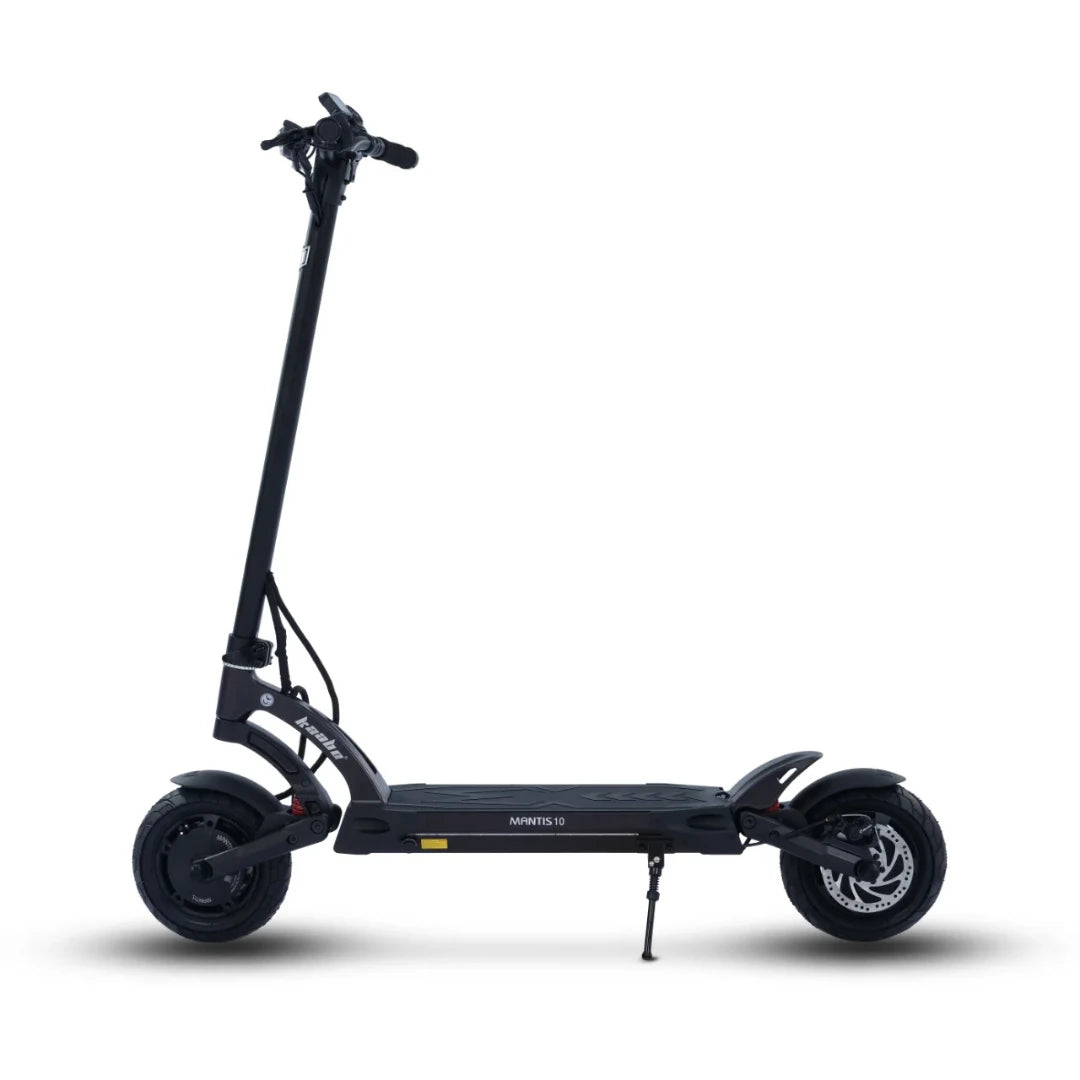

Off-road electric scooter
Kaabo Mantis 10 Dual Plus
Conquer Any Terrain.
Specifications of
Kaabo Mantis 10 Dual Plus
Motor | |
---|---|
Drivetrain | Dual drive |
Nominal Power | 2 x 1.000 W |
Maximum Power | 2 x 2.000 W |
Speed | |
Limited Speed | 25 km/h |
Speed Modes | Eco / Turbo, Single / Dual |
Maximum Incline Angle | 20° |
Battery | |
Maximum Range | 70 km |
Battery Capacity | 18.2 Ah |
Battery Voltage | 60V |
Charging Time | 9 hours |
Charger Type | 1x Standard charger |
Suspension | |
Front Suspension | Spring adjustable |
Rear Suspension | Spring adjustable |
Brakes | |

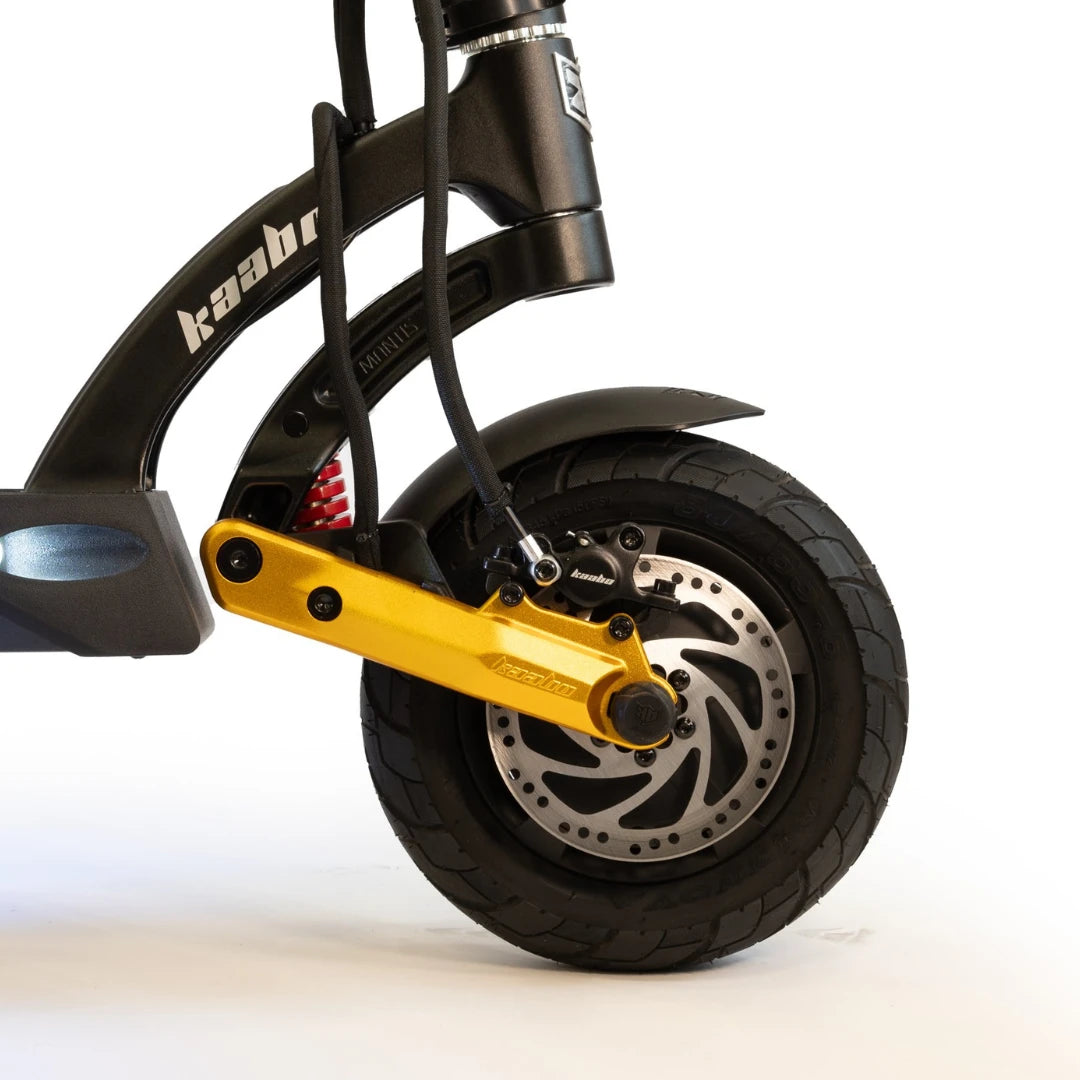

Front Brake | Hydraulic disc brake + EABS |
Rear Brake | Hydraulic disc brake + EABS |
Tires | |
Tire Type | Pneumatic |
Front Wheel Size | 10" |
Rear Wheel Size | 10" |
Lighting | |

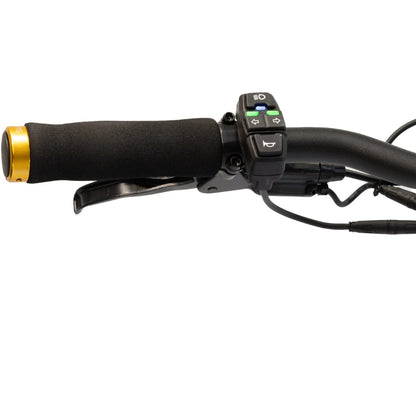

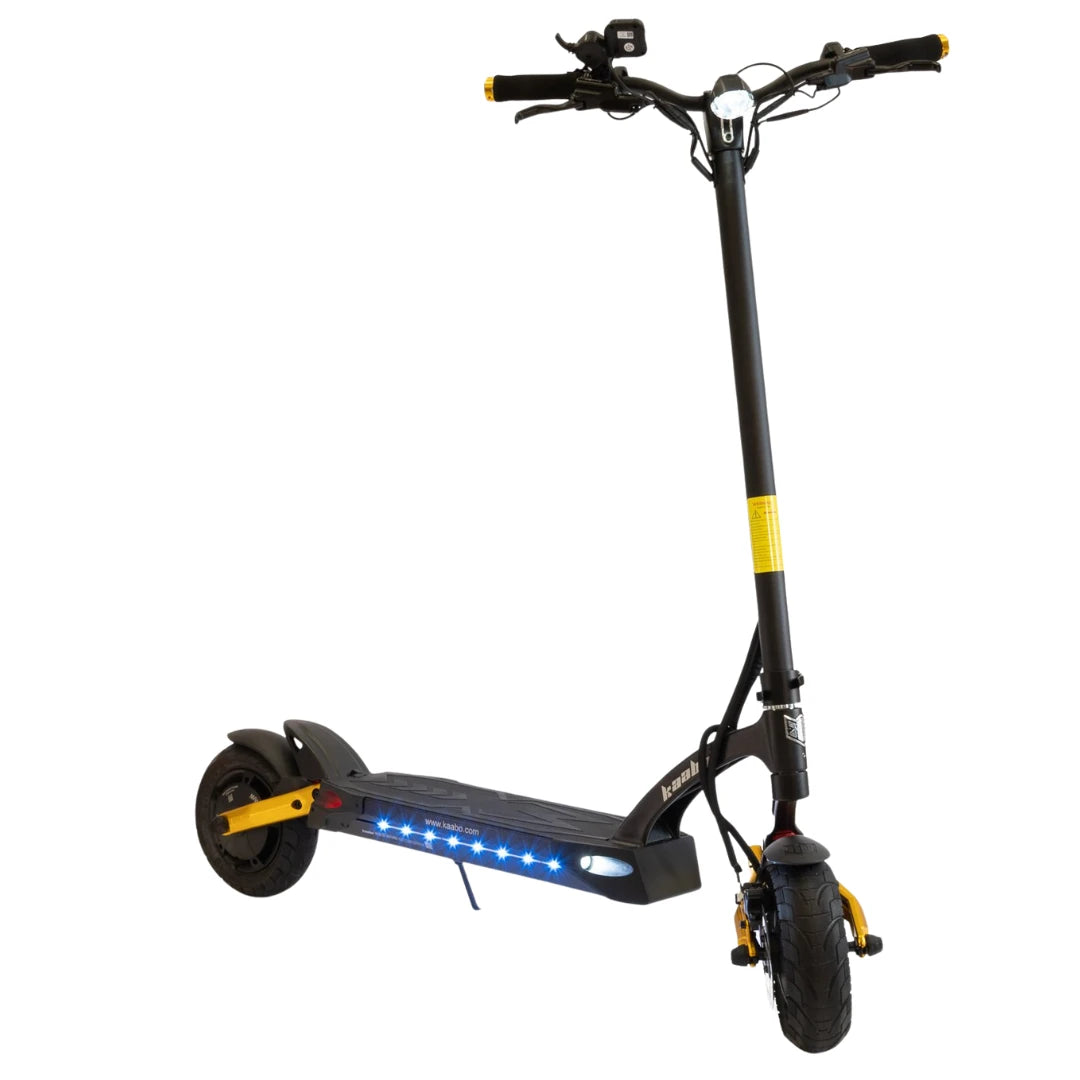

Front LED light, Rear lights, Turn Signals | |
Water Protection | |
IPX5 - Protected from low-pressure water spray | |
Dimensions | |
Length | 1267 mm |
Height | 1230 mm |
Width | 560 mm |

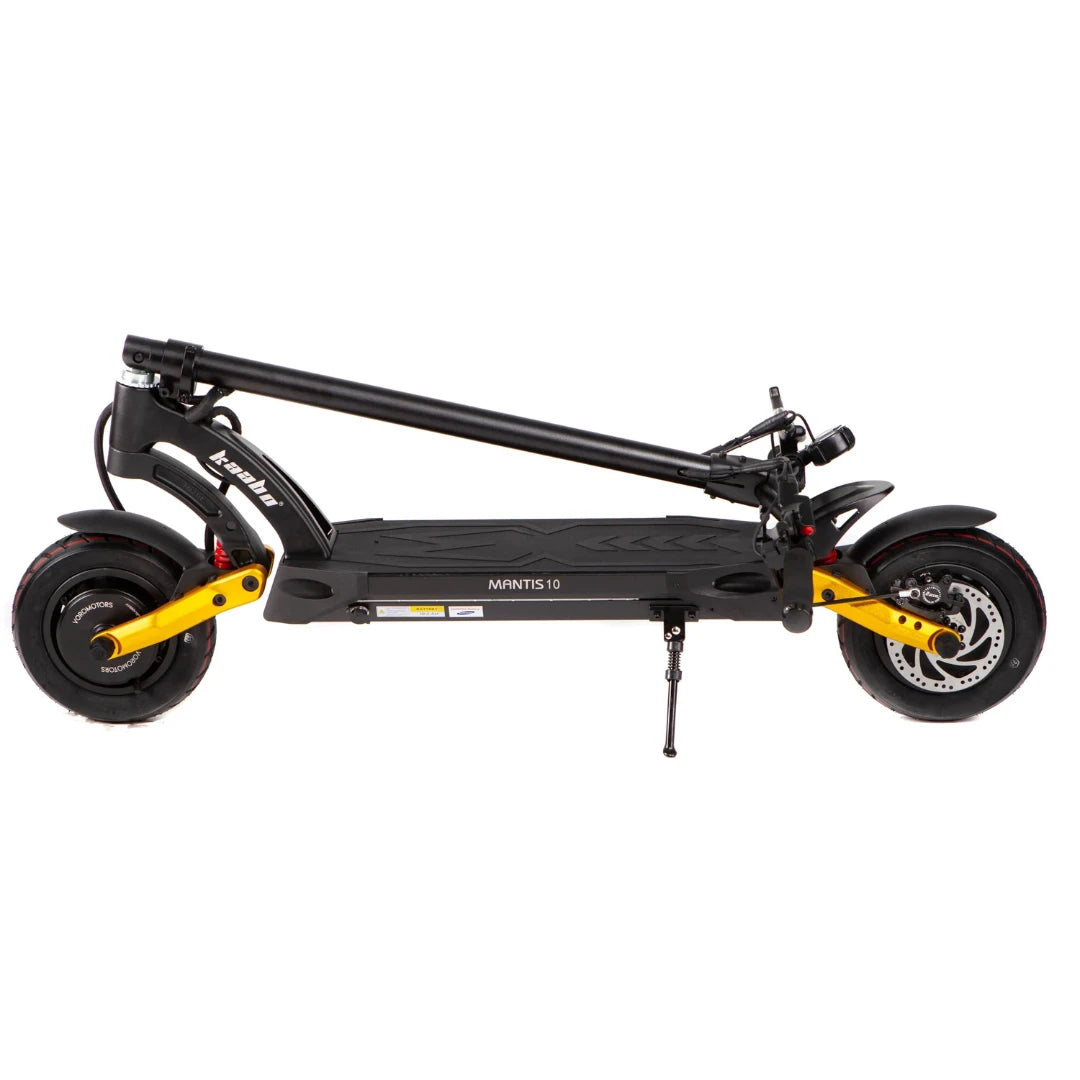

Folded | |
Length | 1267 mm |
Height | 480 mm |
Width | 560 mm |
Other | |
Recommended Height | 160-200 cm |
Net Weight | 29 kg |
Load Capacity | 140 kg |
Warranty | 1 year |
-
Comfort & Design

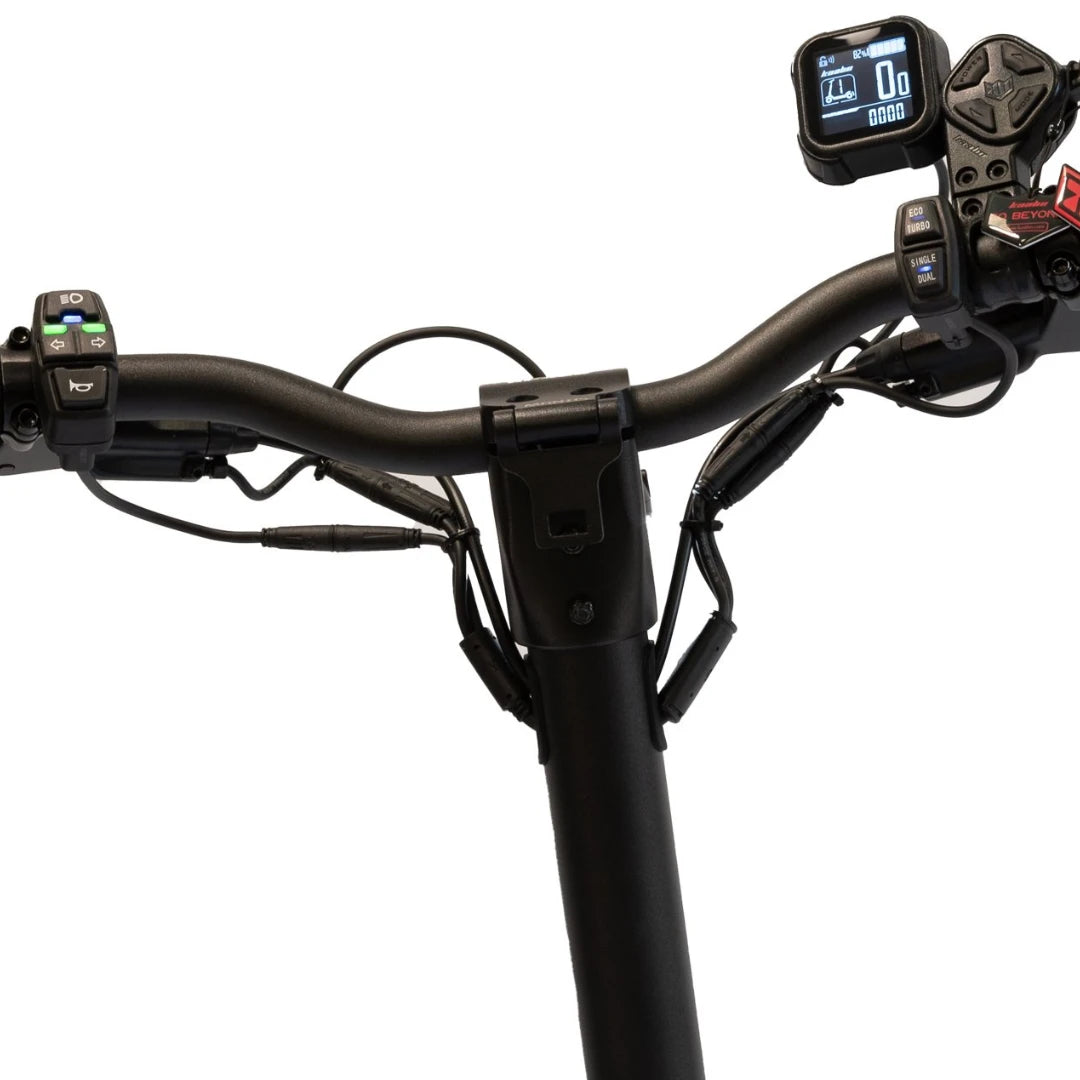

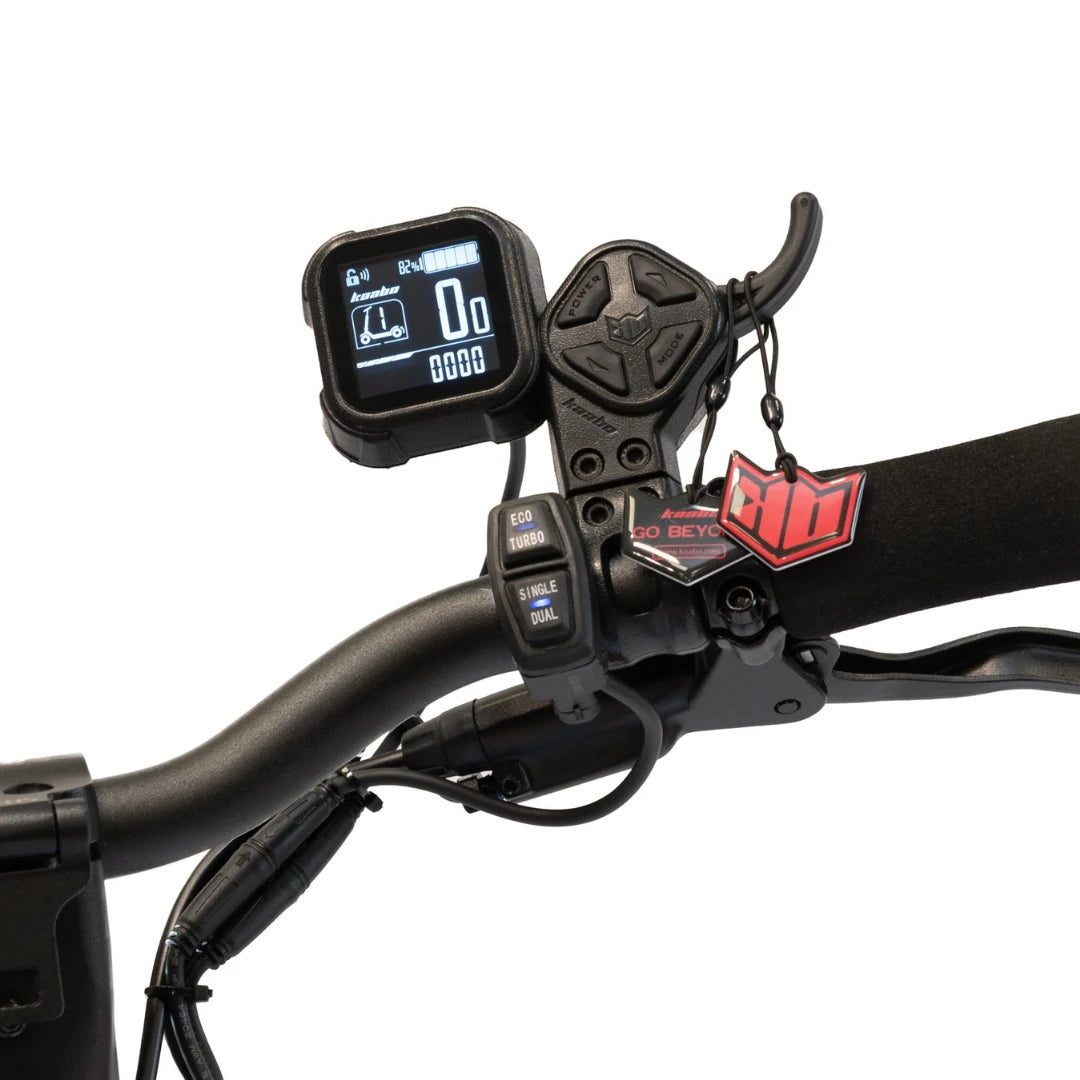

The Kaabo Mantis 10 Dual PLUS delivers a superior ride experience through its advanced suspension and ergonomic design. It features a fully adjustable front and rear spring suspension system, which effectively absorbs shocks and vibrations from uneven terrain. The large 10x3.0-inch pneumatic tires further enhance comfort and provide excellent traction. The cockpit is upgraded with the new Kaabo wider display for clear visibility of telemetry and features an integrated NFC reader for secure, keyless operation.
-
Maintenance

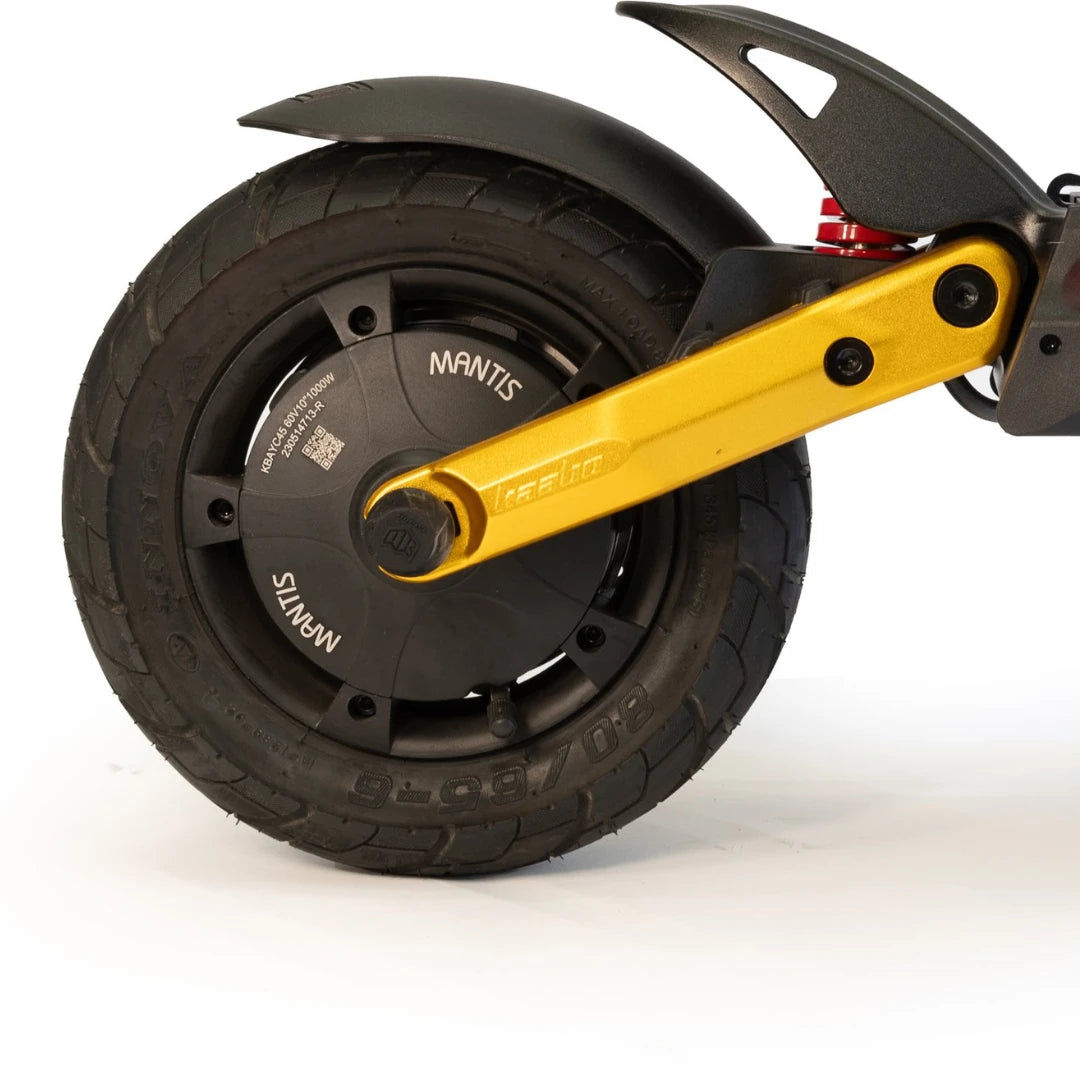

The Kaabo Mantis 10 Dual PLUS is designed for durability and straightforward maintenance. A key feature is its separable rims, which significantly simplify the process of tire changes or puncture repairs. Routine maintenance consists of standard checks, including monitoring tire pressure for optimal performance, ensuring all structural bolts remain tight, and periodically inspecting the hydraulic brake system. The use of high-quality components throughout the scooter minimizes the need for frequent service, ensuring reliability and longevity.
