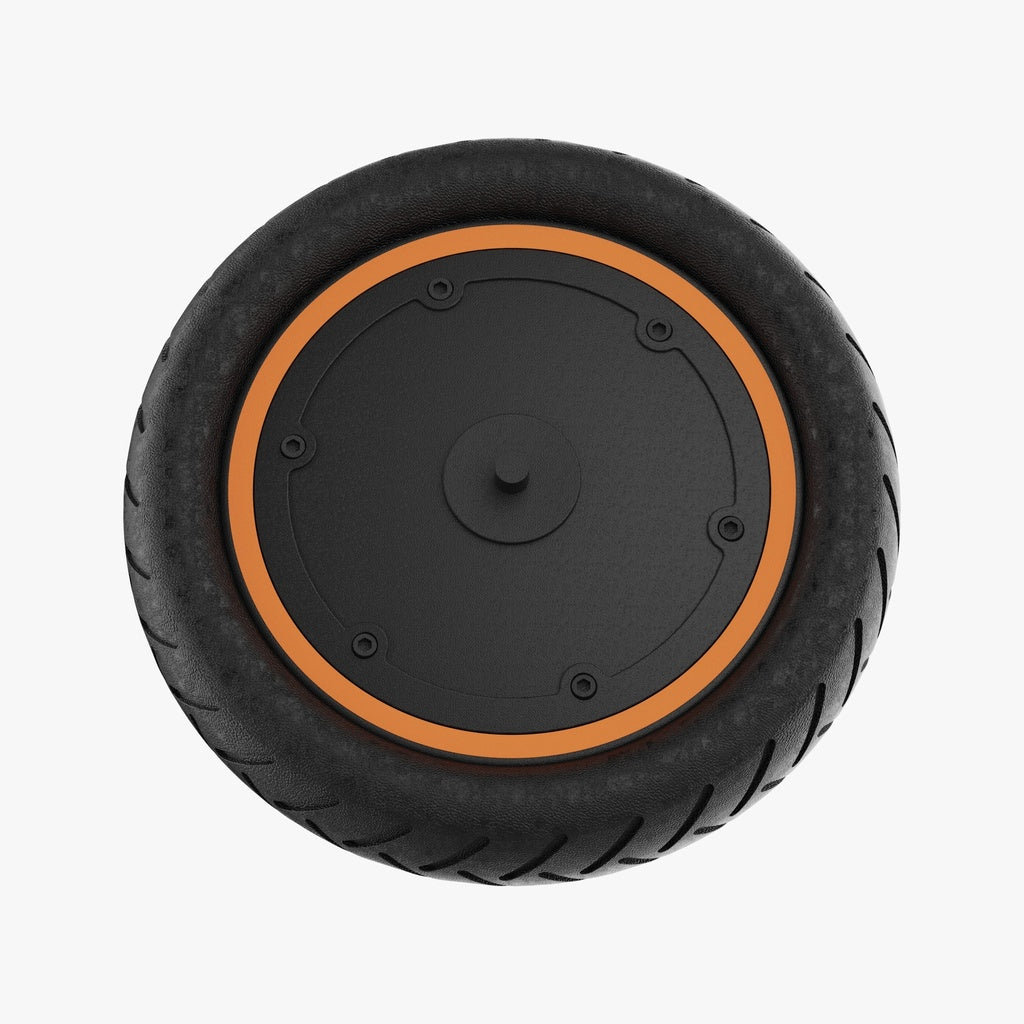

Motor for KingSong E1 with Tires
Looking to upgrade your KingSong E1 or replace its motor? This meticulously crafted motor comes with tires and ensures a seamless fit for your ride, combining outstanding quality and performance.
Specifications to Drive Your Curiosity:
- Tire Dimensions: 8.5 inches
- Pneumatic Tire: Outer tube Wanda 8.5 A5001 50/75-6.1
- Inner Tube: Wanda 8.5*2.0 with thick straight air nozzle
- Motor Phase Line: 1.5MM thickness, 700MM length, bullet head plug (solder connection)
- Hall Line: 5P with color-coded wires (red, green, blue, yellow, black), HY5P2.0 buckle plug
- Power and Voltage: Magnetic cylinder 108 iron core, magnetic steel 30*16, 350W, 37V
- Precision Frame Opening: 81.5MM
- Shaft Length: 120MM
- Tooth Length: 23*M12*1.5 at both ends
- Flat Width: 23*10MM on both sides, flat width 10MM
- Washers and Nut: 3MM flat washer, 3MM Q washer, flange nut
- Side Cover: Orangish 165C outline (width 6MM), fully black
- Outlet End: Half-open design
This part is compatible with the following models:
- KingSong E1
Enhance your KingSong E1 with this premium motor and experience dependable performance. Don’t just ride; glide effortlessly with a robust and reliable upgrade!
