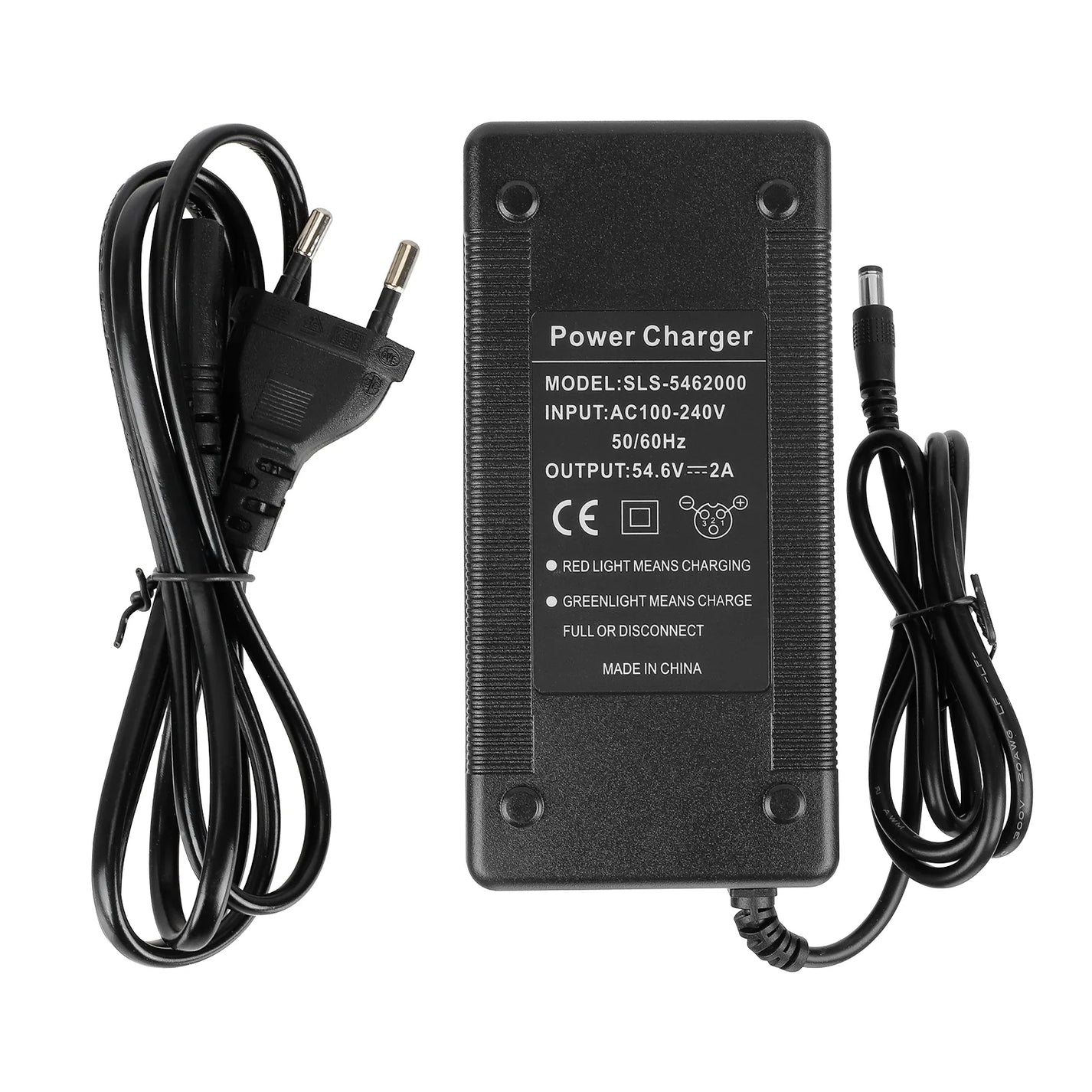

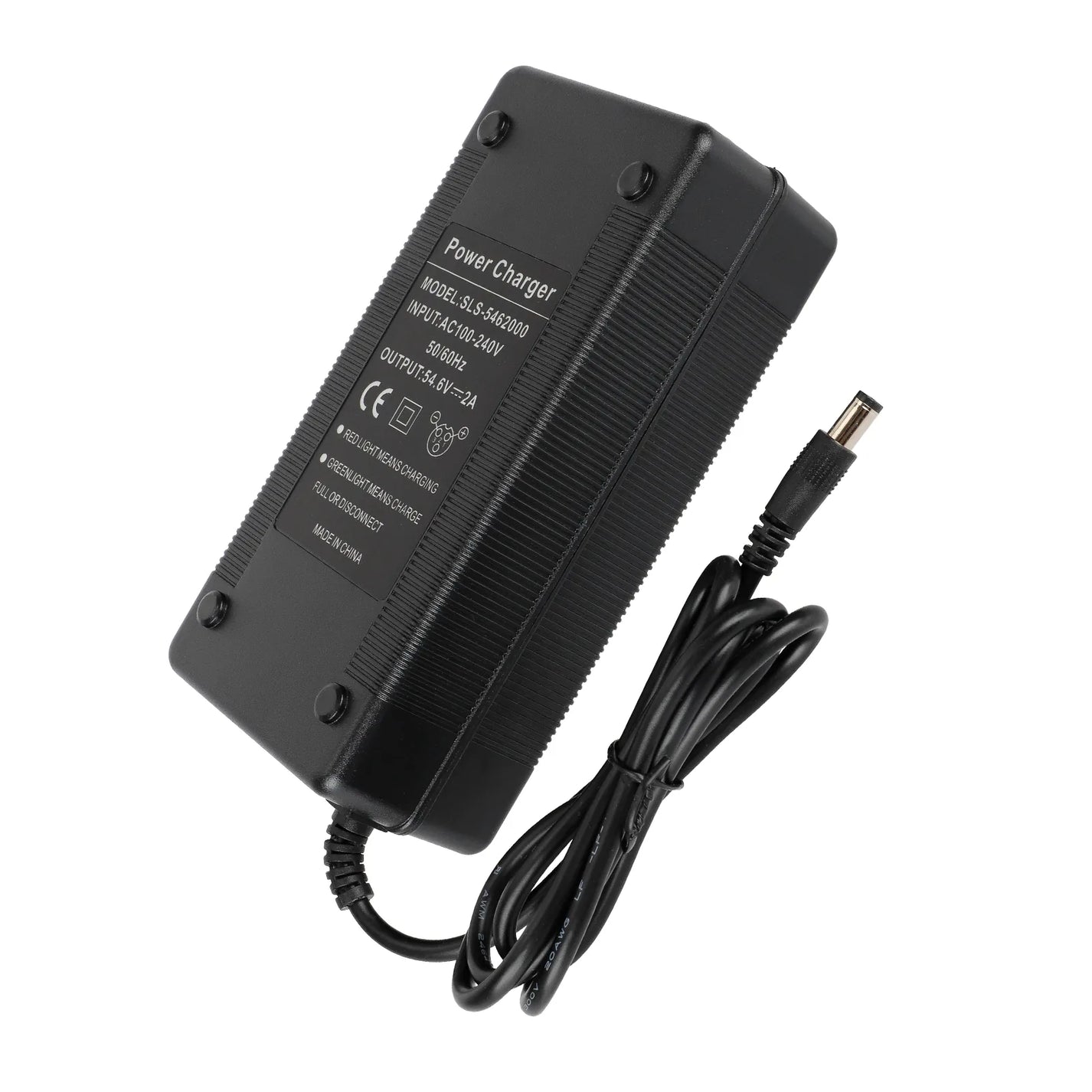

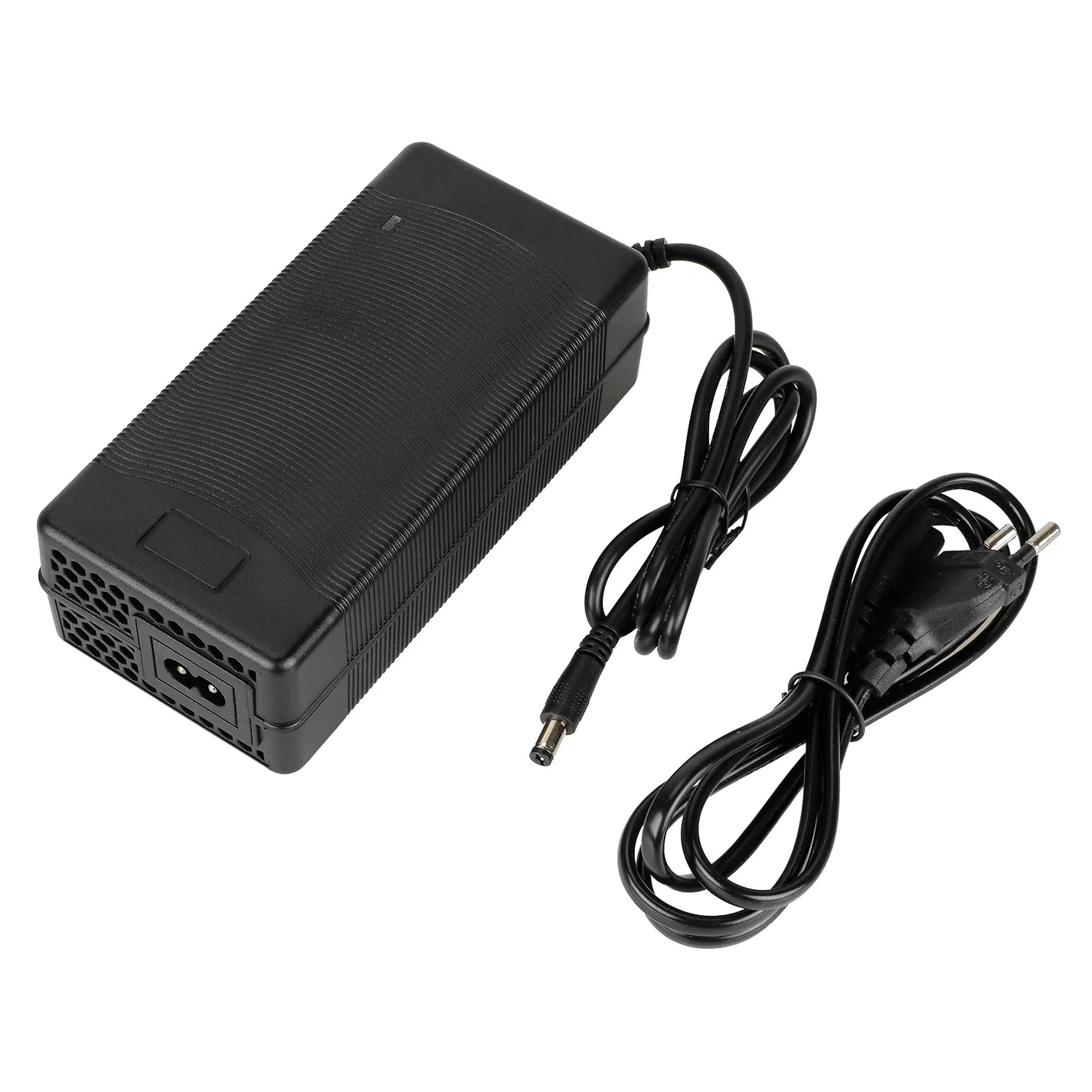

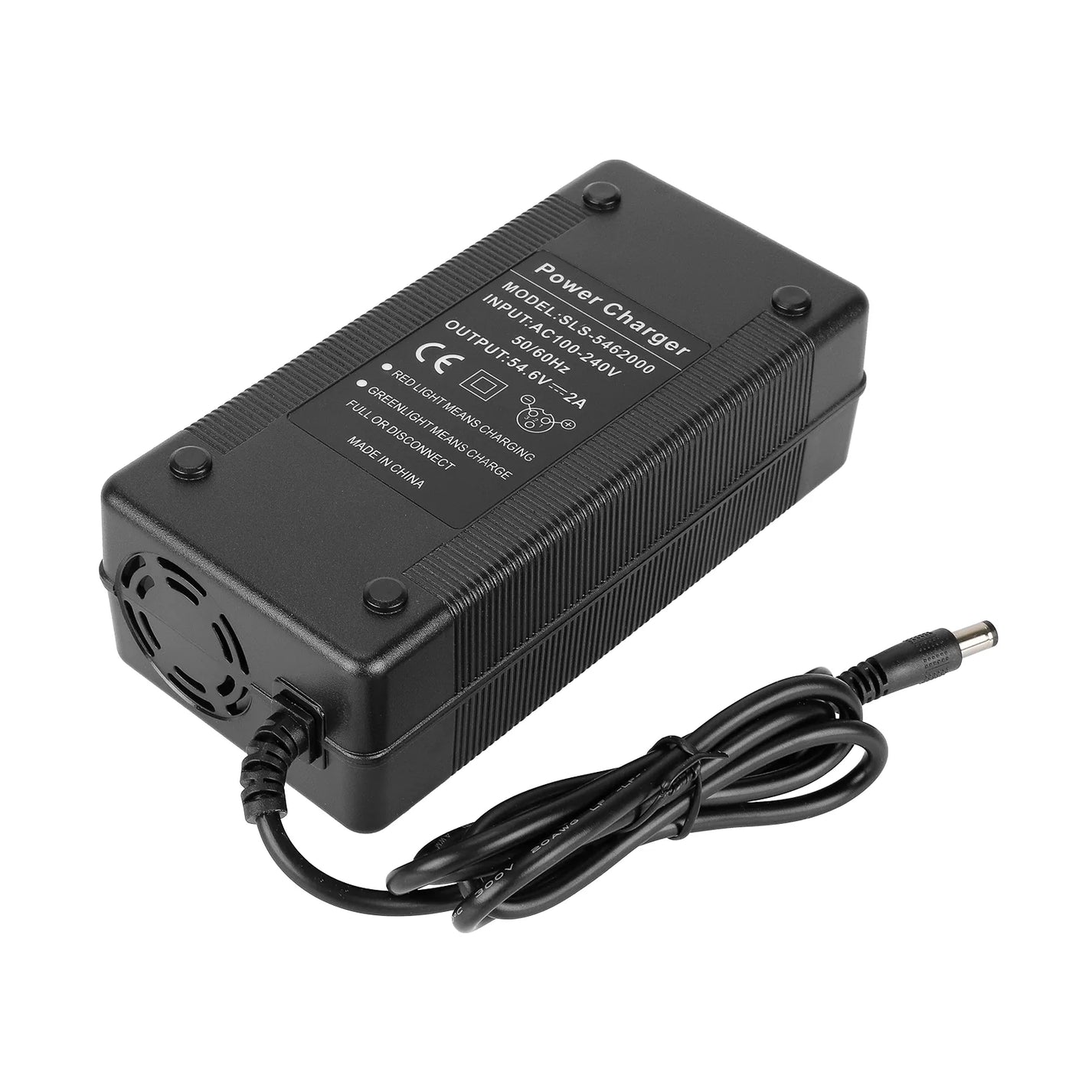

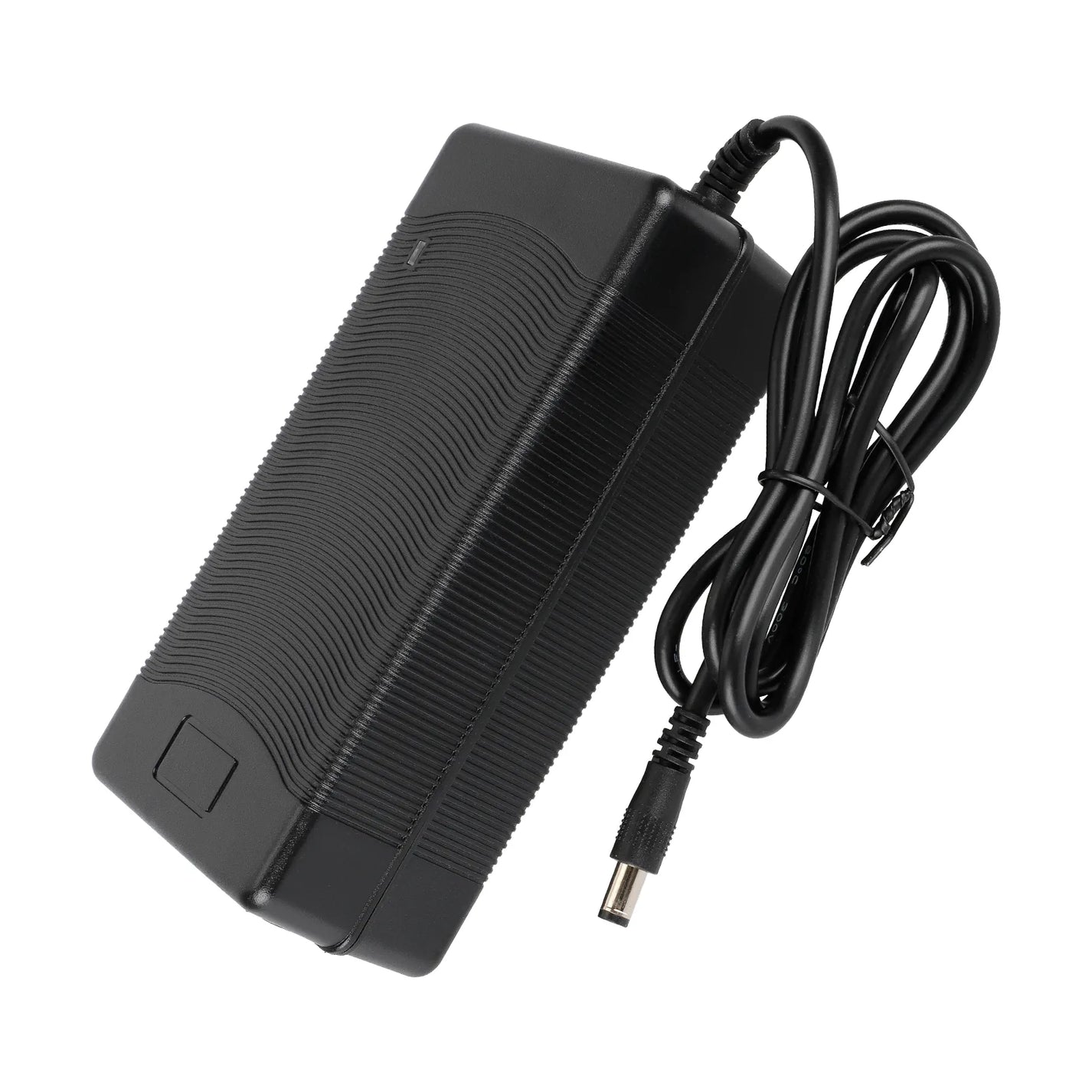

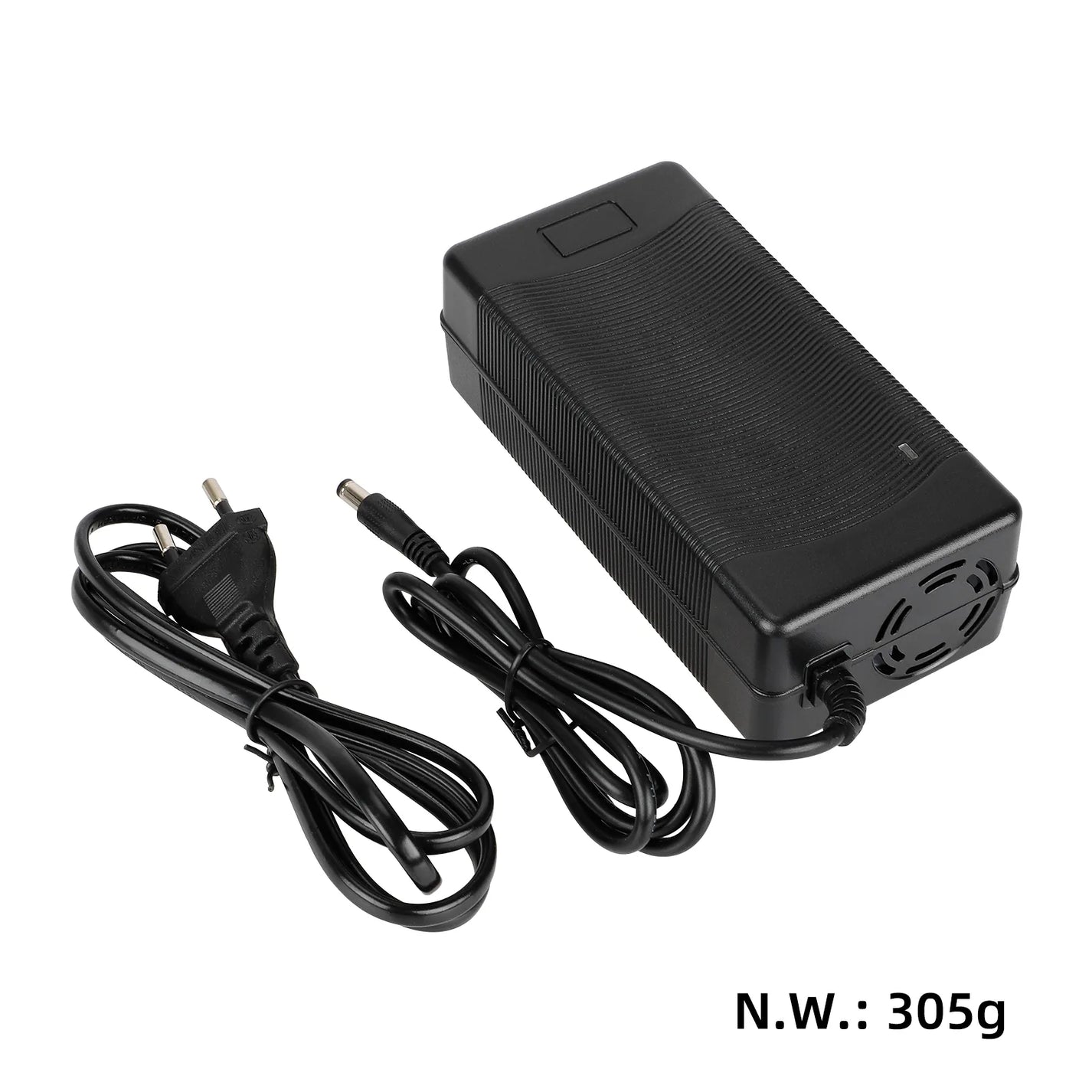

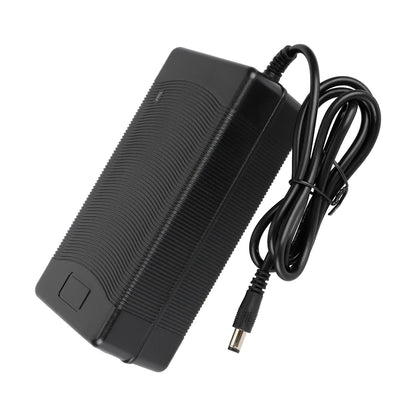

Charger 54.6 V 2 A for 48-V battery – DC 5.5 × 2.1 mm, EU-plug

The universal AC charger with an output voltage of 54.6 V and a current of 2 A is designed for charging 48 V lithium-ion battery packs that require a charging voltage of 54.6 V. It is equipped with a standard DC 5.5 × 2.1 mm coaxial connector and a detachable power cable with a plug for European power outlets.

Key features and operation

The charger operates according to the standard charging procedure for lithium accumulators. The built-in two-color LED indicator light allows for easy monitoring of the charging status:

• Red light: battery is actively charging.
• Green light: battery is fully charged or the charger is not connected to the battery.

The charger's casing has ventilation slots for heat dissipation during operation and integrated feet on the bottom for stable placement on a flat surface.

Important warnings before purchase and compatibility

Before connecting and purchasing, it is mandatory to check the following four parameters of your device:

1. Nominal battery voltage: This charger is suitable exclusively for 48 V lithium battery packs with a final charging voltage of 54.6 V. Do not use it with batteries of different nominal voltage (e.g., 36 V or 52 V) or different chemical composition (e.g., lead-acid batteries).
2. Connector dimension: The output plug is a round DC coaxial connector with an outer diameter of 5.5 mm and an inner diameter of 2.1 mm (DC5521).
3. Connector polarity: The polarity is positive on the inner contact and negative on the outer sleeve (center-positive: + inside / - outside), as indicated on the charger's label.
4. Charging current: The output current of 2 A must match the specifications of the battery and charging port.

Technical data

Instructions for safe use

• First, connect the charger to the charging port of the switched-off vehicle or battery, then insert the power plug into the electrical outlet.
• After charging is complete (when the green light illuminates), first unplug the charger from the mains and then from the vehicle.
• Perform charging in a dry, ventilated place, away from flammable materials and heat sources.
• Do not open the charger and do not expose it to moisture or water.

Package contents

• 1× Charger 54.6 V 2 A with integrated DC 5.5 × 2.1 mm cable
• 1× AC power cable with EU plug
