Thumb throttle for Xiaomi Elite – black and gray

Thumb throttle for Xiaomi Elite – black and gray

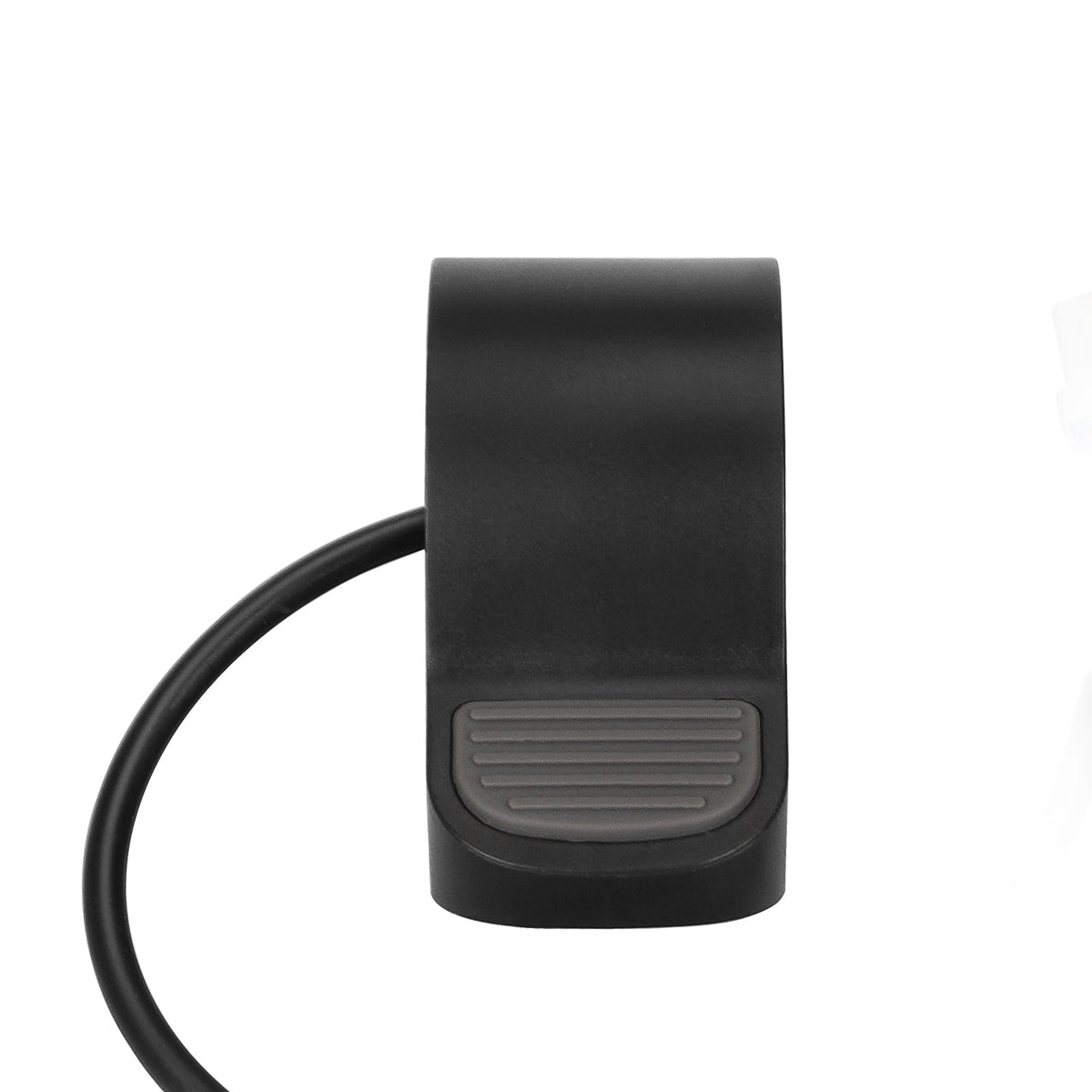

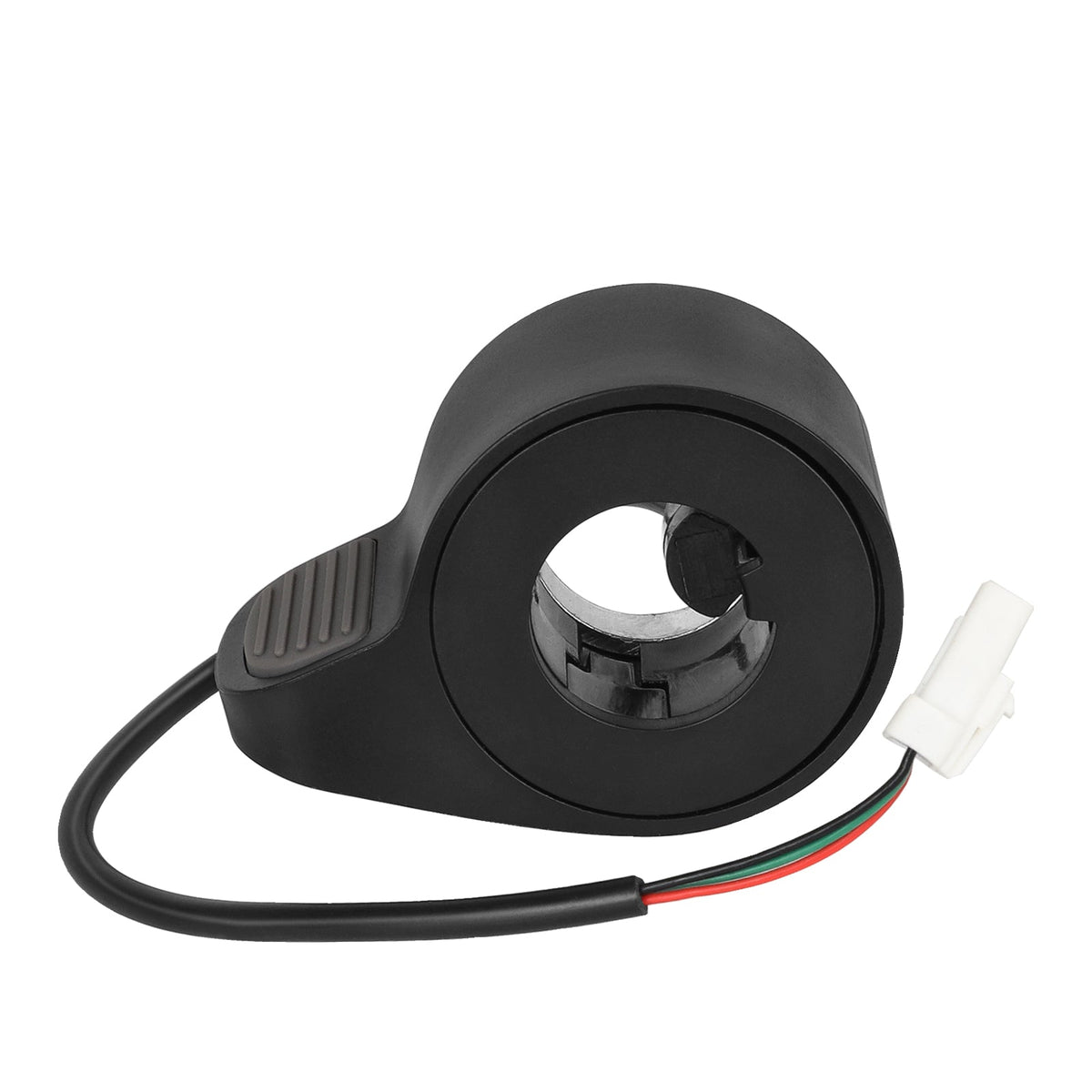

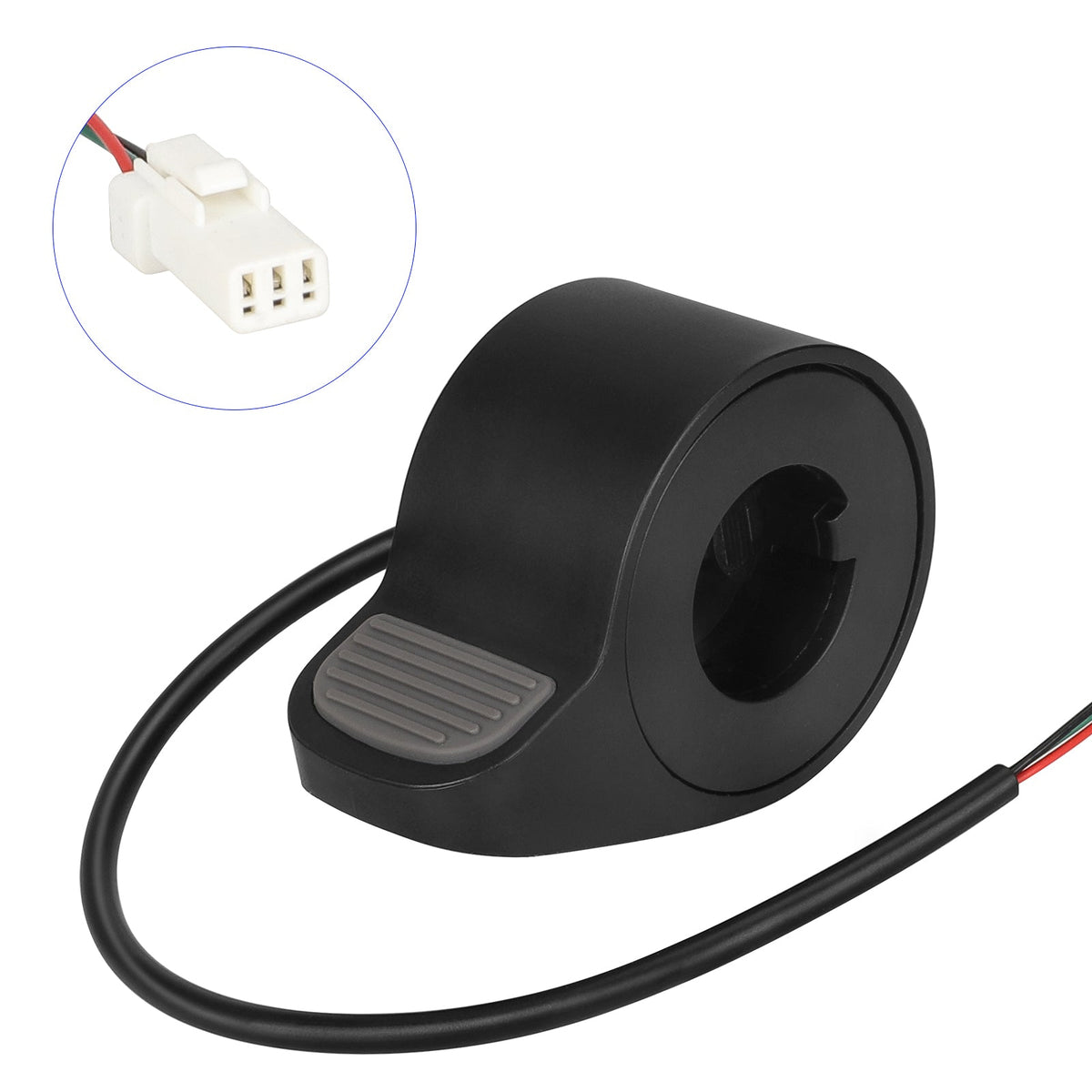

The Xiaomi Elite thumb throttle has a black round housing and a gray textured paddle. Its three-wire cable ends in a white latched connector. Compare the contact positions with the old throttle.

Features and dimensions

• Design: Black throttle with a gray textured thumb surface.
• Connector and wires: White connector with a two-row housing and three wires: red, green and black.

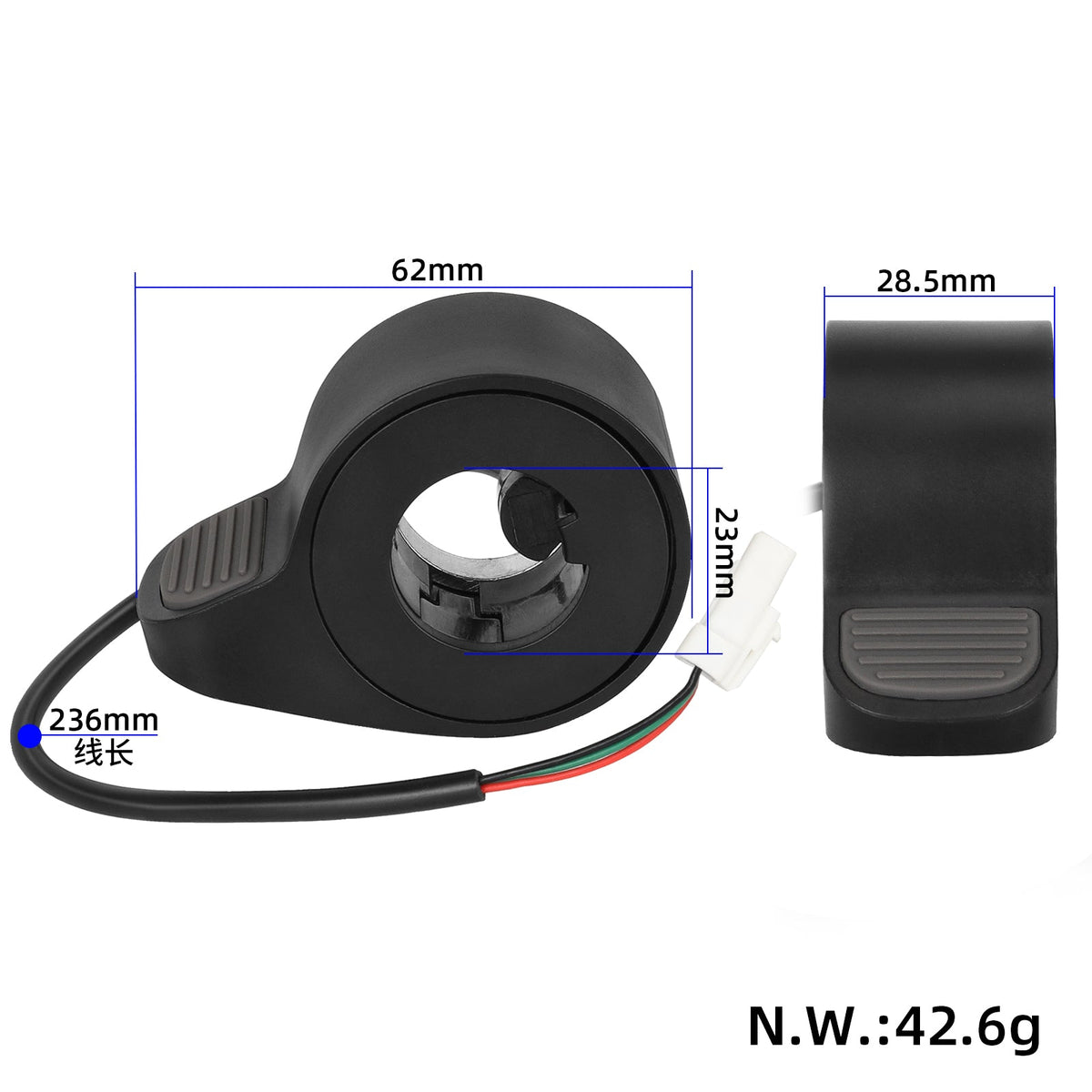

• Approximate dimensions: 62 mm throttle width; 28.5 mm housing thickness.

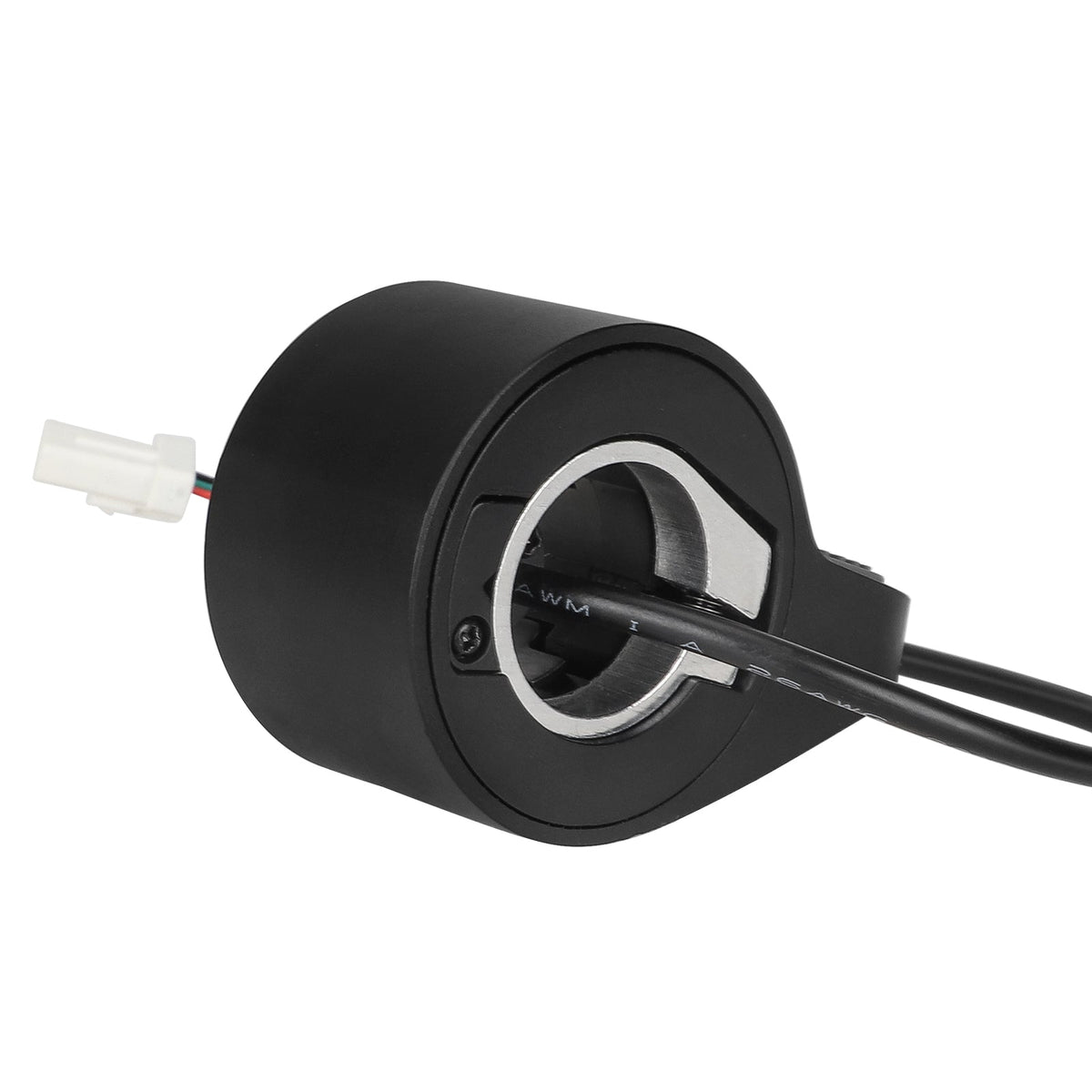

• Approximate clamp diameter: 23 mm, as shown.
• Approximate cable length: 236 mm.
• Vehicle model: Xiaomi Elite.

Fitment

For the appropriate Xiaomi Elite version with the same white connector, pin assignment and clamp. Compare the connector and wire arrangement; the three wire colors alone do not prove the pinout. Do not select another Xiaomi model solely because the housing looks similar.

Installation and use

Switch the vehicle off and disconnect power according to the service procedure before replacement. Position the throttle without obstructing paddle return, and route the cable without tension at full handlebar lock. Check throttle response and brake motor cut-off before riding.
